Aluminium windows offer unmatched durability, structural strength, and sleek aesthetic appeal for modern residential and commercial architecture. However, this popular building material suffers from a significant physical flaw. It has extremely high thermal conductivity. Cold exterior temperatures transfer directly through the continuous metal frame into your warm interior spaces. This rapid heat exchange lowers the interior frame surface temperature. Once it drops below the room's dew point, persistent condensation inevitably forms on the frame.
Today, modern fenestration relies on targeted thermal break technology as the standard for mitigating this moisture risk. It completely transforms how metal frames perform in extreme climates. In this guide, we will explore exactly how these insulating components function. You will learn how to evaluate different material options effectively. Finally, we will establish clear performance expectations you should set for your next building project.
Standard aluminium conducts heat and cold rapidly, acting as a thermal bridge that invites interior condensation.
Thermal break strips for aluminium windows mechanically separate the interior and exterior frames, drastically slowing thermal transfer.
Polyamide thermal strips are the industry standard due to their high structural integrity and matching coefficient of thermal expansion with aluminium.
While highly effective at reducing condensation risk, thermal breaks must be paired with proper installation, adequate glass (IGUs), and indoor humidity control to guarantee performance.
To appreciate modern framing solutions, we must first understand the physics of failure. Continuous aluminium profiles act as a highway for energy transfer. Industry experts call this phenomenon thermal bridging. The metal eagerly absorbs freezing outside air and pulls it indoors. At the same time, it sucks expensive indoor heat outside. This unbroken metal path guarantees poor energy performance.
The visible result is constant condensation. However, water droplets on a window frame represent more than just a nuisance. They create severe compound risks for the building structure. Continuous condensation leads to localized mold growth around the window perimeter. Black mold introduces serious tenant and occupant health complaints. Furthermore, standing moisture degrades surrounding interior finishes. Drywall becomes soft and crumbles. Expensive wood sills rot from the inside out.
Beyond structural decay, condensation acts as a glaring visual symptom of active energy loss. Your heating system must work harder to compensate for the cold air radiating from the windows. Higher HVAC operational costs directly follow. You pay more to heat a space while cold air bleeds through the frames. Building owners face mounting utility bills every winter.
We must define clear success criteria to solve this problem. The primary goal is simple but crucial. We must raise the interior frame surface temperature above the indoor dew point under standard winter conditions. If the frame stays warm, airborne water vapor cannot turn into liquid. Achieving this goal requires physically interrupting the metal bridge.
Engineers developed a brilliant manufacturing process to stop thermal bridging. They stop treating the window frame as a single piece of metal. Instead, they physically decouple the frame. The aluminium extrusion gets split into distinct exterior and interior halves during manufacturing. These two halves never actually touch each other in the final product.
Once separated, manufacturers must reconnect the halves without restoring the thermal bridge. They achieve this by inserting a specialized barrier between them. Factories roll a rigid non-metallic strip into a dedicated channel on both aluminium extrusions. Heavy machinery then crimps the metal tightly around the strip. This creates a secure composite profile. The Thermal Break Strips For Aluminium Windows serve as the critical insulating core holding the window together.
This barrier completely alters how the window handles temperature differences. It shifts the dew point away from the interior surface. The strip has incredibly low thermal conductivity. It aggressively blocks the cold from moving inward. The freezing temperatures remain trapped on the outside aluminium shell.
Meanwhile, the inside frame absorbs the ambient heat from the room. Because the cold cannot bridge the gap, the interior metal stays comfortably warm. It remains much closer to room temperature. Moisture vapor in the air hits the warm frame and stays a gas. By controlling the surface temperature, the thermal break effectively prevents liquid condensation from forming.
Not all thermal breaks offer the same performance or longevity. The industry relies primarily on two distinct solution categories. Understanding their differences helps you specify the right system for your commercial or residential project.
Historically, manufacturers used the Pour-and-Debridge (P&D) method. This older technique involves pouring liquid polyurethane into a U-shaped channel in the extrusion. Once the polyurethane cures and hardens, machinery cuts away the metal bridge at the bottom of the channel. The polyurethane block then holds the two halves together. While P&D improves insulation, it carries notable limitations. Polyurethane lacks the stiffness needed for modern high-load structural requirements. It struggles to support massive window panels.
Today, Thermal Break Strips For Aluminium Windows,Polyamide Thermal Strips represent the undisputed modern standard. Polyamide is a highly engineered thermoplastic. Manufacturers often reinforce it with 25% glass fiber for incredible strength.
Their dominance stems from thermal expansion alignment. Polyamide expands and contracts at the exact same rate as aluminium. When the summer sun bakes a window frame, both the metal and the strip swell together. When winter freezes the frame, they shrink evenly. This perfect alignment prevents internal shear stress. It eliminates the risk of frame warping over decades of seasonal changes.
Furthermore, polyamide delivers superior structural integrity. Modern architecture demands massive expanses of glass. These insulating glass units (IGUs) weigh hundreds of pounds. Polyamide strips possess the high load-bearing capacity necessary to support heavy double or triple-glazed units without failing.
Finally, we must consider finishing resilience. Aluminium windows usually require durable powder coating. The powder-coating process involves baking the assembled frames in massive ovens at extreme temperatures. Polyamide easily withstands this intense heat without melting or deforming. Conversely, traditional P&D polyurethane systems cannot survive powder-coating ovens. Manufacturers must finish P&D aluminium before assembly, limiting custom aesthetic options.
Feature | Pour-and-Debridge (Polyurethane) | Polyamide Thermal Strips (Glass Reinforced) |
|---|---|---|
Structural Load Capacity | Moderate; struggles with heavy triple glazing. | High; easily supports large, heavy IGUs. |
Thermal Expansion | Mismatched with aluminium; risks shear stress. | Matches aluminium exactly; prevents warping. |
Finishing Process | Must be painted/finished before assembly. | Can be powder-coated after full assembly. |
Longevity | Prone to shrinkage over decades. | Highly stable for the lifetime of the window. |
Selecting the right thermal break involves more than just picking a material. You must evaluate specific geometric and dimensional features. These details directly dictate the final outcomes for the building.
Strip width and depth serve as the primary drivers of thermal performance. There is a direct correlation between the width of the strip and the resulting U-value of the frame. Older or cheaper systems might use a narrow 14.8mm strip. This provides basic condensation resistance but falls short in extreme climates. High-performance systems utilize much wider strips, ranging from 24mm up to 35mm or more. Wider strips create a larger physical gap between the interior and exterior metal. They provide significantly better thermal separation.

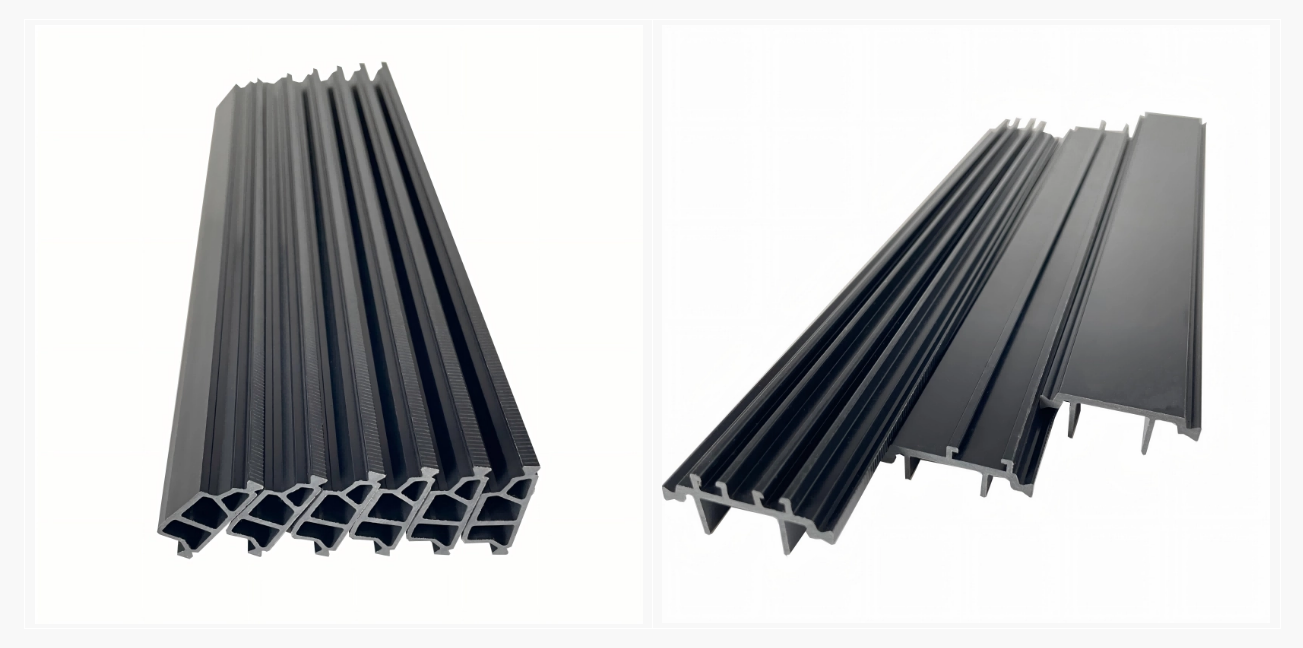

However, strip geometry matters just as much as raw width. Engineers design strips in several shapes. Basic windows use flat strips. Better systems use C-shaped strips to create structural rigidity. The highest-performing windows use multi-chambered, hollow thermal strips. These complex designs do something very important. They limit air convection within the empty profile gap. By stopping air from swirling around inside the frame chamber, multi-chambered designs further boost condensation resistance.
For elite energy standards, we must look at integration with foam. Even the best polyamide strip leaves an empty air cavity between the aluminium halves. To achieve ultra-low U-values required by Passivhaus standards or strict local building codes, manufacturers fill this gap. They insert co-extruded polyurethane foam directly inside the thermal break cavity. This foam blocks the last remaining bits of radiant and convective heat transfer. It guarantees exceptional frame performance in the harshest winter conditions.
We must establish trustworthiness by managing expectations realistically. Thermally broken windows drastically reduce the likelihood of condensation. However, they cannot suspend the fundamental laws of physics. Even the best frames can experience moisture if the surrounding environment fails. You must understand these implementation risks.
Indoor humidity overload remains the most common culprit for unexpected condensation. If indoor relative humidity sits excessively high, water will condense on almost anything. Several scenarios create this overload. Poor mechanical ventilation traps stale, wet air indoors. Newly plastered walls release massive amounts of water vapor for months. High occupancy in small spaces generates excess humidity through breathing and cooking. Under these extreme conditions, condensation can still form even on highly insulated, thermally broken frames.
You must also recognize the glazing weak point. A high-performance frame is entirely useless if paired with cheap glass. The window acts as a complete system. If you install low-performance single glazing, the glass itself will sweat profusely. Furthermore, standard aluminium spacer bars inside double glazing conduct cold rapidly. You must specify warm-edge spacer bars to prevent condensation around the very edge of the glass.
Finally, installation flaws can ruin the best engineering. Consider these critical site failures:
Poor Perimeter Sealing: Drafts bypass the frame entirely if caulking fails.
Missing Flashing: Water enters the wall cavity, cooling the frame from the outside in.
Improper Shimming: Uninsulated gaps between the window and the rough opening allow cold air to bypass the window's thermal break.
Thermal Bypasses: Metal sill plates or fasteners that bridge the gap from outside to inside will conduct cold directly to the interior trim.
Navigating the window procurement process requires clear shortlisting logic. You need a systematic approach to ensure you buy the right product for your specific needs.
First, define your climate requirements clearly. Match the width of the thermal break to the severity of your local climate zone. Mild coastal climates might only need a standard 14.8mm break. Harsh northern climates with freezing winters demand 24mm or 35mm breaks. Over-specifying wastes money, but under-specifying guarantees condensation.
Next, always verify compliance certifications. Do not rely on marketing promises. Look for tested NFRC (National Fenestration Rating Council) labels or equivalent regional European ratings. These independent labs prove the actual U-factor of the entire assembly. More importantly, check the Condensation Resistance (CR) scores. A higher CR score means the window specifically resists moisture formation better than its competitors.
Finally, focus on supplier qualification. You should ask manufacturers specific questions about their assembly quality. Inquire about their crimping process. Ask if they perform shear testing to ensure the polyamide strip will not slip under wind load. Confirm their polyamide sourcing to ensure they use glass-fiber reinforced materials. Always check the warranty coverage against thermal shear or frame deformation over time.
Specifying thermal break strips is a strict non-negotiable requirement for any modern aluminium window installation. They serve as the primary defense against thermal bridging. By utilizing these specialized barriers, you prevent destructive condensation, protect surrounding building materials, and ensure strict energy compliance. Upgrading to high-quality polyamide ensures your windows remain structurally sound and visually pristine for decades.
Do not leave your building's performance to chance. Before finalizing any purchase, request comprehensive U-value reports from your window supplier. Ask them to provide thermal modeling, such as THERM software simulations, to prove the frame will perform in your specific climate. Take action today by prioritizing certified, multi-chambered thermal break systems for your next architectural project.
A: No, they are safely housed within the internal chamber of the window profile. The manufacturer seals them between the interior and exterior metal extrusions. They remain generally concealed by the sash or frame structure once the window is fully installed in the wall.
A: High-quality, glass-fiber reinforced polyamide strips are incredibly durable. They are designed to last the lifetime of the window. You can typically expect them to perform for 30 to 50+ years without degrading, shrinking, or losing their structural integrity.
A: While wider strips significantly improve condensation resistance, they cannot suspend physics. A complete system approach is required to guarantee a condensation-free surface. This includes specifying warm-edge spacers, utilizing low-E insulated glazing, and maintaining proper room ventilation to manage indoor humidity levels.
