Traditional aluminium fenestration possesses a fundamental flaw that engineers and builders have battled for decades: exceptionally high thermal conductivity. In cold climates, this characteristic makes standard aluminium frames highly susceptible to interior condensation. When warm, moist indoor air collides with a freezing metal frame, the surface temperature plummets below the dew point. This instantly turns vapor into liquid water.
Unmitigated condensation on window frames is far more than a minor visual nuisance. It leads to localized mold growth, severe degradation of interior drywall, and compromised indoor air quality. Left unchecked, this moisture accumulation results in costly remediation projects, structural rot within wall cavities, and failed building inspections. Managing the temperature of the interior frame surface dictates the longevity of the entire building envelope.
The industry-standard engineering solution to this thermal bridging crisis relies on Thermal Break Strips. This technical guide explores how these structural insulators manipulate the dew point, which materials deliver superior performance, and how to properly specify Thermal Break Strips for Aluminium Windows in high-performance construction projects.
Dew Point Management: Thermal break strips prevent interior frame surfaces from reaching the dew point by physically separating the cold exterior aluminium profile from the warm interior profile.
Material Superiority: Polyamide 66 (PA66) reinforced with fiberglass is the current industry standard, offering a thermal conductivity up to 500 times lower than standard aluminium while matching its structural expansion rates.
Holistic System Dependency: A thermal break strip is only effective if paired with appropriate low-E double or triple glazing and warm-edge spacer bars; failure in one component compromises the entire window assembly.
Measurable Performance: Proper specification requires evaluating the Condensation Resistance Factor (CRF) and overall U-value improvements, rather than relying on generic "thermally broken" marketing claims.
Condensation forms under very specific, calculable conditions. It requires a temperature differential between the indoor and outdoor environments, combined with specific indoor relative humidity levels. When the surface temperature of a window frame drops below the dew point of the adjacent indoor air, moisture condenses out of the air. It then accumulates on the metal. Preventing condensation requires keeping the interior frame surface temperature above this critical dew point threshold, regardless of exterior freezing conditions. We see this constantly on job sites where HVAC systems push warm air against poorly specified glazing.
To understand the severity, consider a standard winter scenario. If the indoor temperature is 20°C (68°F) with 40% relative humidity, the dew point is approximately 6°C (42.8°F). If the exterior temperature drops below freezing, a solid aluminium frame will easily drop below 6°C on the inside. Water will immediately pool on the sill.
A continuous, non-thermally isolated aluminium frame acts as a highly efficient thermal bridge. Aluminium conducts heat rapidly. During winter, a solid aluminium frame pulls heat from the interior space and transfers it directly to the cold exterior. This rapid heat loss leaves the interior surface of the frame freezing cold. Because the metal offers zero thermal resistance, the interior face of the extrusion easily reaches the dew point. This triggers immediate and continuous condensation along the window perimeter.
We measure this heat transfer using thermal conductivity values. Standard aluminium has a thermal conductivity of roughly 160 W/m·K. This means heat flows through it almost unimpeded. Without a physical interruption in the metal, you are essentially leaving a hole in your building's thermal envelope.
Specifying non-thermally broken frames in modern construction carries severe long-term structural and financial risks. Continuous moisture exposure leads to structural rot in surrounding wall cavities. It destroys insulation and framing materials. It frequently voids manufacturer warranties on adjacent interior finishes. You will also face persistent tenant complaints regarding mold and dampness.
Furthermore, standard aluminium frames fail to comply with modern energy codes. ASHRAE standards and Part L building regulations demand strict thermal performance. Failing to meet these renders the building non-compliant and legally vulnerable. Remediation often requires full frame tear-outs, which disrupts occupants and destroys project margins.
A "thermal break" is a mechanical concept involving the placement of a low-conductivity barrier within an extruded metal profile. The goal is to interrupt the direct pathway of heat transfer. By splitting a solid aluminium frame into two distinct pieces and connecting them with a highly insulative material, the thermal bridge is effectively severed. This barrier stops the rapid migration of thermal energy. It keeps the interior frame warm and the exterior frame cold.
Think of it like the handle of a cast-iron skillet. If the handle is solid iron, it burns your hand. If you insert a wooden or silicone section into the handle, the heat stops traveling. The thermal break performs this exact function for your building facade.
In modern manufacturing, thermal break strips are mechanically integrated into the window frame. The process begins with two separate aluminium extrusions: an inner profile and an outer profile. These extrusions feature specialized cavities. The thermal break strips are inserted into these cavities. Heavy machinery then rolls and crimps the aluminium tightly around the strips.
This mechanical lock creates a unified, structural composite frame. It maintains a continuous, insulated barrier against heat flow. The knurling process before insertion ensures the strip grips the metal tightly. This prevents longitudinal shear when the frame expands and contracts under solar load.
The material composition of the thermal break dictates both its insulative capacity and its structural longevity. We evaluate two primary materials in the field.

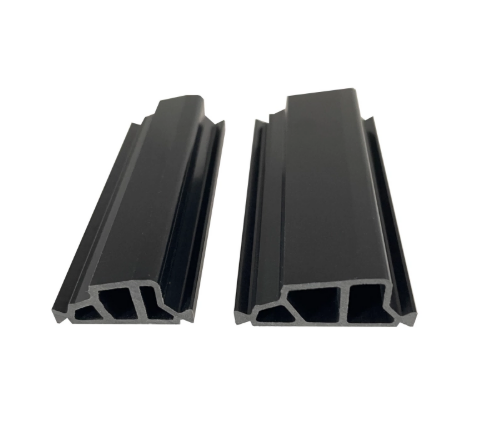

Polyamide (PA) Strips: Polyamide 66, typically reinforced with 25% fiberglass (PA66 GF25), represents the pinnacle of thermal break technology. It boasts a high melting point. This allows the assembled frame to withstand the intense heat of powder-coating ovens without deforming. PA66 shares an almost identical coefficient of thermal expansion with aluminium. This ensures the frame does not warp or shear during extreme temperature fluctuations.
Polyurethane (Pour and Debridge): This older method involves pouring liquid polyurethane into a channel within a solid aluminium extrusion. The manufacturer then mills away the metal bottom of the channel (debridging) to leave only the urethane connecting the two sides. While thermally effective, polyurethane is susceptible to structural shrinkage over time. It lacks the robust shear strength of fiberglass-reinforced polyamide. It also cannot endure high-temperature powder coating after assembly.
Understanding the physical differences requires a direct comparison of the structural blueprints. We look at specific performance metrics to validate the design.
Feature | Standard Aluminium Profile | Thermally Broken Profile (PA66) |
|---|---|---|
Physical Structure | Single, continuous metal extrusion | Two separate extrusions joined by polyamide strips |
Thermal Bridging Pathway | Direct, uninterrupted heat transfer | Severed by a low-conductivity barrier |
Interior Surface Temperature | Matches exterior temperature (highly prone to condensation) | Remains close to ambient room temperature |
Energy Code Compliance | Fails modern stringent standards | Exceeds ASHRAE and Passive House requirements |
Thermal Conductivity (W/m·K) | ~160.0 | ~0.3 (for the PA66 barrier) |
The Condensation Resistance Factor (CRF) is a standardized metric used to evaluate a window's ability to resist moisture formation. CRF ratings typically range from 30 to 80 or higher. A higher number indicates superior resistance to condensation. When specifying frames for cold climates or buildings with high indoor relative humidity, engineers must demand a high CRF.
Comparing these ratings ensures the selected thermal break geometry actually performs under the specific environmental loads of the project site. A CRF of 35 might survive a mild coastal winter. However, a hospital in a northern climate requires a CRF exceeding 65 to prevent condensation in high-humidity patient rooms.
The overall thermal transmittance of a window frame is measured by its U-value (Uf). Lowering the Uf requires optimizing the thermal break strip. Increasing the width of the polyamide strip directly reduces heat transfer. Advanced geometries trap air and block radiant heat loss. These include hollow multi-chambered strips, complex internal webs, and the addition of low-emissivity foils.
These engineered shapes dramatically lower the frame's U-value. They contribute to a highly efficient building envelope. For example, moving from a flat 14mm strip to a 34mm multi-chambered strip can cut the frame's heat loss in half. This directly impacts the sizing of the building's mechanical heating systems.
Splitting a solid, load-bearing metal frame into two pieces naturally invites engineering skepticism. However, high-quality polyamide strips are designed for structural composite action. The knurling and crimping process creates a mechanical bond that must pass rigorous shear strength testing.
Certified thermal break strips maintain the wind-load resistance and structural rigidity required for massive commercial curtain walls and oversized residential glazing. They prove that thermal isolation does not require sacrificing structural integrity. We regularly install 10-foot tall thermally broken sliding doors that withstand hurricane-force wind loads without deflection.
Beyond thermal management, inserting a non-metallic barrier into an aluminium frame provides significant acoustic benefits. Sound travels efficiently through dense, continuous materials like solid aluminium. The transition from high-density metal to low-density polyamide strips disrupts sound wave transmission.
This material change dampens structural vibrations. It significantly reduces decibel (dB) noise transfer from the exterior environment compared to standard, unbroken aluminium frames. In urban environments, this acoustic break is often just as valuable to the client as the thermal performance.
Building owners often seek cheaper alternatives to full window replacement. They turn to aftermarket thermal break tapes, adhesive foams, secondary glazing, or interior frame wraps. While these surface-level applications may slightly alter the tactile temperature of the frame, they face severe thermodynamic limitations.
They cannot alter the inherent structural thermal bridging of a solid aluminium extrusion. Heat will continue to bypass these superficial layers through the metal itself. It eventually reaches the dew point and causes hidden condensation beneath the retrofit materials. We often tear out these retrofits only to find extensive black mold hidden behind the adhesive foam.
True condensation mitigation requires factory-integrated thermal break strips. The mechanical separation of the interior and exterior profiles must occur at the extrusion and assembly level. Attempting superficial retrofits on non-thermally isolated windows is a temporary bandage. It fails to address the core physics of heat transfer.
The long-term cost-to-benefit ratio heavily favors replacing outdated frames with factory-engineered thermally broken systems. These permanently eliminate condensation risks and drastically reduce HVAC energy consumption. Doing it right the first time prevents tearing open drywall five years later.
The manufacturing process requires absolute precision. Improper knurling of the aluminium cavity or inadequate pressure during the crimping phase can lead to severe structural weakness. If the polyamide strip is misaligned, it can cause profile twisting or create microscopic gaps that allow thermal bypasses.
To mitigate this risk, architects must specify products from manufacturers that provide certified shear testing data. They must adhere to strict quality control tolerances during the rolling process. On-site, you can spot poor crimping if the inner and outer frames show uneven reveals or if the strip wiggles under pressure.
A thermally broken frame cannot compensate for poor glazing choices. A common specification error involves pairing high-end thermally broken aluminium frames with highly conductive aluminium spacer bars inside the insulated glass unit (IGU). This mismatch simply shifts the thermal bridge from the frame to the edge of the glass.
This results in perimeter glass condensation. Mitigate this by mandating warm-edge spacer bars and low-E coated glass. This ensures the entire window assembly performs cohesively. You must review the shop drawings to confirm the spacer bar aligns perfectly with the thermal break strip in the frame.
Thermal break strips are not one-size-fits-all. Under-specifying the depth of the thermal break leads to performance failures in extreme weather. A standard 14mm strip might suffice in mild, temperate climates. However, for projects facing extreme cold or aiming for Passive House certification, engineers must specify 32mm or wider multi-chambered strips.
Matching the strip width and complexity to the specific climate zone is mandatory for preventing winter condensation. Using a thin strip in a freezing climate is a guaranteed callback. The interior frame will still get cold enough to sweat.
A frequently overlooked vulnerability occurs during installation. Metal installation straps often anchor directly from the cold exterior profile to the interior wall framing. This completely bypasses the frame's internal thermal break. It creates a hidden thermal bridge, causing interstitial condensation behind the drywall.
The mitigation strategy requires isolating these brackets. Installers must use specialized thermal break tape or rigid non-conductive shims between the metal straps and the building structure. This maintains the integrity of the thermal envelope. We mandate this detail on every commercial install to prevent drywall rot at the window returns.
Thermal break strips are a fundamental engineering requirement for modern construction. Relying on continuous aluminium extrusions guarantees thermal bridging, interior condensation, and eventual structural degradation. By physically separating the interior and exterior profiles with fiberglass-reinforced polyamide, these strips manipulate the dew point and protect the building envelope from moisture damage.
When selecting fenestration systems, demand rigorous technical documentation. Scrutinize the specification sheets to confirm the use of PA66 GF25 material. Verify the exact width and geometry of the thermal break. Ensure the complete window assembly carries certified CRF and U-value ratings appropriate for your climate zone.
To ensure flawless execution on your next project, follow these actionable steps:
Audit your current window schedules to verify that all aluminium frames feature factory-integrated polyamide thermal breaks.
Consult with a structural engineer or fenestration specialist to calculate the required thermal break depth based on local climate data and interior humidity loads.
Request physical cross-section samples from manufacturers to visually inspect the crimping quality and strip geometry.
Require comprehensive thermal modeling reports for the entire window assembly before finalizing procurement.
Inspect the first window installation on-site to confirm that metal anchoring straps are properly isolated from the interior framing.
A: Yes, under extreme conditions. While highly resistant, if indoor relative humidity is excessively high and exterior temperatures drop to sub-zero levels, the interior surface can still reach the dew point. Thermal breaks manage heat transfer efficiently but cannot defy the laws of thermodynamics if indoor moisture is uncontrolled.
A: Fiberglass-reinforced Polyamide 66 (PA66 GF25) is the industry standard. It provides superior structural stability, excellent thermal resistance, and has a coefficient of thermal expansion that perfectly matches aluminium, preventing warping during temperature changes.
A: Thickness depends entirely on climate requirements. Strips typically range from 14mm for mild climates to over 40mm for extreme cold and Passive House standards. Wider strips provide greater thermal resistance and lower U-values.
A: Yes. Breaking the continuous metal path with a lower-density polyamide material dampens acoustic vibrations. This disruption slows noise transmission through the frame, noticeably lowering decibel penetration from the outside environment.
A: No. True thermal breaks must be integrated during the factory extrusion and roll-crimping process. Aftermarket tapes or surface foams offer only superficial insulation and fail to solve the core structural thermal bridging of a solid metal frame.
A: Regular aluminium windows use a single, continuous metal extrusion that conducts heat rapidly. Thermally broken windows feature a physical separation between the interior and exterior profiles, connected by a non-conductive strip that blocks heat transfer.
A: This is usually caused by uninsulated metal installation straps. If a metal bracket connects the cold exterior frame directly to the interior wall, it acts as a thermal bridge, bypassing the thermal break strip and causing hidden condensation behind the wall finish.
