Modern building envelopes face a fundamental engineering challenge. Highly conductive building materials, like aluminum and structural steel, easily bypass continuous insulation. This creates thermal bridges. These bridges severely compromise both energy efficiency and structural integrity. We must address this vulnerability to build sustainable structures.
Manufacturers embed thermal break strips as critical load-bearing insulators within these structural assemblies. They decouple interior and exterior temperature zones effectively. You cannot rely on cavity fill alone; you need a physical barrier between metal components.
For decision-makers, the stakes are exceptionally high. Proper integration dictates your compliance with stringent energy codes like ASHRAE 90.1 and IECC. It mitigates costly condensation damage and unlocks significant tax incentives. Furthermore, the insulation must consistently support necessary structural loads, including tension, torsion, and shear forces. You will learn how these insulators work, where they are applied, and how to evaluate the right solution for your next project.
Core Function: They isolate highly conductive materials to block heat transfer, fundamentally lowering U-values and improving Condensation Resistance Factor (CRF).
Primary Applications: Used heavily in aluminum fenestration (windows, doors, curtain walls) and structural connections (balconies, steel beams, Z-girts).
Engineering Reality: They must balance extreme low thermal conductivity (e.g., PA66+GF at ~0.3 W/m·K) with high mechanical strength to resist wind loads and continuous shear forces.
ROI & Compliance: Essential for achieving Net Zero targets, securing LEED credits, and qualifying for commercial building tax deductions (e.g., Section 179D).
Building professionals often misunderstand how heat moves through a facade. They assume thick exterior insulation solves everything. However, real-world physics prove otherwise. We must look closely at the structural framework itself.
You must address the "Wall Delta." This term describes the severe temperature gradient between interior and exterior wall surfaces. Cavity insulation is entirely insufficient if the framing or structural connections remain highly conductive. Heat behaves like water; it always seeks the path of least resistance. When you use continuous insulation but leave metal studs or window frames exposed, you provide a superhighway for thermal energy. The energy completely bypasses your expensive insulation layers.
Unmitigated thermal bridges drain energy rapidly. Consider exposed balcony slabs or protruding steel canopies. These architectural features often connect directly to the interior floor slab. Without an insulating barrier, they act as massive cooling fins in winter. Engineering studies show these unprotected nodes can degrade the effective U-value of a wall assembly by up to 60%. This massive loss forces HVAC systems to work harder, dramatically increasing daily operational expenses.
Energy loss is only half the problem. Uncontrolled thermal bridging introduces severe liability risks. Localized cold spots create point and linear thermal bridges. During cold weather, these spots drop interior surface temperatures below the dew point. This temperature drop causes immediate interior condensation.
Moisture accumulates inside the wall cavity or directly on window frames. This breeds rapid mold proliferation. It also drives the premature degradation of adjacent finishes, like drywall or hardwood flooring. Building owners face expensive remediation and potential health liabilities when mold takes hold. Intervention is not just about saving energy; it is about protecting the asset.
Assuming standard double-pane glass compensates for highly conductive aluminum frames.
Ignoring structural steel penetrations, like roof posts and canopy supports.
Relying on interior spray foam while leaving exterior metal cladding brackets exposed.
Engineers deploy thermal break strips across multiple disciplines. You will find them wherever highly conductive materials threaten the building envelope. Let us explore the primary application zones.
The window and door industry relies heavily on this technology. Curtain walls, storefronts, and operable windows require robust insulation.

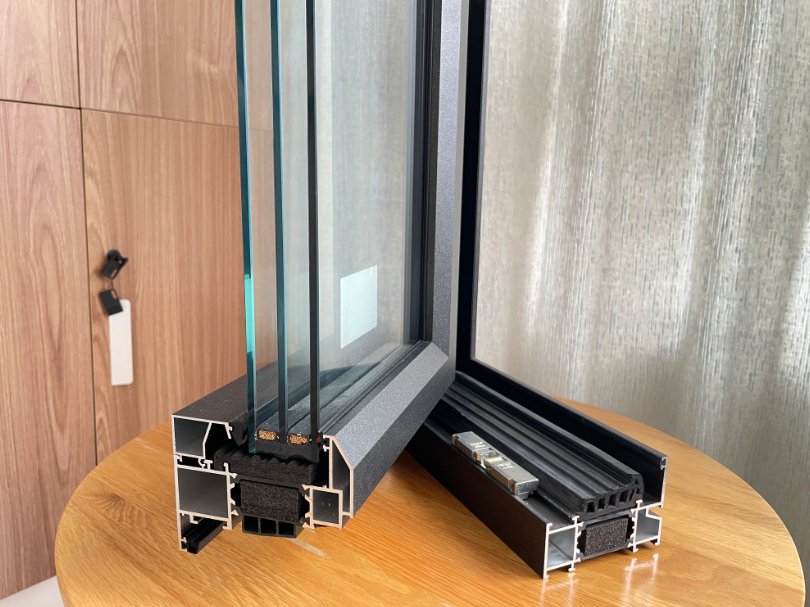

Curtain Walls and Storefronts: Fabricators insert the strips between interior and exterior aluminum extrusions. This simple separation prevents massive heat loss across large glazed facades.
Advanced Glazing Systems: Incorporating these insulators enables easy upgrades from double-pane to triple-pane glass systems. Thicker glass alters the weight and expands the thermal gradient. The load-bearing composite manages these shifts securely.
Heavy structural applications demand load-bearing insulation. The barrier must support enormous weight while stopping heat transfer.
Balconies and Canopies: Builders place specialized thermal pads at the critical junction where exterior concrete or steel appendages meet the interior floor slab. This stops the "cooling fin" effect entirely.
Steel-to-Steel and Steel-to-Concrete: They are heavily used in base plate transitions. You also see them in roof penetrations and embedded plate connections. Whenever structural steel penetrates the building envelope, an insulating plate must intervene.
Modern exterior facades require continuous insulation. However, attaching heavy cladding (like brick or metal panels) requires structural brackets.
Z-Girts & Brick Shelves: Traditional steel Z-purlins slice right through continuous insulation, ruining its effectiveness. Insulating strips replace or isolate these traditional masonry brackets. This maintains the unbroken integrity of continuous exterior insulation while securely holding the facade.
You must understand the physics behind these insulators to appreciate their value. They do not just block heat; they fundamentally alter how the structural profile handles environmental stress.
High-performance systems rely on a three-pronged approach to stop heat transfer. They tackle conduction, convection, and radiation simultaneously.
Conduction is the primary enemy. Aluminum possesses extremely high thermal conductivity. It transfers heat at approximately 237 W/m·K. In contrast, manufacturers use fiberglass-reinforced polyamide (PA66+GF) for the insulating barrier. This advanced polymer operates at roughly 0.3 W/m·K. That makes it approximately 1/800th the conductivity of aluminum. It acts as an impenetrable roadblock to thermal energy.
Material | Approximate Thermal Conductivity (W/m·K) | Relative Heat Transfer Speed |
|---|---|---|
Aluminum (Standard Extrusion) | 237.0 | Extremely High |
Structural Steel (Carbon) | 45.0 - 50.0 | High |
Stainless Steel | 15.0 | Moderate |
Polyamide Strips (PA66+GF) | 0.3 | Extremely Low (Insulator) |
Trapped Air (Cavity) | 0.026 | Negligible |

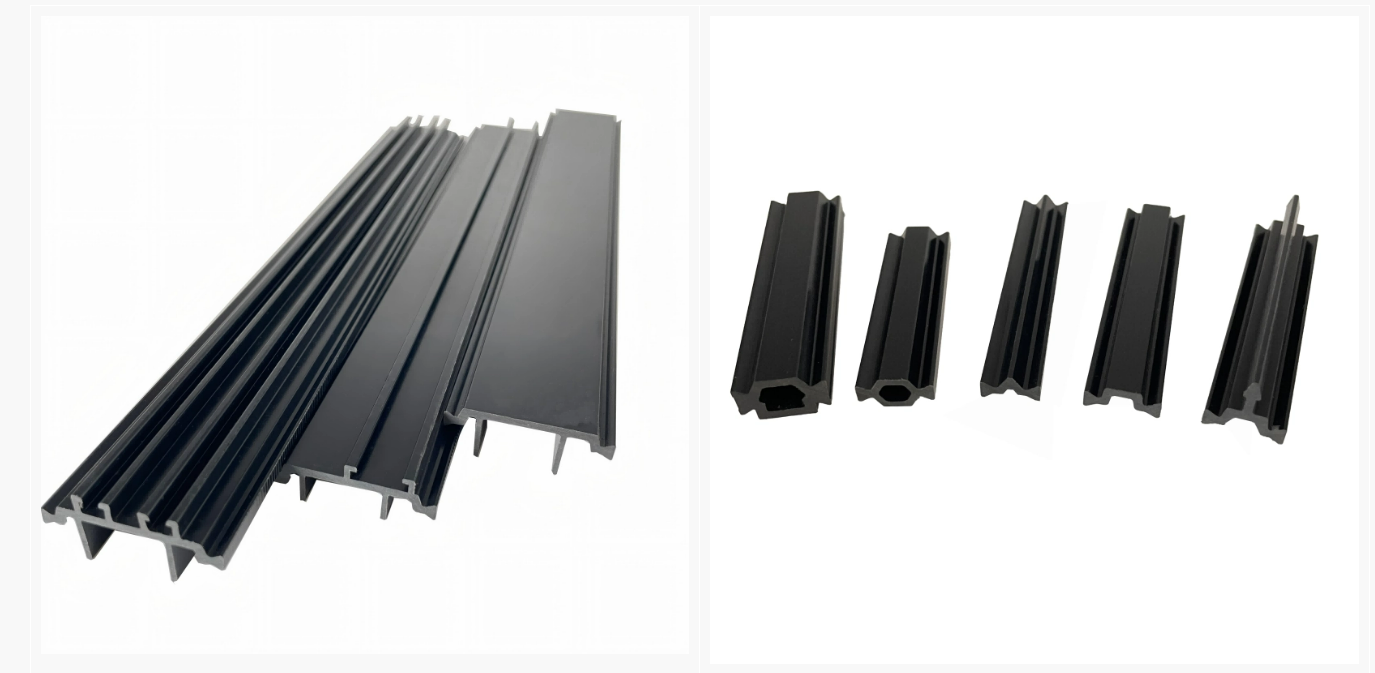

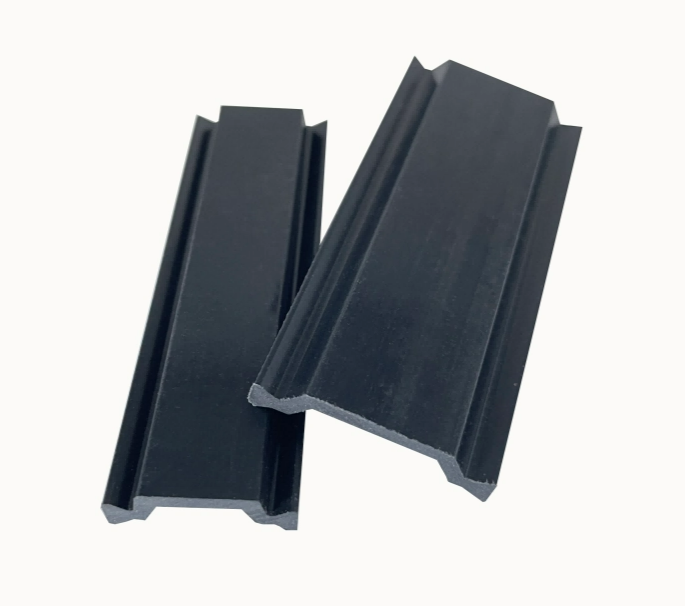

The shape of the insulator matters immensely. Engineers design specific extrusion profiles, such as C-shape, I-shape, or multi-chambered designs. These geometries intentionally trap air inside the metal frame. Trapped dead air has an incredibly low conductivity of roughly 0.026 W/m·K. This trapped air effectively blocks internal convection currents.
Finally, we must address thermal radiation. High-end strips often feature optional reflective foils or specialized coatings. These additions minimize thermal radiation bouncing across the hollow cavity, ensuring maximum R-value retention.
For window and curtain wall profiles, the strips must become structural components. This requires a precise physical composite process.
Extrusion: Factories extrude the aluminum frame with a specific structural channel designed to hold the polymer.
Knurling: Machinery aggressively scores the inside of this channel. This process creates sharp "teeth" in the aluminum. These teeth maximize shear strength and prevent the nylon strip from shrinking or slipping over decades of use.
Insertion: Automated machines slide the polyamide profile smoothly into the knurled channel.
Rolling: Heavy steel discs press down on the aluminum edges under precise torque. This crimps the metal tightly around the polymer. It forms a unified, load-bearing composite capable of resisting extreme wind pressures.
Selecting the correct material requires careful engineering analysis. Not all insulators perform equally under load. You must evaluate materials, structural integrity, and proper dimensioning.
The industry generally relies on two primary methodologies for fenestration and structural separation.
Feature | Polyamide Strips (PA66+GF) | Pour-and-Debridge (P&D) |
|---|---|---|
Composition | Nylon 66 with 25% multi-directional fiberglass. | Injected two-part polyurethane resin. |
Finish Compatibility | Supports powder coating and anodizing after assembly. | Must be painted before injection (resin melts in ovens). |
Structural Stability | Exceptional shear strength; handles heavy triple-pane loads. | Good, but traditional variants can shrink over time. |
Assembly Labor | Requires precise knurling and rolling machinery. | High-strength hybrid variants combine P&D with polymer locks to reduce labor. |
Systems must be evaluated on their ability to handle tension, torsion, and shear forces simultaneously. Structural connections face immense stress from wind, dead loads, and building settlement.
For structural steel applications, engineers must evaluate shear force transfer methods carefully. They typically choose between friction-based transfer and bolt bending mechanics. If you rely on bolted connections, you must ensure the compressive stress on the insulating pad remains strictly below 35% of its ultimate capacity. Exceeding this threshold causes long-term creep. Creep is the slow, permanent deformation of the polymer under constant pressure. If creep occurs, bolts loosen, and the entire connection becomes structurally compromised.
Engineers often face an interesting paradox regarding thickness. In structural nodes, thicker is not always better if you ignore the surrounding context. If a thermal break pad is too thin (for example, less than 1 inch), you create a new problem.
The increased surface area of the required steel end-plates can actually result in greater heat loss than if you just used a continuous beam. Thin pads force the highly conductive steel plates closer together, encouraging thermal bridging around the edges. To solve this, pad thickness should ideally match the adjacent continuous insulation depth perfectly. This alignment prevents flanking heat loss.
Always request third-party shear testing data before approving a composite profile.
Ensure fiberglass fibers are multi-directional, not uni-directional, to prevent linear splitting.
Verify the manufacturer's maximum compressive load limits for structural steel pads.
You cannot treat thermal break strips as an afterthought. Integrating them effectively requires an understanding of regulatory drivers and common field risks.
Modern building standards practically mandate these components. The AIA 2030 Commitment and global Net Zero mandates require drastic reductions in operational carbon. You cannot meet these targets with unmitigated thermal bridges.
Financial incentives offer a strong push. Commercial buildings that integrate comprehensive load-bearing insulation often qualify for Section 179D tax deductions. In recent iterations, qualifying energy retrofits can earn up to $5.00 per square foot in deductions. Furthermore, eliminating thermal bridges heavily contributes to securing valuable LEED certification points in the Energy and Atmosphere categories.
Even the best materials fail if improperly specified or installed. Watch out for these two critical failures.
This is a severe risk when using non-compatible fasteners in structural joints. Many engineers switch to stainless steel bolts to lower the thermal conductivity across the joint. However, placing stainless steel directly against galvanized carbon steel or aluminum creates a battery effect in the presence of moisture. This causes rapid galvanic corrosion. You must use proper isolation washers and dielectric bushings to separate dissimilar metals entirely.
In fenestration, failure is often caused by improper knurling depths during the aluminum rolling process. If the machinery fails to cut deep enough "teeth" into the aluminum, the polymer cannot grip the metal securely. This leads to structural slippage under heavy wind loads. Over time, the window frame warps, causing air leaks and glass failure.
How do you choose the right partner? Recommend a procurement path that prioritizes advanced engineering support. Prioritize vendor 3D thermal modeling capabilities. Excellent manufacturers will model your exact joint profile to identify hidden heat loss early in the schematic phase. Furthermore, demand proven compliance with AAMA (American Architectural Manufacturers Association) or equivalent international load-testing standards. If a vendor cannot provide certified shear test reports, disqualify them.
We must recognize that thermal break strips are not an optional accessory. They are a fundamental requirement for modern, code-compliant building envelopes. Ignoring thermal bridging is no longer acceptable structurally, legally, or financially. By decoupling highly conductive materials, we protect building assets from condensation and dramatically reduce energy consumption.
We encourage architects, structural engineers, and facade fabricators to engage with manufacturers during the early schematic design phase. Use this time to utilize 3D thermal modeling. Doing so allows you to select the exact polyamide geometry or load-bearing pad required for the project's specific Wall Delta. You will ensure your facade performs exactly as designed.
Prioritize early schematic design integration to avoid costly late-stage retrofits.
Verify shear strength, creep resistance, and load-bearing capacities rigorously.
Match your thermal pad thickness to the continuous insulation layers.
Leverage 3D thermal modeling to expose and eliminate hidden heat loss.
A: Retrofitting existing aluminum fenestration with thermal break strips is rarely feasible. The aluminum profiles must be precisely extruded, knurled, and rolled with the strips during manufacturing. However, structural facade upgrades can successfully incorporate load-bearing thermal pads during deep retrofits, especially when replacing balconies, canopies, or cladding attachment systems.
A: Continuous insulation blankets the building exterior to prevent general heat loss. Thermal break strips fix the "missing link" within this system. Whenever continuous insulation must be interrupted for structural supports—like steel beams or window frames—these strips step in to decouple the highly conductive materials and block the localized thermal bridge.
A: No. High-quality polyamide strips feature multi-directional fiberglass reinforcement. When manufacturers combine them with the aluminum extrusion through a precise knurling and rolling process, they form a unified composite profile. This mechanical integration ensures the final assembly achieves structural equivalence to solid metal under severe wind and dead loads.
A: Fiberglass-reinforced polyamide strips offer exceptional life-cycle stability. They resist UV radiation, moisture, and extreme temperature fluctuations without degrading or creeping. Because of their durable composite nature, engineers design them to easily match or exceed the entire lifespan of the host aluminum extrusion or structural steel framework they insulate.
