Modern building envelopes face intense demands for high energy efficiency. Builders increasingly rely on continuous insulation to meet these standards. However, cladding support structures often compromise these highly insulated walls. You must anchor heavy exterior panels to structural framing to ensure stability. This necessity creates a significant engineering challenge.
Metal studs, brackets, and heavy steel fasteners inevitably create thermal bridges across the wall assembly. They channel valuable indoor heat directly past your expensive insulation layers. This massive heat transfer forces HVAC systems to work much harder to maintain comfort. You lose energy, increase operational costs, and risk severe moisture problems.
To solve this structural flaw, engineers rely on specialized isolation materials. You will learn how these components act as load-bearing insulators to separate highly conductive metals. We will explore how properly specified thermal break strips preserve structural integrity. Furthermore, we will detail how they help your building satisfy the most stringent global energy codes.
Unmitigated cladding connections can reduce a wall’s effective R-value by up to 50%, rendering thicker insulation investments useless.
Thermal break strips prevent the "cold spot" effect, keeping interior surface temperatures above the dew point to mitigate condensation, mold, and structural rot.
Material selection (e.g., XPS, Polyamide, closed-cell polymers) must balance low thermal conductivity with the capacity to handle structural shear and compressive loads.
Proper integration of thermal break strips contributes directly to LEED certification (EA & MR credits) and compliance with ASHRAE 90.1, IECC, and regional building codes.
Heat always follows the path of least resistance through any material. Steel and aluminum framing are highly conductive elements. When these metals pierce an insulated wall, they create an express highway for rapid heat loss. This phenomenon is known as the physics of thermal bridging. You cannot ignore this conductive pathway if you want an efficient building.
Many builders mistakenly believe thicker insulation solves poor thermal performance. Structural engineering data reveals a much harsher reality. This dynamic is called the law of diminishing returns. Upgrading insulation from three inches to six inches offers almost zero energy performance gains if continuous thermal bridging remains unaddressed. Unbroken metal connections act like a leak in a bucket. They can destroy up to 50% of the wall's effective insulation rating.
You must also differentiate between thermal bridging and thermal bypass. They are two distinct physical mechanisms. Bridging refers to direct conductive heat transfer through solid metal components. Bypass happens when cold airflow moves around or behind the insulation panels. Air-gap and rainscreen facades often suffer from bypass if poorly detailed. Proper envelope design stops both. It seals the air gaps and isolates the conductive metal penetrations simultaneously.
Direct Conduction: Heat travels rapidly through steel brackets connecting the interior to the exterior.
Insulation Degradation: The surrounding insulation loses its effectiveness near the metal penetration.
Airflow Bypass: Unsealed gaps around structural brackets allow cold air to wash behind the continuous insulation.
A high-performance envelope requires more than just thick fiberglass or mineral wool. You need components designed specifically to block heat transfer pathways. Implementing thermal break strips ensures your expensive insulation actually delivers its intended R-value. This targeted isolation directly lowers operational carbon emissions. It also reduces everyday operating expenses for the building owner.
Moisture management represents the second vital function. These strips play a crucial role in dew point control. They keep interior wall temperatures safely elevated during harsh winters. If walls drop below the dew point, dangerous localized cold spots appear immediately. These cold spots breed hidden interstitial condensation within the cavity. By eliminating these freezing zones, you prevent toxic mold growth. You also preserve long-term indoor air quality.
Finally, these materials act as essential load-bearing insulation. They carry a heavy dual responsibility on the facade. They are not merely foam insulators. They must support massive dead loads from heavy brick or metal exterior cladding. At the same time, they must absorb severe live loads. High winds and seismic activity constantly pull and push on the facade. The isolation pads must withstand these forces without compressing, shifting, or degrading.
Core Function | Mechanism of Action | Primary Building Benefit |
|---|---|---|
Preserving Thermal Resistance | Blocks direct metal-to-metal conductive heat transfer. | Maintains intended R-value and lowers HVAC loads. |
Moisture Management | Elevates internal surface temperatures above the dew point. | Prevents cavity condensation, mold, and structural rot. |
Load-Bearing Support | Absorbs heavy dead loads and dynamic live loads. | Secures heavy cladding panels safely during extreme weather. |
Specifying the correct material dictates the entire success of your facade design. You must balance thermal resistance against mechanical strength requirements. Extruded Polystyrene (XPS) offers a highly popular starting point. Its high thermal resistance stands out immediately. It acts as an excellent moisture barrier naturally. It refuses to degrade when exposed to wet conditions. Furthermore, it remains very cost-effective for mid-tier projects. However, XPS has limitations. Dense composites easily outclass it under extreme pressure. It hits specific load thresholds much faster than advanced polymers.

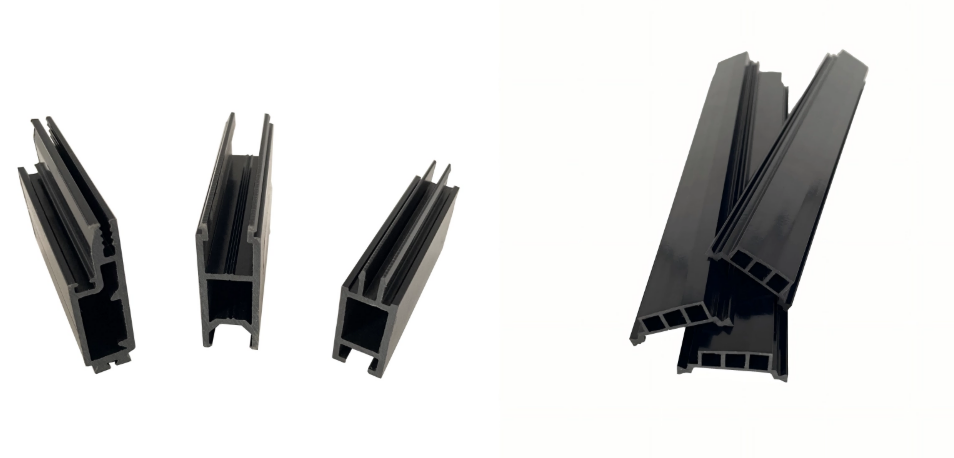

Polyamide and closed-cell polymers provide a more robust alternative. These materials deliver truly superior mechanical strength. They fiercely resist structural shear forces across the wall assembly. You will find them ideal for heavy commercial cladding systems. They maintain rigid dimensions under immense pressure. The primary drawback is cost. You will pay a higher upfront material cost for these advanced polymers.
You can categorize modern cladding supports into two distinct integration classes. Understanding this framework helps you choose the right approach.
Class I (Composite/FRP Systems): These systems achieve near-total elimination of metal-to-metal contact. They rely heavily on fiberglass reinforced polymers. Thermal efficiencies routinely reach a staggering 99%. They represent the gold standard for passive house designs.
Class II (Steel + Bracket Isolation): These utilize upgraded steel purlins or girts. They rely on localized thermal brackets to separate the metal. This approach beautifully balances high structural strength and adequate thermal separation. It remains the most common choice for standard commercial buildings.
Common Mistake: Specifiers often choose standard rubber pads to save money. Ordinary rubber compresses rapidly under heavy cladding weight. It also offers terrible thermal resistance compared to engineered polyamides. Always demand specific load-testing data.
Job sites are chaotic, fast-paced environments. Complex installation procedures inevitably lead to expensive human errors. Field-cutting materials burns valuable labor hours rapidly. Specifying pre-cut or self-adhesive strips provides a massive return on investment. Construction teams minimize material waste automatically. They accelerate installation times significantly. Providing custom thermal break strips ensures workers keep moving forward. They spend time attaching panels instead of measuring and slicing foam continuously.
Extreme temperatures punish metal facades relentlessly. Cladding expands under harsh afternoon sun. It contracts violently during freezing winter nights. The isolation material must adapt dynamically to this movement. If the material is too rigid, it shears the fasteners or fractures the weather barrier. You must specify polymers engineered to flex slightly. They must accommodate the expansion of metal components without losing their watertight seal.
Incidental moisture always finds a way behind exterior cladding. Certain strip profiles actively help manage this inevitable water intrusion. They naturally establish a vertical drainage plane behind the cladding panels. This tiny engineered gap allows trapped rainwater to exit safely downwards. It facilitates rapid drying before moisture causes structural rot. Proper detailing transforms a simple insulator into an active moisture management system.
Regional and global energy standards grow tighter every single construction cycle. You must align your facade designs with these evolving codes. Modern projects must comply with ASHRAE 90.1 and the International Energy Conservation Code (IECC). You must also observe the Canadian Green Building Strategy and strict NCC mandates. Regulatory authorities simply no longer accept unmitigated steel penetrations in new commercial envelopes. Non-compliance results in failed inspections and costly teardowns.
Integrating engineered breaks maps directly to highly valuable green building certifications. You can easily earn crucial LEED points. Focus specifically on the Energy & Atmosphere (EA) category. Eliminating thermal bridges optimizes overall energy performance drastically. Materials & Resources (MR) credits also apply here. You can secure these by selecting Red-List-free, low-GWP polymer choices. Specifying sustainable materials elevates your firm's reputation instantly.
Smarter energy models unlock major commercial financial incentives. In the United States, Section 179D provides substantial tax deductions for highly efficient buildings. Utilizing thermal breaks improves the overall energy model significantly. Furthermore, documented operational cost reductions elevate the total resale value of commercial properties. Lower monthly energy bills attract premium buyers. It makes the property far more competitive in the commercial real estate market.
Best Practice: Always involve an energy modeler early in the schematic design phase. They can quantify the exact financial return of upgrading your cladding connections.
Thermal break strips are absolutely not an optional building accessory. They remain a critical engineering requirement for any high-performance facade. Failing to isolate highly conductive metal connections compromises your entire building envelope. It wastes your insulation investment, spikes energy costs, and invites destructive mold growth. You must treat these tiny components with immense structural respect.
We strongly advise architects and specifiers to verify their connection designs early. Model your cladding supports using professional 3D thermal analysis software. Do not guess the heat loss values. Always request documented shear and compressive load-testing data from manufacturers before finalizing your specifications. Proactive engineering ensures a resilient, efficient, and deeply comfortable building.
A: No. Unbroken structural penetrations act as thermal short circuits. Adding more insulation around a thermal bridge yields negligible energy savings. The heat simply bypasses the thicker exterior insulation through the highly conductive metal framing.
A: Not if properly specified. Modern strips are engineered specifically as "load-bearing insulation." Materials like high-density XPS or reinforced polyamides handle severe compressive and shear forces easily. They support extreme structural loads safely without any deformation.
A: Yes, provided the adhesive is rated for the installation temperature. You must apply them to a clean, compatible weather-resistive barrier (WRB). The primary structural hold relies on mechanical fasteners. The adhesive simply aids installation and seals the penetration.
A: Material choice dictates fire performance entirely. Specifiers must carefully select thermal strips that comply with strict local fire codes. You must verify NFPA 285 compliance in continuous insulation systems. Always check flame spread and smoke development ratings before purchasing.
