Window manufacturers face escalating pressure to meet stringent global energy codes. Standards like Energy Star, Passive House, and updated local building regulations demand superior insulation. Achieving this without compromising structural integrity remains a constant challenge on the factory floor. Selecting the correct width of Thermal Break Strips for Aluminium Windows is a complex balancing act. Choosing a strip that is too narrow results in failed thermal compliance during testing. Conversely, selecting one that is too wide introduces structural vulnerabilities, manufacturing complexities, and unnecessary material waste.
To navigate these challenges, manufacturers need a robust technical evaluation framework. Determining the optimal thermal break width requires analyzing climate zone requirements and structural load limits. You must also evaluate profile depth compatibility and overall performance ratios. This guide provides the engineering insights necessary to make informed specification decisions.
Minimum vs. Optimal: While 14mm serves as the absolute physical baseline for basic thermal separation, modern national standards increasingly mandate 24mm as the baseline for standard thermal performance, with 30mm+ strictly required for extreme cold or Passive House standards.
Structural Trade-Offs: Increasing the width of thermal break strips directly impacts the shear strength and moment of inertia of the aluminium profile, requiring precise engineering to prevent wind load failures.
System Synergy: The width of the thermal break must align with the glass configuration (double vs. triple glazing), window opening types, and sealing design to prevent cavity convection and maximize the overall window U-value.
Manufacturing Impact: Transitioning to wider thermal breaks (30mm+) requires re-evaluating extrusion depths, crimping processes, surface finishing workflows, and potentially integrating foam inserts to mitigate internal heat transfer.
Aluminium is a highly conductive material. Without intervention, an aluminium window frame acts as a thermal bridge, rapidly transferring heat between the interior and exterior environments. The primary role of Thermal Break Strips is to interrupt this conductive heat transfer. By physically separating the inner and outer aluminium extrusions with a low-conductivity polymer, the frame's overall thermal resistance increases significantly. We see this daily in extrusion plants where raw profiles are transformed into high-performance systems.
When you evaluate a cross-section of a modern window, the thermal break acts as the primary defense against energy loss. The physical gap created by the strip forces heat to travel through a material with a fraction of aluminium's conductivity. This separation prevents interior heat from escaping during winter and blocks exterior heat from entering during summer. The effectiveness of this barrier depends heavily on its physical dimensions and material properties.
There is a non-linear relationship between the width of the polyamide strip and the reduction in thermal transmittance, known as the U-factor. Initially, increasing the strip width yields substantial improvements in insulation. Moving from a 14mm to a 20mm strip produces a measurable drop in the U-value. However, adding millimeters yields diminishing returns past a certain threshold. Once the cavity becomes too wide, internal convection currents develop within the hollow space.
Air inside a wide cavity begins to circulate due to temperature differences between the inner and outer aluminium shells. This circulating air transfers heat across the gap, bypassing the polymer strip entirely. Without additional cavity insulation, such as polyurethane foam, these convection currents negate the benefits of the wider physical separation. Engineers must calculate the exact point where widening the strip stops improving the U-value and starts requiring secondary insulation methods.

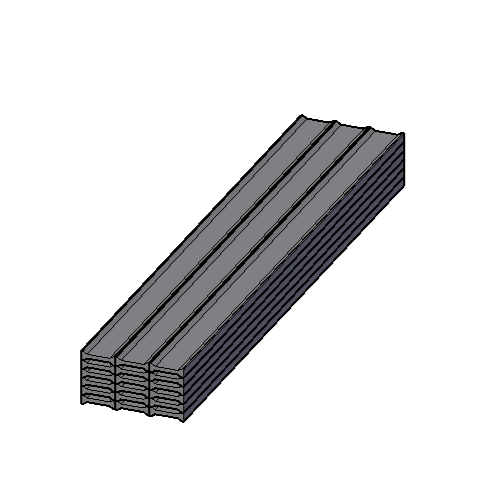

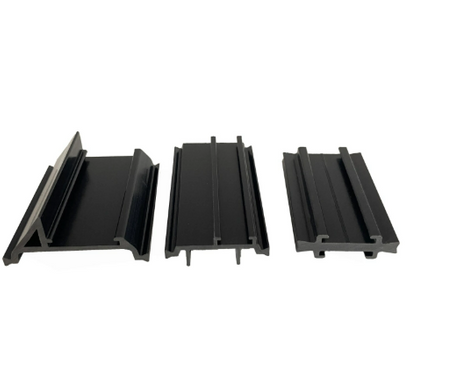

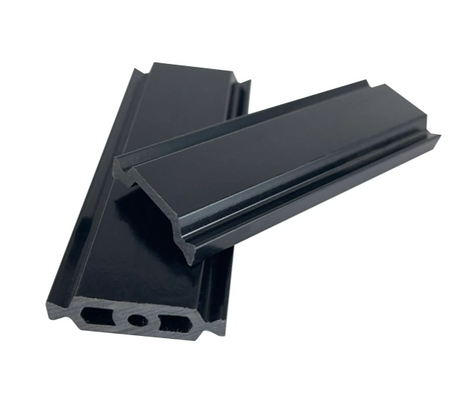

Width evaluations assume the use of industry-standard materials. The globally recognized benchmark is Polyamide 66 reinforced with 25% glass fiber (PA66-GF25). This specific composite is necessary because its thermal expansion coefficient closely matches that of aluminium. This matching prevents the structural bonds from shearing during extreme temperature fluctuations. When the sun heats the exterior frame, both the aluminium and the PA66-GF25 expand at similar rates, maintaining the integrity of the crimped joint.
Verifying high-quality PA66-GF25 is essential to prevent structural failure under load. Manufacturers should implement strict quality control measures on the factory floor. Substandard materials will warp during powder coating or shear under high wind loads.
Check for clear, continuous laser markings along the strip to verify the manufacturer and batch number.
Analyze the glass fiber distribution under magnification to ensure uniformity across the cross-section.
Verify raw material certifications from the supplier before accepting any shipment.
Conduct transverse tensile strength tests on sample batches using a universal testing machine.
Perform heat aging tests to ensure the strips maintain dimensional stability at 200°C.
Strips in the 14mm to 18mm range provide basic thermal separation. They are primarily applied in mild climates where extreme temperature differentials are absent. These narrow strips are also suitable for interior partitions or regions with minimal thermal regulations. They offer distinct manufacturing advantages, including ease of integration into shallow profile depths and lower material usage. You will often find these widths in legacy profile systems that have not yet been updated to meet modern energy codes.
From a production standpoint, 14mm to 18mm strips are highly stable. They resist buckling during the knurling and crimping process. This stability allows for faster assembly line speeds and reduces the scrap rate. However, their thermal performance is limited. They cannot prevent condensation on the interior frame if the outside temperature drops near freezing. Therefore, their application is strictly limited to specific geographic markets.
The 24mm width has become the codified minimum standard in several national building codes for temperate and mixed climates. This dimension offers the most balanced performance ratio for standard residential and commercial double-glazed units. It provides sufficient thermal resistance to prevent interior condensation while maintaining robust structural rigidity without requiring overly complex extrusion profiles. Most modern window systems are designed around this baseline width.
Working with 24mm strips requires precise calibration of the assembly machinery. The knurling wheels must create deep, aggressive teeth in the aluminium cavity to grip the wider strip securely. The crimping discs must apply consistent pressure to lock the assembly together without distorting the polymer. When executed correctly, a 24mm thermal break provides excellent shear strength and meets the energy requirements for the majority of standard construction projects.
For sub-zero climates, high-altitude projects, and Passive House certifications, 30mm+ widths are an absolute necessity. These extreme environments demand maximum thermal resistance. However, utilizing strips of this width requires specialized engineering. Multi-cavity strip designs or integrated polyurethane foam inserts become mandatory at these widths to prevent internal convection currents from compromising the U-value. You cannot simply use a flat 34mm strip and expect optimal performance.
Manufacturing profiles with 34mm strips introduces significant challenges. The wide polymer span is susceptible to twisting and bowing during assembly. We often see manufacturers struggle with dimensional stability when first transitioning to these extreme widths. Specialized rolling equipment with multiple support guides is required to keep the assembly straight. Furthermore, the sheer size of the thermal break dictates a massive overall profile depth, impacting the architectural sightlines of the window.
Strip Width | Primary Climate Application | Typical Glass Pairing | Structural Consideration | Convection Risk |
|---|---|---|---|---|
14mm - 18mm | Mild / Interior | Single or Standard Double | High rigidity, easy crimping | Low |
20mm - 24mm | Temperate / Mixed | Heavy Double Glazing | Balanced shear strength | Moderate |
30mm - 34mm+ | Extreme Cold / Passive House | Triple Glazing | Requires strict QC, prone to bowing | High (Requires Foam) |
40mm+ | Arctic / Specialized | Quadruple Glazing | Complex multi-cavity extrusion needed | Extreme (Foam Mandatory) |
Widening the thermal break strip inherently reduces the composite structural rigidity of the window frame. The polymer strip is the weakest link in the assembled profile. You must calculate the required shear strength of the crimped assembly carefully. When using wider strips in high-wind zones, high-rise applications, or with heavy glazed units, the knurling and crimping depth must be precisely calibrated to prevent the aluminium shells from sliding independently under load.
If the shear connection fails, the inner and outer aluminium profiles will act as two separate beams rather than a single composite unit. This drastically reduces the moment of inertia, leading to excessive deflection under wind pressure. To counteract this, manufacturers must increase the thickness of the aluminium walls near the crimping zone. They must also utilize high-quality PA66-GF25 strips with optimized dovetail geometries to maximize the mechanical interlock.
The bimetallic effect poses a significant risk to frame integrity. This phenomenon causes frame bowing, driven by temperature differentials between the inner and outer aluminium shells. For instance, a dark exterior frame exposed to direct sunlight expands, while the air-conditioned interior frame remains contracted. Wider thermal breaks exacerbate this effect by increasing the isolation between the two shells. The wider the strip, the greater the temperature difference, and the more severe the bowing.
Mitigation strategies include utilizing sliding thermal breaks or specialized shear-free strips that accommodate differential expansion. These specialized strips feature a two-part design that allows the exterior aluminium shell to expand and contract independently of the interior shell. This prevents the thermal stress from transferring across the profile and warping the entire window frame. Implementing these sliding strips requires specific extrusion designs and careful assembly techniques.
The geometric constraints of the aluminium extrusion dictate the permissible strip width. A 34mm thermal break cannot simply be swapped into a system designed for a 14mm break. Doing so requires entirely redesigning the profile depth. It also necessitates repositioning hardware grooves, drainage channels, and gasket mounting points. This redesign impacts the entire product ecosystem, from the extrusion dies to the corner cleats used for assembly.
Increasing the profile depth to accommodate a wide thermal break also increases the overall weight and material usage of the window system. Engineers must optimize the extrusion design to remove unnecessary aluminium while maintaining structural integrity. This often involves creating complex, multi-chambered profiles that are difficult to extrude consistently. The die design must account for the flow of aluminium to ensure uniform wall thickness across the enlarged profile.
Powder coating and anodizing processes impact profiles with wider thermal break strips. High-temperature baking processes, often reaching 200°C, introduce the risk of strip deformation. Strip width heavily influences the choice between manufacturing workflows. Narrow strips often survive "assemble-before-paint" processes without issue. The short span of polymer remains stable under the heat of the curing oven.
However, wider strips, which are more susceptible to warping under heat, typically require a "paint-before-assemble" workflow to maintain dimensional accuracy. In this workflow, the inner and outer aluminium shells are painted separately before being joined by the thermal break. This prevents the polymer from being exposed to the curing oven. While this protects the strip, it complicates the manufacturing process and requires careful handling to avoid scratching the painted surfaces during the crimping operation.

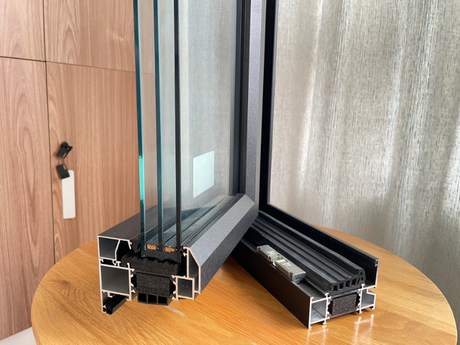

The relationship between thermal break width and Insulated Glass Unit (IGU) thickness is direct. A 34mm strip is typically paired with heavy, triple-glazed units. This combination maximizes the window's overall thermal performance. The wide thermal break aligns with the thick IGU to create a continuous barrier against heat transfer. However, accommodating thicker glass and wider frames necessitates stronger hinges, reinforced sashes, and heavy-duty friction stays to manage the increased weight.
If you pair a wide thermal break with a thin, double-glazed unit, you create a thermal imbalance. The frame will perform exceptionally well, but the glass will remain the weak point, leading to condensation on the glazing. Conversely, pairing a narrow thermal break with a thick triple-glazed unit forces the heat to bypass the glass and travel through the poorly insulated frame. System synergy is required for optimal performance.
Different window configurations restrict permissible strip widths. Casement and tilt-and-turn windows generally accommodate wider strips more easily. Their robust frame designs provide ample space for deep extrusions. Conversely, incorporating wide thermal break strips into sliding window tracks presents significant challenges. It complicates the design of structural roller tracks and compromises the profile’s water tightness.
Manufacturers must engineer specialized overlapping thermal breaks for sliding systems. These designs must maintain the thermal barrier while allowing the sashes to bypass each other smoothly. The thermal break in the sill must also support the weight of the sliding sash and the rolling hardware. This requires high-density polymer strips and reinforced aluminium support structures to prevent the track from crushing under the load.
Effective thermal design requires aligning the thermal break strips with the primary center seal and the glass spacer bar. This alignment creates a continuous, unbroken isothermal line through the window section. If the thermal break is too wide or misaligned with the glass edge, heat bypasses the strip, leading to localized condensation on the interior frame. We use thermal simulation software to visualize these isotherms and adjust the profile geometry accordingly.
The center seal gasket must bridge the gap between the sash and the frame, making direct contact with the thermal break. If the strip is too wide, standard gaskets will not reach, requiring custom-designed EPDM seals. The geometry of the thermal break must include specific mounting grooves to secure these large gaskets and prevent them from dislodging during operation.
Wider thermal breaks push the Euro-groove or hardware mounting points further apart. This geometric shift impacts the selection of locking mechanisms, friction stays, and hinges. Standard hardware may no longer bridge the gap effectively. Manufacturers must source extended hardware components or redesign the inner aluminium shell to bring the mounting points back to standard dimensions.
When the hardware mounting points are shifted, the leverage exerted on the frame during operation changes. A wider frame increases the torque on the hinges when the window is opened. Engineers must specify heavy-duty hardware rated for the increased leverage and weight of the wide-profile system. Failure to upgrade the hardware will result in sagging sashes and compromised weather seals over time.
Calculating the return on investment for upgrading strip widths requires a clear conceptual framework. Manufacturers must compare the incremental cost of wider PA66-GF25 strips against the premium positioning of higher energy ratings. While wider strips consume more polymer, the resulting ability to market windows for Passive House or extreme climate applications often justifies the initial material expenditure. The key is matching the width to the target market's specific regulatory demands.
You must analyze the local building codes to determine the minimum required U-value. Upgrading from a 20mm to a 24mm strip might be necessary to meet new regulations, making it a mandatory compliance cost rather than an optional upgrade. However, pushing to a 34mm strip in a temperate climate offers little practical benefit and unnecessarily increases material consumption. Strategic width selection optimizes the balance between performance and production efficiency.
Transitioning to wider thermal breaks involves hidden manufacturing costs. New extrusion dies are required for the modified aluminium shells. Adjustments to knurling and crimping machinery are necessary to handle the altered profile geometry. Furthermore, increased quality control testing is mandatory to ensure the wider composite profiles meet structural shear standards. These tooling and workflow adjustments must be factored into the overall product development budget.
The assembly line must be reconfigured to handle the wider, heavier profiles. Conveyor systems may need widening, and cutting saws must be upgraded to handle the increased depth. The crimping machines require new support blocks to prevent the wide profiles from collapsing under pressure. These operational changes require downtime and capital investment, which must be offset by the increased market share gained from offering high-performance window systems.
Profile distortion during the rolling and crimping process is a primary risk when using wide (30mm+) strips. The increased width makes the polymer more susceptible to buckling under crimping pressure. We recommend specific quality control tolerances and testing protocols. Implement routine tensile testing and transverse shear testing on the assembly line. This ensures the composite profile meets structural standards post-assembly without bowing or twisting.
Operators must monitor the crimping pressure continuously. If the pressure is too high, the strip will buckle. If it is too low, the shear strength will be insufficient. Regular calibration of the assembly machinery is required to maintain consistent quality. We also recommend using optical measurement systems to verify the straightness of the assembled profiles before they proceed to the cutting and fabrication stages.
Interstitial condensation within wide thermal break cavities is a critical failure point. If sealing designs fail, moisture accumulates in the large hollow space between the aluminium shells. This trapped moisture degrades the structural integrity over time. Outline strict drainage and ventilation best practices in the profile design. Ensure weep holes are correctly positioned to allow moisture to escape without creating a direct path for cold air infiltration.
The design must include internal drainage channels that route water away from the thermal break cavity. The polymer strips themselves are resistant to moisture, but trapped water can freeze in cold climates, expanding and potentially cracking the aluminium shells. Proper ventilation of the cavity allows any accumulated moisture to evaporate, maintaining the long-term performance of the window system.
Conduct comprehensive thermal simulation modeling using software like THERM or Flixo to visualize isotherms before finalizing any new thermal break width specification.
Execute physical prototype shear testing to validate the structural integrity of the crimped assembly under simulated wind loads.
Audit your current assembly line machinery to ensure it can handle the increased profile depth and crimping pressure required for wider strips.
Develop a modular product line utilizing a 24mm baseline for standard products and a 30mm+ variant for extreme climates to control extrusion costs.
A: The absolute physical baseline for basic thermal separation is 14mm. However, modern national building codes increasingly mandate a minimum of 24mm for standard thermal performance in temperate climates.
A: No. Swapping a narrow strip for a 34mm strip requires entirely redesigning the aluminium extrusion. The profile depth, hardware grooves, and structural crimping points must be engineered specifically for the wider dimension.
A: When strip widths exceed 30mm, the large hollow cavity allows internal convection currents to form. Polyurethane foam inserts disrupt these currents, preventing heat transfer and maximizing the window's U-value.
A: The bimetallic effect causes frame bowing due to temperature differences between the inner and outer aluminium shells. Wider thermal breaks exacerbate this by increasing the thermal isolation, requiring specialized shear-free strips to mitigate the distortion.
A: Polyamide 66 reinforced with 25% glass fiber (PA66-GF25) is the industry standard. Its thermal expansion coefficient matches aluminium, ensuring structural integrity during extreme temperature fluctuations.
A: Wide strips are more susceptible to warping under the 200°C heat of curing ovens. Manufacturers often must switch to a paint-before-assemble workflow to protect the polymer from deformation during surface treatment.
