Fenestration manufacturing carries a hidden operational cost that hits hard on the assembly line: high scrap rates and assembly failures caused by improperly handled raw materials. Thermal break profiles, specifically polyamide-based extrusions, are highly sensitive to environmental factors. When you leave them in uncontrolled warehouses, they absorb moisture, warp, and turn brittle. This degradation directly disrupts the knurling, insertion, and crimping phases of aluminum frame assembly. Thermal Break Strips function as a structural, insulative barrier that severs the thermal bridge between the inner and outer aluminum frames. Any degradation during storage compromises this barrier. You need strict, evidence-based storage protocols. Optimizing warehouse conditions and handling procedures for these profiles is a mandatory quality control measure that protects structural integrity, condensation resistance, and manufacturing margins.
Moisture Control is Non-Negotiable: Polyamide (PA66 GF25) strips are hygroscopic; uncontrolled humidity alters their dimensions and mechanical strength, leading to rolling and crimping failures.
Temperature Acclimatization is Required: Strips stored in unheated warehouses during winter must be acclimatized to production floor temperatures to prevent micro-cracking during compression.
Physical Support Prevents Deflection: Storing profiles vertically or on uneven racks causes permanent bowing, making automated insertion into aluminum extrusions impossible.
Assembly Integrity Dictates Thermal Performance: Poorly stored strips are highly susceptible to over-compression, cracking, and crushing during mechanical frame joinery, reducing the insulating properties of the finished window.
Inventory Rotation Minimizes Degradation: Implementing strict FIFO (First-In, First-Out) systems and maintaining original UV-protective packaging extends the viable shelf life of the strips.

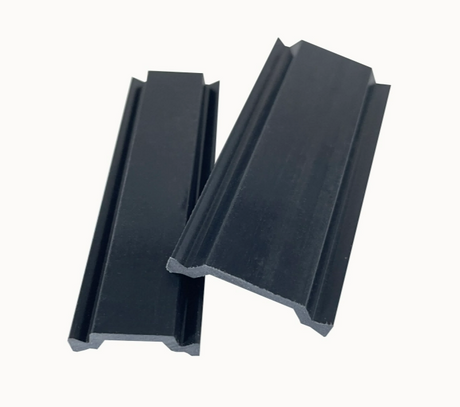

Modern thermal break profiles rely on a specific composite formulation. You will typically find them extruded from 25% glass-fiber reinforced polyamide 66 (PA66 GF25). This blend provides the exact tensile strength and thermal resistance required for high-performance aluminum windows. The glass fibers add structural rigidity, while the polyamide matrix offers flexibility and insulation.
Pre-extruded polyamide strips have entirely different storage requirements compared to pour-and-debridge polyurethane systems. Pour-and-debridge setups involve raw chemical storage. You have to manage moisture-sensitive liquid polyols and isocyanates in climate-controlled vats. Solid polyamide profiles, however, require ambient environmental management to maintain their physical shape and mechanical properties before they ever touch the assembly equipment.
Material Type | Storage Environment | Moisture Sensitivity | Handling Requirement |
|---|---|---|---|
Polyamide (PA66 GF25) | Ambient warehouse (15°C - 25°C) | Hygroscopic (absorbs/releases moisture) | Horizontal racking, UV protection |
Polyurethane (Pour & Debridge) | Climate-controlled chemical vats | Highly reactive to moisture | Sealed pumping systems, hazmat protocols |
You must preserve the baseline mechanical properties prior to the mechanical rolling process. Tensile strength ensures the profile withstands the shear forces applied by the aluminum frame. Elasticity allows the strip to absorb the heavy pressure of the knurling wheels without fracturing. Improper storage degrades these properties rapidly, making successful assembly impossible and driving up your scrap rates.
Polyamide 66 is inherently hygroscopic. The polymer matrix actively absorbs moisture from the surrounding air. It also releases moisture if the ambient environment becomes too dry. This continuous exchange directly alters the physical characteristics of the material on your shop floor.
The equilibrium moisture content concept dictates how these strips behave in your warehouse. They absorb or release water molecules based on ambient relative humidity (RH). When the warehouse RH spikes during summer months, the strips take on water. When the warehouse air dries out during winter heating, the strips lose internal moisture.
This creates a difficult physical trade-off for production managers. If the profiles become too dry, they turn brittle. Brittle strips are highly prone to cracking under shear stress during the crimping process. If they become too wet, they experience dimensional swelling. Swelling reduces structural rigidity, softens the material, and prevents smooth insertion into the aluminum cavities.
Long-term storage requires a stable ambient temperature. The optimal range falls strictly between 15°C and 25°C. Maintaining this range prevents the polymer from undergoing rapid thermal expansion or contraction, which induces internal stress and warps the extrusion.
Extreme temperatures pose significant risks to your inventory. Extreme cold increases the brittleness of the polyamide, making it susceptible to shattering the moment the crimping discs apply pressure. Extreme heat causes the material to soften, leading to sagging on the storage racks and accelerated aging of the polymer chains.
You need a standard operating procedure (SOP) for acclimatization. Strips stored in cold environments must rest on the production floor before entering the rolling machine.
Move the required bundles from the storage area to the active production floor.
Keep the bundles sealed in their original packaging to prevent rapid condensation on the cold plastic.
Allow the material to rest for a minimum of 24 to 48 hours.
Verify the surface temperature of the strips matches the ambient temperature of the assembly line before unsealing.
Relative humidity directly impacts the moisture content of the profiles. The ideal relative humidity (RH) range for storage facilities sits between 45% and 65%. This specific range keeps the polyamide at an optimal equilibrium, preventing both winter brittleness and summer swelling.
Parameter | Optimal Range | Risk of Low Value | Risk of High Value |
|---|---|---|---|
Temperature | 15°C to 25°C | Extreme brittleness, shattering under pressure | Material softening, rack sagging, accelerated aging |
Relative Humidity | 45% to 65% | Moisture loss, loss of elasticity, cracking | Moisture absorption, dimensional swelling, jamming |
High-humidity climates require aggressive mitigation strategies. Warehouses should implement dehumidification zones to pull excess moisture from the air. Using sealed vapor-barrier packaging helps isolate the profiles from humid ambient conditions until the exact moment they are ready for use on the line.
Arid climates and winter heating months present the exact opposite problem. Industrial heating systems severely dry out warehouse air. Facilities must prevent the material from drying out completely. Strategies include utilizing industrial humidifiers in the storage zone or keeping the strips tightly wrapped in moisture-retaining plastic sleeving.
Prolonged exposure to direct sunlight damages polyamide permanently. High-intensity industrial UV lighting also degrades the polymer chains in Thermal Break Strips for Aluminium Windows. UV radiation breaks down the chemical bonds, weakening the structural integrity of the material before it even enters the window frame.
Symptoms of UV degradation are visually apparent to a trained eye. The surface of the strip may exhibit chalking or a powdery residue. Discoloration, often a fading or yellowing of the standard black profile, indicates advanced photodegradation. This leads to a severe loss of impact resistance during the knurling phase.
Raw material warehouses need proper lighting and window-shielding solutions. Apply UV-blocking films to warehouse skylights and exterior windows. Replace high-UV industrial bulbs with LED alternatives. Keep inventory covered with opaque tarps if you must store it near open loading dock doors.
Physical storage must maintain absolute linear straightness. Automated insertion equipment operates with incredibly tight tolerances. Even minor bowing prevents the strip from sliding smoothly into the aluminum extrusion, causing immediate line stoppages and damaged material.
Flat-bed storage is vastly superior to cantilever racking. Flat beds provide continuous support along the entire length of the profile. If you must use cantilever racks, the support arms must be spaced closely together to distribute the weight evenly and prevent sagging.
Specify the maximum allowable distance between support arms to prevent deflection. Supports should be placed every 1 to 1.5 meters. Horizontal storage is strictly mandated across the industry. Explicitly advise your forklift operators and warehouse staff against vertical leaning, as gravity will permanently bow the profiles over time.
OEM packaging plays a vital role in maintaining micro-climates around the extrusions. Plastic sleeving, wooden crates, and cardboard bundling protect the profiles from dust, UV light, and rapid humidity changes. This packaging acts as your first line of defense during transit and long-term storage.
Establish strict rules for unsealing inventory on the shop floor. Packages should only be opened immediately prior to the assembly shift. Exposing the strips to ambient warehouse air days before production invites unwanted moisture absorption or moisture loss.
Re-seal partial bundles carefully to protect your remaining inventory. If a shift ends with unused strips, tape the plastic sleeving shut immediately. Ensure the ends are completely covered to prevent air circulation through the bundle overnight.
Thermal break profiles have a limited shelf life. Depending on the manufacturer and your specific storage conditions, this typically ranges from 6 to 12 months. Beyond this period, the material may experience irreversible dimensional changes or mechanical degradation that ruins your assembly process.
Structure your warehouse management systems (WMS) to enforce strict FIFO protocols. Newly arrived batches should always be placed behind older stock. Color-coded date tags help forklift operators easily identify which bundles need to be pulled for production first.
Poor rotation leads directly to material obsolescence. The financial impact includes scrapping expired inventory and dealing with assembly failures caused by aged, brittle strips. Proper FIFO management directly protects your manufacturing margins.
Swollen or warped strips jam automated insertion equipment instantly. When a strip absorbs too much moisture, its overall width increases. This causes severe friction inside the aluminum cavity, forcing operators to manually hammer the strips, which slows down production and damages the profile.
Dimensional instability creates a cascading effect on the knurling process. If the strip is too wide or too narrow, it prevents adequate tooth engagement in the aluminum cavity. The knurling wheels cannot grip the polyamide properly, leading to a weak mechanical bond that will fail under wind load.
Improperly stored strips are highly vulnerable to over-compression during rolling. Weakened by moisture or made brittle by dry conditions, the material cannot withstand the heavy pressure of the assembly machines. The knurling discs will simply crush the profile walls instead of gripping them.
Structural failure occurs when fastening hardware or joining mitered corners. Cracking or thread stripping happens if the polyamide has lost its elasticity due to poor storage. The screws fail to bite into the material, compromising the corner joint of the entire window frame.
Over-tightening or over-compressing the thermal break severely reduces its designed insulating properties. Crushing alters the profile shape, reducing the critical air gap inside the chamber. This physical damage creates thermal bridges, defeating the entire purpose of the component.
Overly dry or cold strips fail catastrophically under the high pressure of the crimping discs. The lack of internal moisture makes the polyamide stiff and unyielding. Instead of flexing slightly under pressure, the material fractures and splinters.
Micro-cracks compromise the shear strength of the final composite profile. These tiny fractures may not be visible to the naked eye during assembly. However, once the window is installed and subjected to building movement and wind loads, these cracks propagate, leading to structural separation of the aluminum halves.
Visual/Physical Defect | Likely Storage Cause | Impact on Assembly |
|---|---|---|
Profile is too wide (swollen) | High humidity exposure | Jams insertion equipment, slows production |
Shattering during crimping | Extreme cold or low humidity | Total structural failure, scrapped material |
Surface chalking/fading | Prolonged UV exposure | Loss of impact resistance, weak joints |
Permanent bowing | Vertical storage or uneven racks | Cannot feed into automated machinery |
Pre-assembly storage failures directly connect to end-user complaints. Reduced thermal insulation performance and thermal bridging occur when the internal structure of the strip is compromised. The window fails to meet its advertised U-value, leading to failed building inspections.
Micro-fractures and profile warping lead to localized temperature drops on the frame. This causes condensation breakthrough on the interior aluminum surface. Homeowners will notice water pooling on their sills during winter months, leading to mold and drywall damage.
Fenestration manufacturers face severe liability, recall costs, and warranty risks. Failing to control raw material quality leads to systemic product failures in the field. Replacing installed windows due to shattered thermal breaks is a catastrophic expense that can ruin a manufacturer's reputation.
Define clear inspection steps upon delivery at your loading dock. Check for sealed packaging, physical damage to crates, and manufacturing date stamps. Reject shipments that arrive with torn plastic sleeving or visible water damage, as the material is likely already compromised.
Utilize moisture-indicator cards or electronic testing equipment immediately. Verify the raw material's moisture content at receipt. This establishes a baseline and ensures the supplier shipped the material within acceptable tolerances before you accept the load into your inventory.
Audit your current storage environments using a structured checklist. Deploy data loggers to track temperature and humidity fluctuations over a full 24-hour cycle. Conduct rack levelness checks using laser levels to ensure horizontal supports are perfectly flat and aligned.
Compare the specifications of different thermal break suppliers. Review their stated storage tolerances carefully. Ensure your facility can consistently maintain the environment required by your specific material vendor before committing to large volume orders.
Analyze the capital expenditure (CAPEX) of building dedicated, climate-controlled storage. Compare this against the operational expenditure (OPEX) of high scrap rates, assembly line downtime, and product returns. Often, the cost of climate control is quickly offset by the massive reduction in wasted material and labor.
Consider scalability as your production volume increases. A small facility might manage with localized humidifiers and space heaters, while a high-volume plant requires a fully enclosed, HVAC-regulated warehouse zone specifically built for raw extrusions.
Outline mandatory pre-production tests before strips enter the line. Conduct visual inspections for bowing, twisting, and surface chalking. Verify moisture content using handheld meters to ensure the strips are actually ready for processing.
Define strict criteria for rejecting a batch on the floor. Test-roll a sample batch through the knurling and crimping machines. If the sample cracks, crushes, or fails shear testing, quarantine the entire pallet immediately and adjust your acclimatization protocols.
Deploy temperature and humidity data loggers in all current raw material storage areas to establish an environmental baseline.
Conduct a physical audit of your racking systems using a laser level to ensure horizontal support intervals do not exceed 1.5 meters.
Implement a strict incoming quality control checklist to verify packaging integrity and test moisture content upon delivery at the loading dock.
Establish a mandatory 24-hour to 48-hour acclimatization period for all profiles moving from cold storage to the active production floor.
A: Thermal break strips typically have a shelf life of 6 to 12 months. This duration heavily depends on environmental variables. Maintaining optimal temperature (15°C to 25°C) and humidity (45% to 65%) while keeping the strips in their original UV-protective packaging extends their viability. Older stock becomes highly susceptible to dimensional changes, moisture loss, and brittleness, which leads to assembly failures.
A: High humidity causes reversible moisture absorption, leading to dimensional swelling and softening. While you can dry the moisture out, the physical warping that occurs while the strip is swollen and resting on uneven racks is often irreversible. Swollen strips will jam insertion equipment and must be acclimatized to proper humidity levels before you attempt to use them on the line.
A: No. Warped strips experience plastic deformation and cannot be reliably straightened. Forcing a bowed strip into an automated insertion machine will cause severe jams, line downtime, and weak mechanical bonds. You must scrap warped profiles to protect the structural integrity and thermal performance of the final window frame.
A: The ideal storage temperature ranges strictly from 15°C to 25°C. Thermal stability is critical to prevent the polyamide from undergoing rapid expansion or contraction. Extreme cold makes the material brittle and prone to shattering during crimping, while extreme heat softens the profile and accelerates polymer degradation on the racks.
A: Winter storage often involves a severe drop in both ambient temperature and humidity, especially in heated warehouses. This dry environment pulls moisture out of the hygroscopic polyamide. The loss of internal moisture, combined with cold temperatures, drastically reduces polymer flexibility, causing the strips to crack and splinter under the pressure of assembly machines.
A: You must store strips strictly horizontally. Vertical leaning causes gravity to pull on the flexible material, resulting in permanent bowing over time. Horizontal flat-bed storage with support intervals every 1 to 1.5 meters is required to prevent sagging and maintain the linear straightness needed for automated assembly.
A: Yes. Strips that are structurally compromised by bad storage—either too brittle from cold or too soft from moisture—are easily crushed during assembly. Over-compressing damages the internal geometry of the profile, leading to a severe loss of insulating efficiency, thermal bridging, and compromised frame stability under wind load.
