Modern window fabrication faces a demanding core engineering tension today. Manufacturers must achieve stringent energy efficiency standards without compromising the structural integrity of the aluminium profile. Maintaining daily manufacturing viability remains equally crucial on the production floor. Specifying the width of Thermal Break Strips For Aluminium Windows is never a simple "wider is always better" scenario. You must calculate complex trade-offs carefully. These involve balancing thermal transmittance, shear strength, and physical hardware cavity constraints. Every millimeter directly impacts both insulation performance and long-term physical stability.
This comprehensive guide breaks down the essential evaluation criteria and structural realities you need to understand. We will explore the hidden implementation risks required to select the optimal strip width confidently. You will learn exactly how to make informed specification decisions for commercial buildings. We also cover strategies for high-performance residential projects to ensure long-lasting success.
Width vs. Performance: Increasing strip width exponentially improves thermal insulation (lowers Uf-value) but alters the structural load-bearing capacity of the profile.
Standard vs. Extreme Climates: Standard widths (14.8mm–24mm) suit moderate climates and standard double-glazing, while ultra-wide strips (30mm–44mm+) are necessary for Passive House standards and extreme temperature differentials.
Production Realities: Wider strips demand stricter manufacturing tolerances, advanced knurling/rolling equipment, and often require multi-cavity designs (e.g., adding foam inserts) to prevent internal convection.
Compliance First: Final selection must be anchored to local building codes (e.g., NFRC, CE marking) and specific wind-load calculations for the project context.
The width of the polyamide strip serves a very specific physical function. It dictates the exact distance separating the inner and outer aluminium extrusions. This separation effectively disrupts the thermal bridge across the metal frame. Heat cannot easily travel from the warm interior to the cold exterior. A wider PA66 GF25 strip creates a longer pathway for heat transfer. This natural elongation drastically improves the energy efficiency of the entire window system.
However, you face a harsh structural reality during design. Engineers observe an inverse relationship between strip width and shear strength. As the polyamide strip gets wider, the composite profile loses some inherent rigidity. It becomes more susceptible to deflection under heavy wind loads. The massive weight of modern triple-glazed units exacerbates this deflection risk. The aluminium halves can subtly shift independently if the structural connection weakens. You must compensate for this loss of shear strength mechanically.
Furthermore, widening the thermal barrier introduces unavoidable cost factors. Wider strips simply require more raw polyamide material per meter. They force you to design larger overall aluminium profiles to accommodate the expanded cavity. You will also need specialized tooling to extrude and assemble these oversized components. All these factors combine to increase the final per-square-meter cost of the window system. Manufacturers must weigh these upfront material expenses against the desired energy rating.
You can observe a direct correlation between component width and insulation capability. Wider strips reliably lower the frame's thermal transmittance rating. Manufacturers match specific widths to target U-values during the design phase. For example, hitting rigorous Passive House standards often requires specifying widths of 34mm or more. This helps push the frame Uf-value below the critical 0.8 W/(m²K) threshold. Achieving these targets is essential for modern green building certifications.
We must add a skeptical note regarding simple expansion. Simply widening the strip yields diminishing returns if you ignore internal cavity optimization. Air can circulate freely inside an overly wide hollow cavity. These natural convection currents facilitate unwanted heat transfer across the gap. You might add ten millimeters of width but see minimal U-value improvement. You must disrupt these internal air currents to maximize the strip's true potential.
Modern architectural trends demand massive glass panes. Weight-bearing requirements therefore dictate many structural decisions. Triple glazing inherently requires stronger, highly stable frame profiles. You must carefully calculate the thermal break strip's I-value, or moment of inertia. Standard flat strips often lack the rigidity needed for heavy dynamic loads.

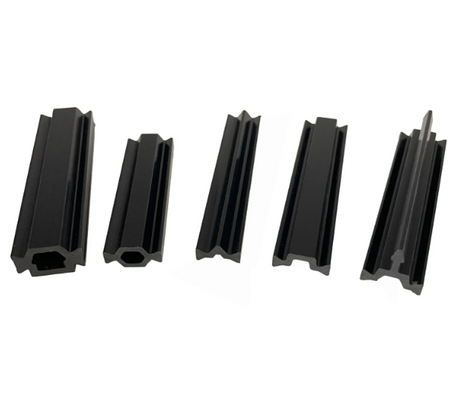

Manufacturers actively mitigate weakness in wider strips through clever engineering. They avoid simple flat shapes for widths exceeding 24mm. Instead, they use complex geometries to restore structural integrity. C-shaped designs add significant bending resistance against wind pressure. Hollow-chamber polyamide strips provide excellent torsional stability while maintaining the thermal barrier. These advanced shapes ensure the frame handles heavy glass without warping.
You must examine the impact of strip width on hardware integration. The thermal barrier often forms the base of the European standard hardware groove. Expanding the central cavity can inadvertently alter locking point alignments. Custom hardware cavities face similar disruption risks during profile expansion.
Ensure the selected width leaves adequate spatial tolerances. You need precise room for complex locking mechanisms and concealed hinges. Proper drainage paths must also remain unobstructed by the widened polyamide. Failing to verify these dimensions usually forces a complete redesign of the proprietary aluminium extrusion. This oversight delays production schedules and drastically inflates development budgets.
Selecting between standard and ultra-wide Window Insulation Bars dictates your market positioning. We have broken down the capabilities of each category below. This helps align your product offerings with specific climatic and architectural demands.
Window Performance Width Comparison Matrix
Category | Width Range | Ideal Climate | Glazing Compatibility | Primary Advantage |
|---|---|---|---|---|
Standard | 14.8mm – 24mm | Moderate / Temperate | Double Glazed Units | High shear strength, cost-effective |
Wide / Ultra-Wide | 27mm – 44mm+ | Extreme Cold / High Heat | Heavy Triple Glazed | Maximum thermal resistance |
Standard widths represent the backbone of the commercial aluminium window industry. They perfectly suit moderate climates experiencing mild seasonal variations. Most standard commercial projects rely heavily on this dimension range. These sizes integrate seamlessly with conventional double-glazed insulated glass units. They offer a reliable baseline for general energy code compliance.
The pros of standard widths are primarily operational. They are highly cost-effective to produce and inventory. Assembly requires only standard tooling and basic calibration on the factory floor. They maintain excellent shear strength without requiring complex multi-chamber shapes. Operators find them exceptionally easy to roll and crimp securely into the aluminium pockets.
However, the cons restrict their usage in high-end projects. Standard strips cannot meet ultra-low energy building standards. They simply lack the physical distance to stop aggressive thermal bridging. In severe winter climates, frames using standard widths are highly prone to interior condensation. The inner metal face becomes cold enough to reach the dew point.
Ultra-wide strips represent the pinnacle of modern thermal management. They are explicitly designed for extreme climates featuring high heat or deep freezes. Passive House projects universally specify components in this expanded size range. They also provide the structural foundation for heavy triple-glazed acoustic windows. The massive separation is critical for elite energy performance.
The pros center entirely on maximizing insulation metrics. They deliver the maximum possible thermal resistance for metal window frames. This extreme width virtually eliminates interior condensation risks in punishing conditions. Homeowners enjoy comfortable, dry window frames even during blizzard conditions. They also improve acoustic dampening by physically separating the interior and exterior metal masses.
The cons revolve around manufacturing complexity and investment. They carry noticeably higher material and manufacturing costs. Factory lines require precision knurling to prevent profile bowing during assembly. The bimetallic effect becomes a major risk when binding two widely separated metal halves. Managing thermal distortion demands advanced assembly techniques and strict quality control protocols.
You must prepare for specific implementation risks when upgrading your profile designs. The factory floor presents several physical challenges when handling ultra-wide thermal barriers.
The Bimetallic Effect: You face severe risks of the aluminium profile bowing under stress. The interior metal might sit in a heated 22°C room. The exterior metal might face -10°C freezing winds. This massive temperature difference causes uneven thermal expansion. Wider strips naturally exacerbate this distortion because the halves act more independently. You must mitigate this by using specialized flexible or sliding thermal breaks. These allow slight lateral movement without compromising the structural bond.
Tooling and Assembly Adjustments: Upgrading to a wider strip is rarely a simple plug-and-play operation. You cannot simply feed a 34mm strip into a machine set for 14.8mm. It requires carefully recalibrating your knurling and rolling machines. The knurling wheels must cut precise grooves into the aluminium pocket. The rolling discs must apply the exact pressure needed. The teeth must bite correctly into the polyamide without cracking the brittle plastic base.
Cavity Convection Mitigation: We mentioned internal air circulation earlier. You must actively combat this in wide cavities. Highlight the absolute necessity of combining wide strips with additional insulators. Manufacturers routinely inject polyurethane (PU) foam inserts between the polyamide strips. Alternatively, they use multi-chamber polyamide designs with internal webbing. Both methods successfully prevent heat transfer via air circulation within the wide gap.
Failing to address these manufacturing realities leads to high rejection rates. Profiles may fail corner cleat alignment checks. Water ingress can occur if rolling pressure is insufficient to seal the joint.
Choosing the correct width requires a methodical, step-by-step approach. Follow this structural framework to ensure your final specification meets all project demands.
Step 1: Define Compliance Minimums. Never start with guesswork. Start immediately with the mandatory U-value targets for the project. Review the condensation resistance factors dictated by regional building codes. Check NFRC ratings or CE marking requirements specific to the installation site. These legal minimums dictate your absolute baseline starting width.
Step 2: Calculate Load Requirements. You must cross-reference your thermal goals with structural realities. Consult the structural engineer’s wind load calculations. Verify the maximum glass weight limits for the intended sashes. If the wind load is exceptionally high, you may need a slightly narrower, stronger strip. Alternatively, you must specify a complex hollow-chamber geometry for an ultra-wide strip.

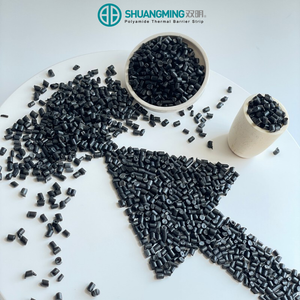

Step 3: Evaluate Vendor PA66 Quality. The quality of the raw material determines the system's longevity. Ensure the chosen width is manufactured using virgin PA66. It must contain exactly 25% glass fiber (GF25). This precise mixture guarantees linear expansion compatibility with the surrounding aluminium. Avoid cheap, generic plastics. They will warp, crack, or lose structural grip under thermal cycling.
Step 4: Execute Prototyping. Never move straight to mass production. We highly recommend ordering sample profiles first. Conduct a rigorous corner-cleat assembly test on the factory floor. Verify the structural rigidity and corner alignment. Ensure your crimping machines can handle the expanded profile without distorting the metal walls.
Choosing the right width for your thermal break is a precise calculation, not a random guess. Every millimeter added improves your U-value but directly challenges the profile's shear strength. Successful deployment requires balancing your aggressive energy ambitions with realistic manufacturing capabilities. You must prioritize structural safety just as highly as thermal efficiency.
We encourage you to take a data-driven approach to your next window system design. Do not rely solely on basic width charts. Consult with a specialized thermal break supplier or structural engineer early in the process. Ask them to run professional thermal simulations using flixo or THERM software. Base these simulations on your specific width proposals and cavity designs. This proactive modeling ensures your aluminium windows perform flawlessly in the real world.
A: No. Focus heavily on extrusion compatibility and your tooling limits first. Upgrading usually requires a complete profile redesign. You must enlarge the aluminium cavity, adjust hardware grooves, and modify drainage paths to fit the wider strip.
A: This is entirely context-dependent on indoor humidity and outdoor temperatures. However, a 14.8mm width typically serves as the reliable baseline for preventing condensation in standard moderate climates.
A: Yes, wider strips can reduce the profile's overall shear strength. Manufacturers offset this structural weakness by adding 25% glass fibers to the polyamide and utilizing complex, multi-chamber geometric designs.
A: PA66 GF25 has a matching coefficient of thermal expansion to aluminium. This precise matching prevents the materials from separating or causing structural failure during extreme daily temperature fluctuations.
