PA66GF25 Window Insulation Bars

He coefficient of thermal expansion (CTE) of Noise Reduction Thermal Barrier Strips is remarkably close to that of aluminum alloy (PA66 GF25 ~ 3.0 × 10⁻⁵ /K vs. aluminum alloy ~ 2.3 × 10⁻⁵ /K). This compatibility is absolutely critical, as it ensures synchronous thermal expansion and contraction between the thermal barrier and adjoining aluminum profiles during temperature fluctuations. Such dimensional harmony effectively prevents structural deformation, cracking, or seal failure caused by excessive differential expansion.Additionally, PA66 GF25 demonstrates excellent dimensional stability, resisting significant size variations due to moisture absorption or temperature changes.

Availability:

Quantity:



Inquire Add to Basket

PA66GF25 Window Insulation Bars Impact-Resistant PA66GF25 Window Insulation Bars Corrosion-Resistant PA66GF25 Window Insulation Bars High-Tensile PA66GF25 Window Insulation Bars Abrasion-Resistant PA66GF25 Window Insulation Bars Non-Toxic PA66GF25 Window Insulation Bars Eco-Friendly PA66GF25 Window Insulation Bars Efficient PA66GF25 Window Insulation Bars

Product Description

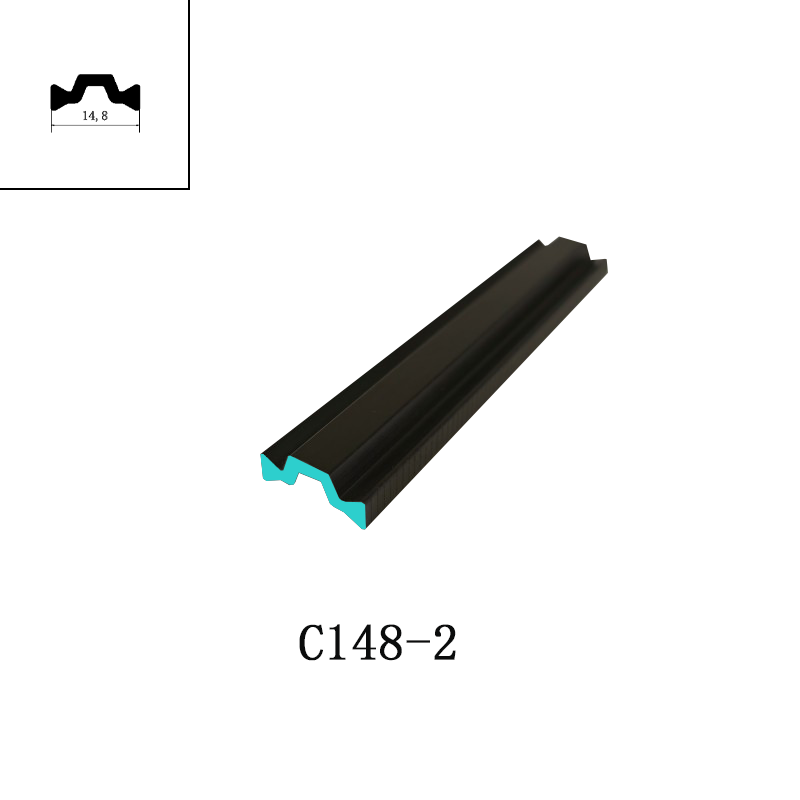

Model NO.	SM-C148-2	Customized	Customized
Material	Polyamide66 Reinforced by 25%Glass Fiber	Color	Single Color（Black）
Application	for Thermal Break Aluminum Profile	Raw Material	PA66 GF25 Granules
Markets Served	Windows & Doors	Technical Performance	GB/T 23615.1-2009
Print	Customized Laser Printing	Transport Package	Roll or Linear
Material Properties	High Temp Resistance （≥220 °C）	HS Code	3926909090

PA66GF25 Thermal Break Strip provide the optimal wind load resistance solution for high-rise curtain wall systems.

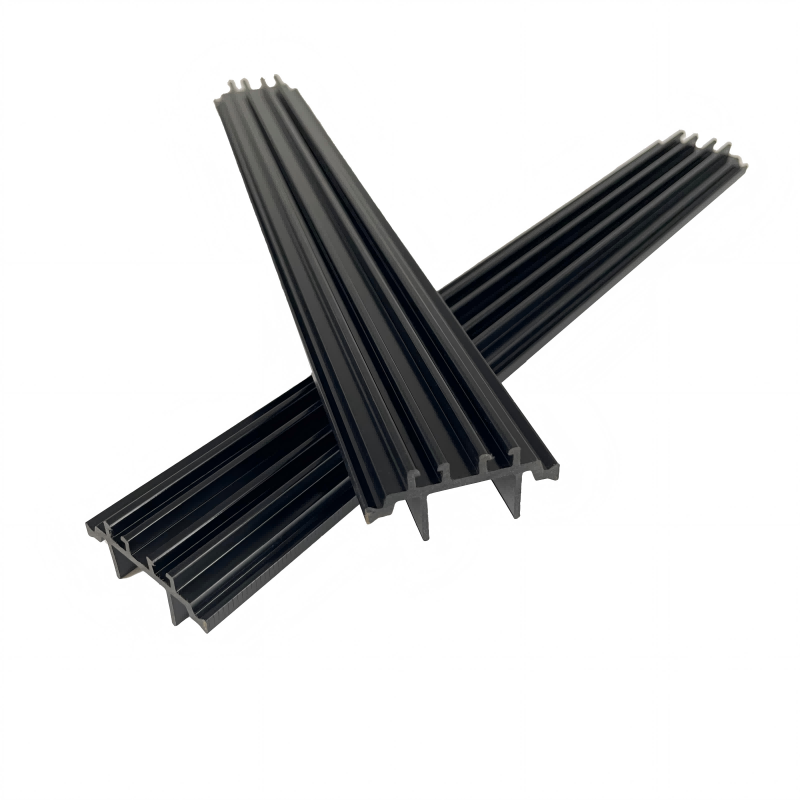

17(1)

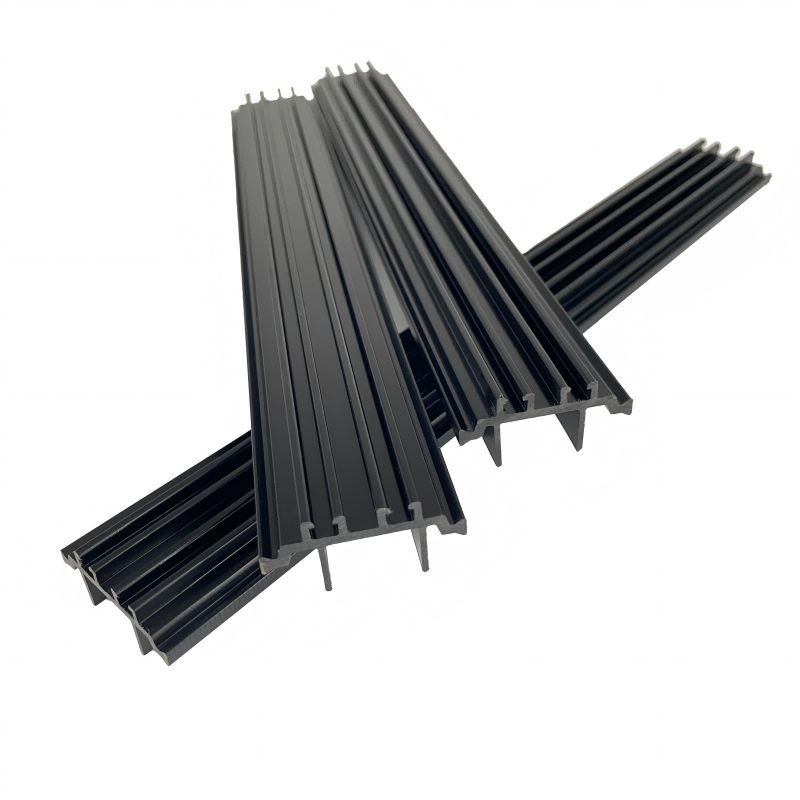

18(1)

Product Introduction

PA66GF25 Window Insulation Bars are engineered to offer superior performance and longevity in window and door insulation applications. These bars are designed with an impact-resistant PA66GF25 window insulation bars structure, ensuring they maintain their integrity even under mechanical stress. Their corrosion-resistant PA66GF25 window insulation bars properties make them ideal for use in harsh environments, while the high-tensile PA66GF25 window insulation bars propertiesstrength ensures they can withstand heavy loads without deformation. Abrasion-resistant PA66GF25 window insulation bars and non-toxic PA66GF25 window insulation bars, these bars provide a safe and durable solution for modern construction projects.

One of the standout features of these PA66GF25 window insulation bars is their excellent compatibility with aluminum profiles, thanks to the close coefficient of thermal expansion (CTE). This ensures that the bars expand and contract at the same rate as the surrounding materials, preventing structural deformation, cracking, or seal failure caused by temperature fluctuations. Additionally, the eco-friendly PA66GF25 window insulation bars composition of the PA66GF25 provides a sustainable solution, while the efficient PA66GF25 window insulation bars insulation properties of these bars contribute to enhanced energy performance in any building project.

Thermal Break Polyamide Strip in Plastic Extruded Profile enable Passive House windows to achieve ultra-low U-values of ≤0.8 W/m²K.

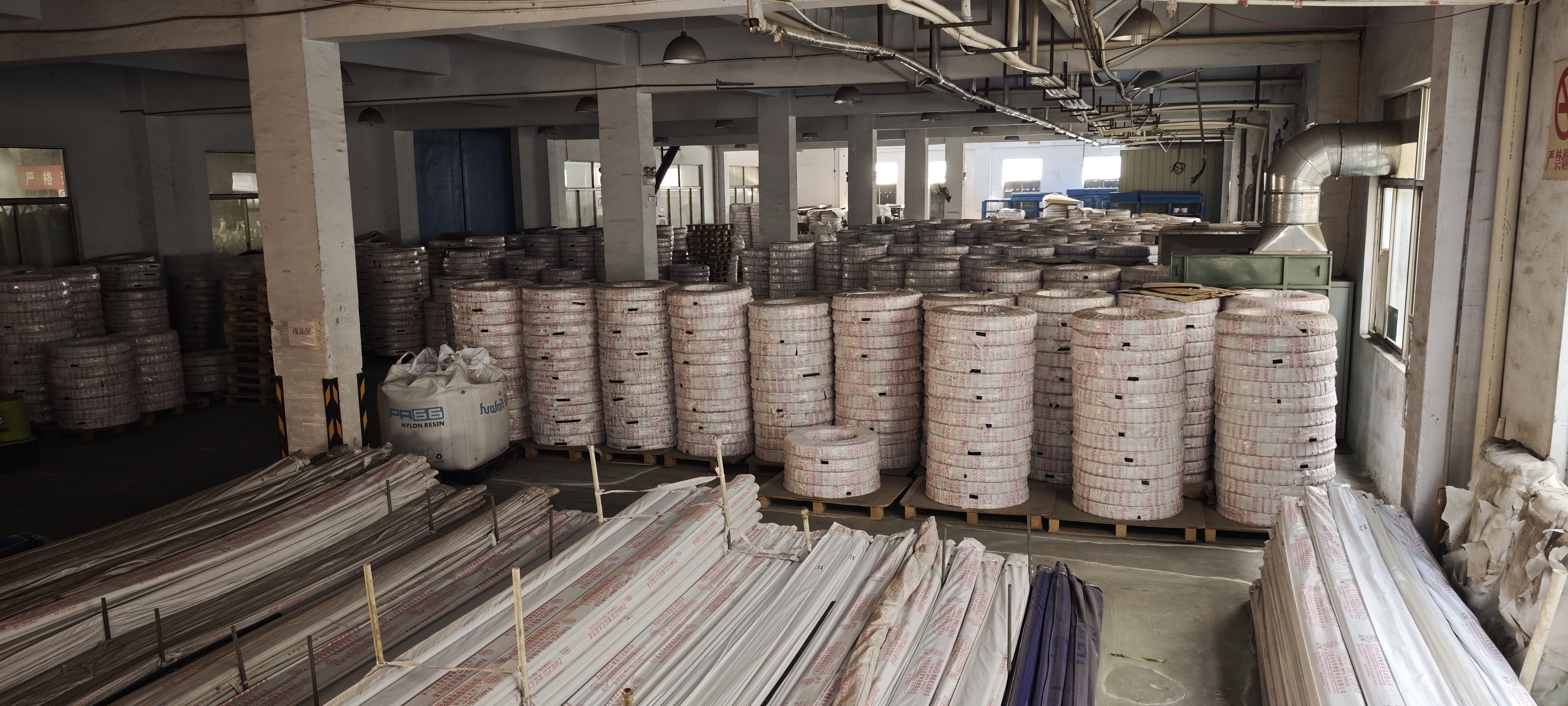

9bf90d8c82210fbf633a9d435467001

Product Advantage

PA66GF25 Fibre Glass Insulation Strips are manufactured with halogen-free and plasticizer-free raw materials, fully compliant with RoHS and REACH regulations, and are recyclable for sustainable material lifecycle management.
PA66GF25 Insulating Glazing Bars guarantee a creep deformation rate of <0.5% under sustained load (1000 hours at 70°C), ensuring long-term structural stability and dimensional integrity.
Compared to standard thermal breaks, Glass-Fiber Reinforced PA66 Thermal Profiles demonstrate approximately 70% higher tensile strength and 80% greater rigidity, delivering superior load-bearing capacity while significantly reducing deformation risks.
25% Glass-Filled PA66 Insulation Strips are ideally suited for applications demanding high strength and rigidity, such as automotive sunroof systems in the automotive industry.
PA66 + 25% Fiberglass Thermal Break strips maintain excellent dimensional stability under varying temperature and humidity conditions.

Thermal Barrier Black Nylon Strips serve as high-performance battery compartment materials in new energy vehicles, achieving UL94 V-0 flame retardancy – the highest industrial standard.

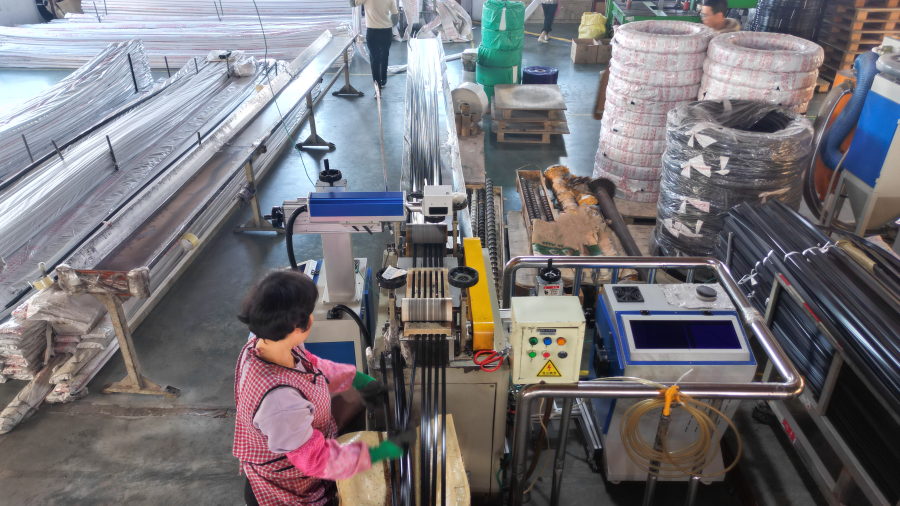

车间1

Technical Parameters

NO.	Item	Unit	GB/T 23615.1-2009	SM-Technical specification
1	Density	g/cm³	1.3±0.05	1.28-1.35
2	Linear expansion coefficient	K⁻¹	(2.3-3.5)×10⁻⁵	(2.3-3.5)×10⁻⁵
3	Vicat softening temperature	°C	≥230	≥240
4	Melting point(0.45MPa)	°C	≥240	≥255
5	Testing for tensile cracks	-	No cracks	No cracks
6	Shore hardness	-	80±5	80-85
7	Impact strength(Unnotched)	KJ/m²	≥35	≥40
8	Tensile strength(longitudinal)	MPa	≥80	≥84
9	Elasticity modulus	MPa	≥4500	≥4600
10	Elongation at break	%	≥2.5	≥4
11	Tensile strength(transverse)	MPa	≥70	≥80
12	High temperature tensile strength(transverse)	MPa	≥45	≥50
13	Low temperature tensile strength(transverse)	MPa	≥80	≥85
14	Water resistance tensile strength(transverse)	MPa	≥35	≥45
15	Aging resistance tensile strength(transverse)	MPa	≥50	≥60

PA66 Thermal Break Strip Glass Fibre Reinforced maintain reliable performance in extreme cold climates, delivering uncompromised functionality at temperatures as low as -40°C.

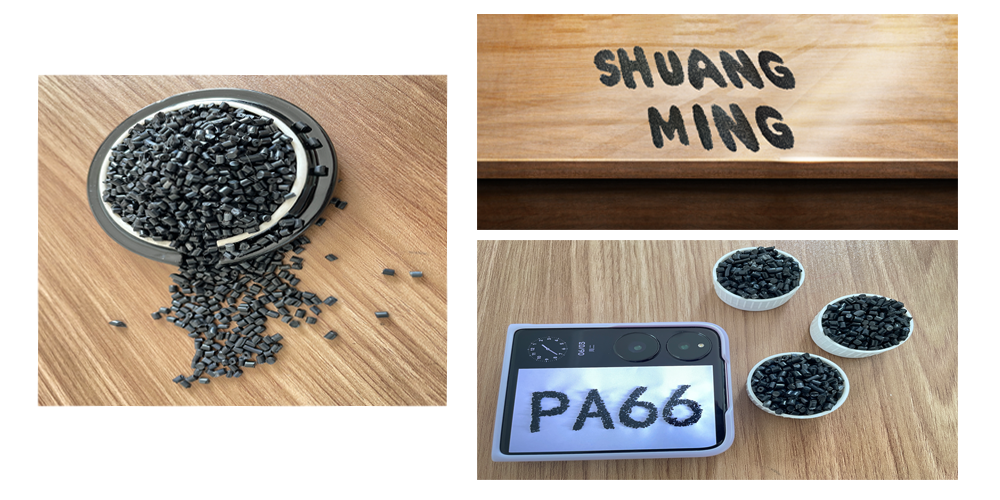

未标题-24
