Model NO. | SM-K290 | Color | Single Color（Black） |
Material | Polyamide66 Reinforced by 25%Glass Fiber | Raw Material | PA66 GF25 Granules |
Application | for Thermal Break Aluminum Profile | Technical Performance | GB/T 23615.1-2009 |
Markets Served | Windows & Doors | Transport Package | Roll or Linear |
Customized Laser Printing | Trademark | Shuangming | |
Customized | Customized | HS Code | 3926909090 |
Windows equipped with Glass-Filled Polyamide Insulation Strips demonstrate superior sound insulation performance compared to standard windows.
Custom Extruded Polyamide Profiles produced by Shuangming Plastic deliver exceptional performance and versatility, designed to meet the unique needs of various industrial and architectural applications. These energy-efficient custom extruded polyamide profiles are engineered to reduce heat transfer, providing a highly effective thermal barrier that enhances the energy efficiency of your building systems.
Thanks to their impact-resistant custom extruded polyamide profiles structure, these profiles are durable enough to withstand heavy mechanical stress, ensuring long-term reliability. Their eco-friendly custom extruded polyamide profiles construction makes them an ring long-term reliability. Their eco-friendly custom extruded polyamide profiles construction makes them an ideal choice for sustainable design, offering reduced environmental impact without compromising on strength or durability.
The heat-resistant custom extruded polyamide profiles are engineered to perform reliably in high-temperature environments, maintaining their structural integrity in extreme conditions. These profiles are also abrasion-resistant custom extruded polyamide profiles, making them highly resistant to wear and tear, even in demanding applications. With tailored custom extruded polyamide profiles, Shuangming Plastic ensures that each profile meets your specific design and functional requirements, providing a custom solution that fits your needs precisely.
Whether used in construction, industrial systems, or specialized applications, these custom extruded polyamide profiles offer an optimal balance of performance, sustainability, and longevity.
With nearly two decades of Polyamide 66 Thermal Break Profiles manufacturing expertise, Shuangming Company provides professional guidance throughout your product development process.
Nylon thermal barrier strips demonstrate superior aging and corrosion resistance, ensuring reliable performance in harsh environmental conditions.
The dimensional accuracy of thermal insulation strips (tolerance ≤0.05mm) ensures excellent airtightness in windows.
The service life of Fibre Glass Polyamide Insulation strips exceeds 40 years, reducing the need for future window renovation.
Shuangming boasts a team of technical experts capable of providing professional advice on Insulating Glazing Bars selection and window system design.
The superior mechanical properties of Thermal Insulation Profiles for Curtain Walls enable their wide application across various industries.

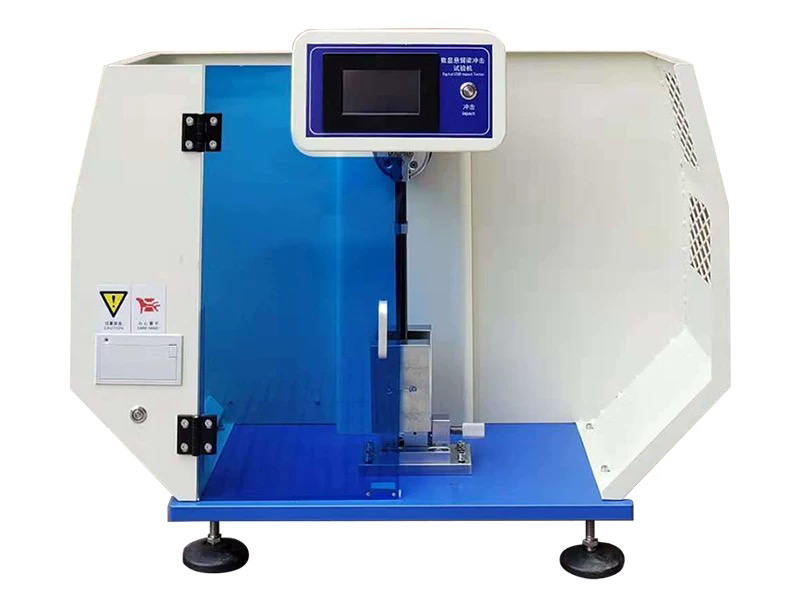

Shuangming Company Impact Strength Tester for Raw Materials to PA66GF25 Thermal Barrier Strips.
NO. | Item | Unit | GB/T 23615.1-2009 | SM-Technical specification |
1 | Density | g/cm³ | 1.3±0.05 | 1.28-1.35 |
2 | Linear expansion coefficient | K⁻¹ | (2.3-3.5)×10⁻⁵ | (2.3-3.5)×10⁻⁵ |
3 | Vicat softening temperature | °C | ≥230 | ≥240 |
4 | Melting point(0.45MPa) | °C | ≥240 | ≥255 |
5 | Testing for tensile cracks | - | No cracks | No cracks |
6 | Shore hardness | - | 80±5 | 80-85 |
7 | Impact strength(Unnotched) | KJ/m² | ≥35 | ≥40 |
8 | Tensile strength(longitudinal) | MPa | ≥80 | ≥84 |
9 | Elasticity modulus | MPa | ≥4500 | ≥4600 |
10 | Elongation at break | % | ≥2.5 | ≥4 |
11 | Tensile strength(transverse) | MPa | ≥70 | ≥80 |
12 | High temperature tensile strength(transverse) | MPa | ≥45 | ≥50 |
13 | Low temperature tensile strength(transverse) | MPa | ≥80 | ≥85 |
14 | Water resistance tensile strength(transverse) | MPa | ≥35 | ≥45 |
15 | Aging resistance tensile strength(transverse) | MPa | ≥50 | ≥60 |
Shuangming Company High-Performance Nylon Thermal Barriers strips

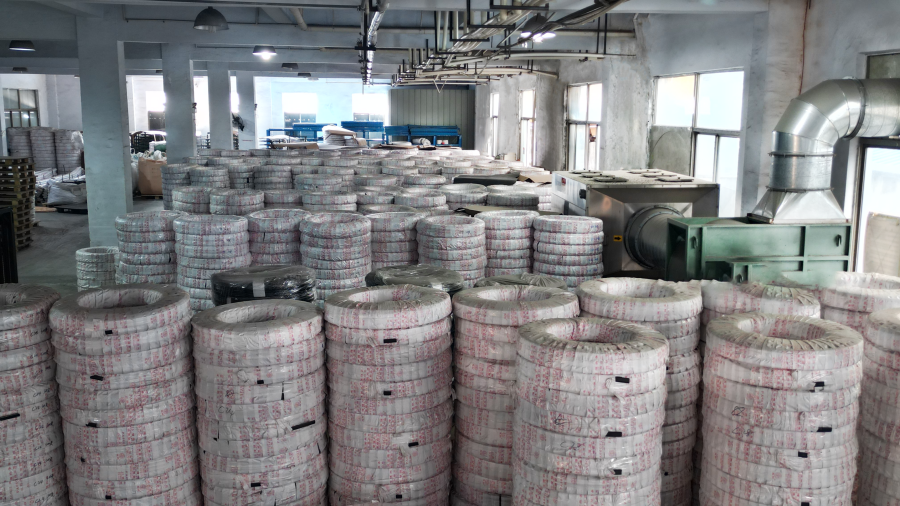

Finished Goods Warehouse.
