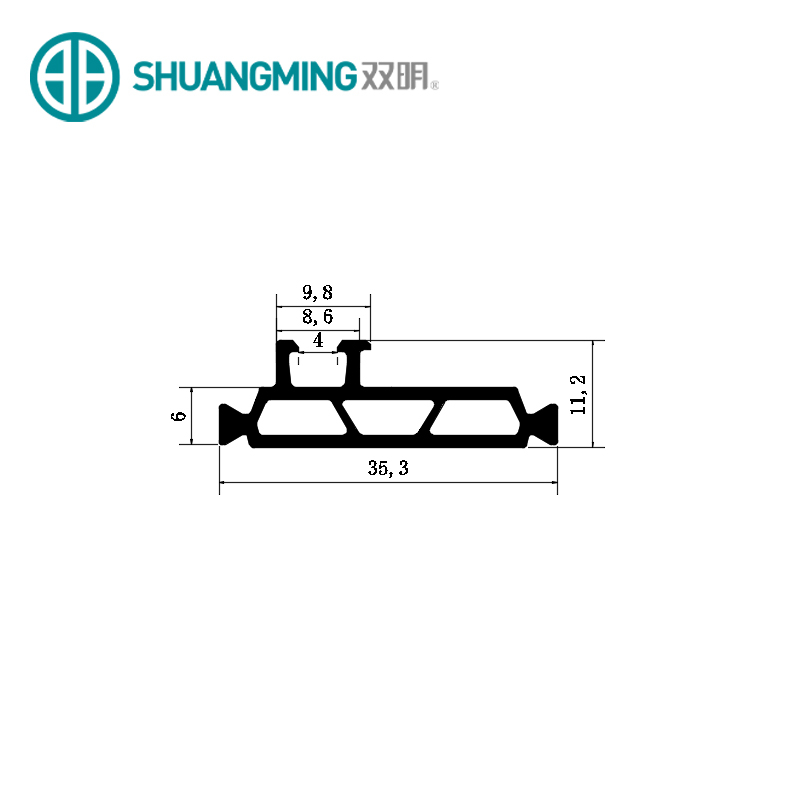

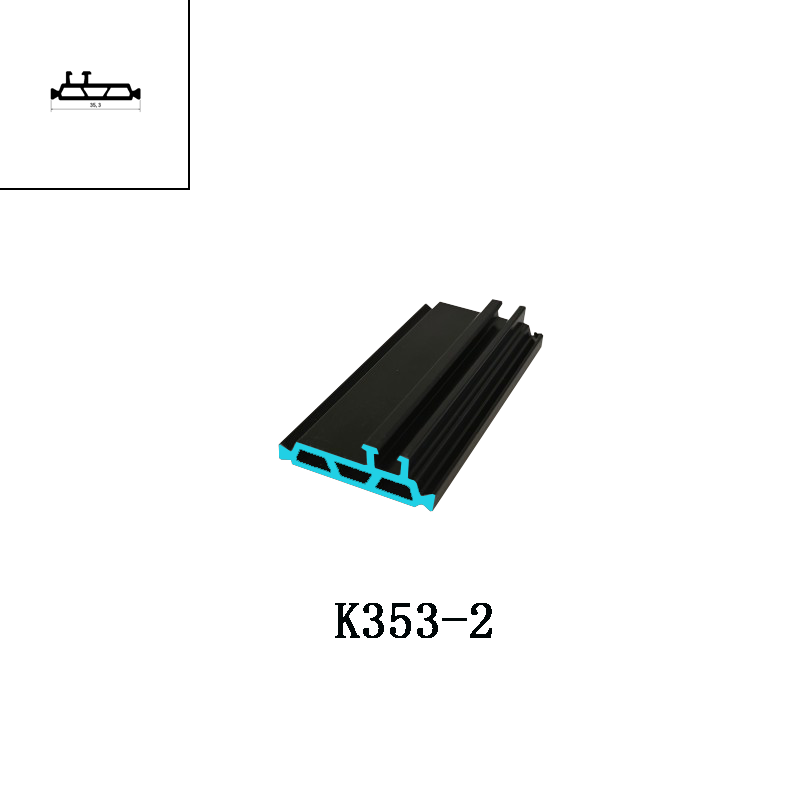

Model NO. | SM-K353-2 | Forming Way | Extrusion |
Material | Polyamide66 Reinforced by 25%Glass Fiber | Material Properties | High Temp Resistance （≥220 °C） |
Application | for Thermal Break Aluminum Profile | Customized | Customized |
Markets Served | Aluminium Windows & Doors | Raw Material | PA66 GF25 Granules |
Customized Laser Printing | Technical Performance | GB/T 23615.1-2017 | |
Origin | Jiangyin, China | Transport Package | Linear |
Formulated with nylon 66 matrix and 25% glass fiber reinforcement, PA66GF25 delivers exceptional engineering performance:

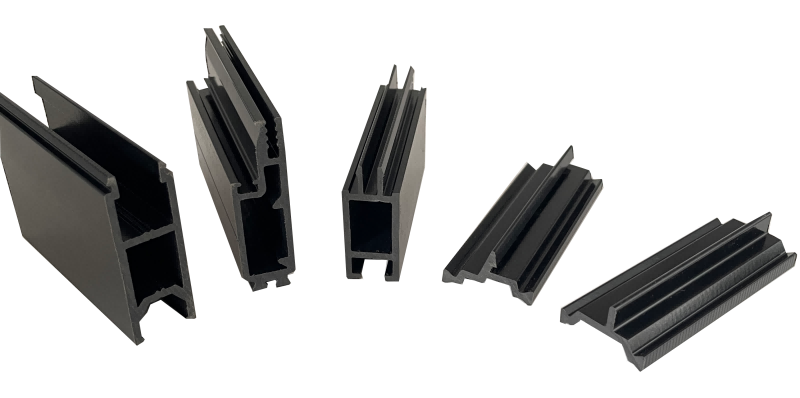

Shuangming Plastic's Polyamide 66 Thermal Break Profiles are engineered to offer exceptional performance in a variety of applications. Designed with Energy-efficient Polyamide 66 Thermal Break Profiles, our products help reduce energy consumption by minimizing heat transfer, providing an ideal solution for both residential and commercial projects focused on energy conservation.

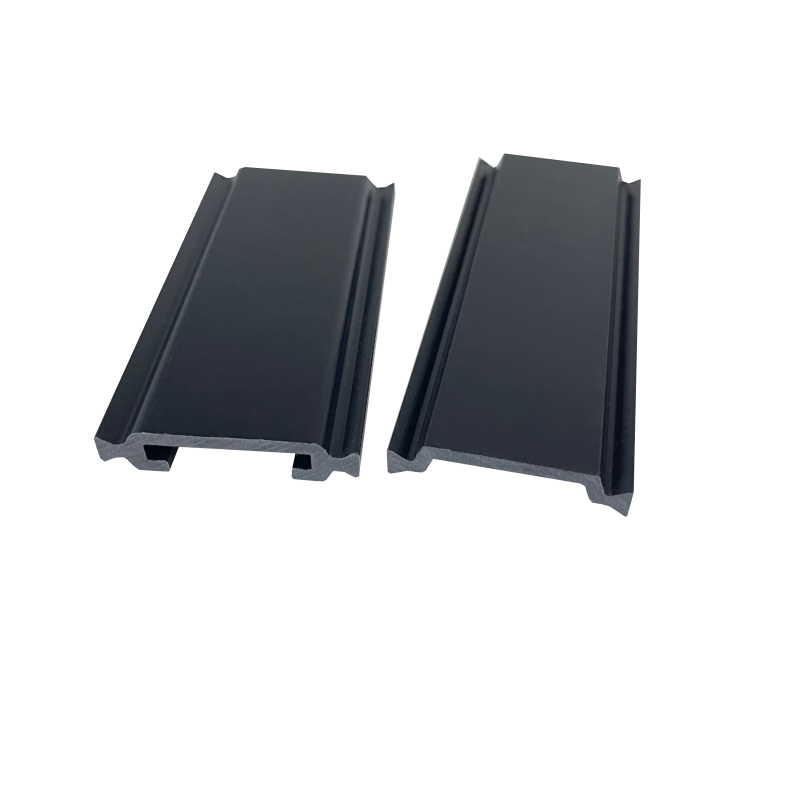

The polyamide nylon 66 thermal break strip employs co-extrusion molding technology, delivering a smooth, burr-free surface that forms an airtight seal with aluminum profiles. Meeting Class 1 air tightness standards, it enables easy installation without requiring additional sealing treatment.
Crafted from Eco-friendly Polyamide 66 Thermal Break Profiles, these products not only meet the highest thermal insulation standards but also support sustainability by utilizing materials that are kind to the environment. With our focus on durability, the Durable Polyamide 66 Thermal Break Profiles are built to endure extreme conditions, offering long-lasting performance even in harsh environments.
The High-strength Polyamide 66 Thermal Break Profiles provide enhanced mechanical strength, ensuring that your structures maintain their integrity under pressure, whether for windows, doors, or curtain walls. Additionally, these profiles are Weather-resistant Polyamide 66 Thermal Break Profiles, providing reliable protection against rain, wind, and other environmental factors, ensuring your building components stay intact and perform well over time.
For high-demand applications that require top-tier performance, our High-performance Polyamide 66 Thermal Break Profiles provide exceptional thermal insulation, making them perfect for energy-efficient buildings and structures that demand the best.

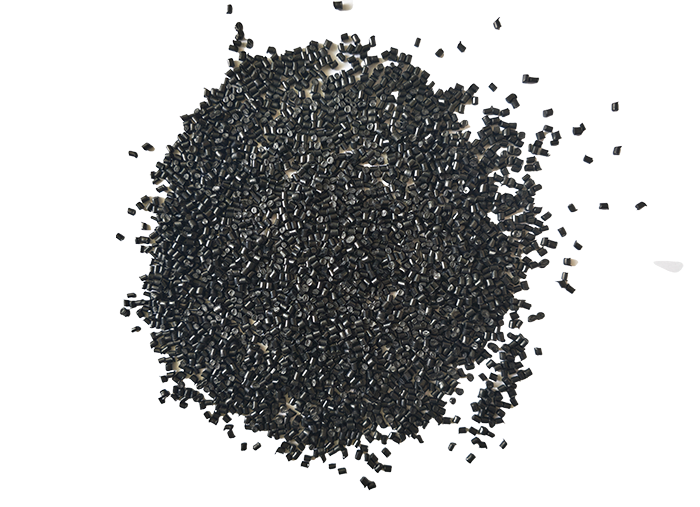

High-quality raw materials are the foundation for producing high-performance GF25 Reinforced Polyamide 66 Strips.
The application of Heat-Resistant Polyamide Spacer Bars in windows, doors, and curtain walls significantly reduces thermal emissions, contributing to ecological conservation.
Shuangming Company implements rigorous quality control from raw materials to finished Thermal Insulation Profiles for Curtain Walls,ensuring full accountability to both customers and product performance.
Professional mold suppliers and advanced manufacturing processes ensure finished thermal break strips maintain dimensional tolerances within ±0.05mm, while significantly extending mold service life.
Shuangming Company operates 20 dedicated Low Thermal Conductivity Polyamide Strips production lines, ensuring on-time delivery within agreed lead times.
We offer customized raw material formulations to ensure the finished Fire-Retardant Nylon Insulation Bars meet your specified performance requirements.
Shuangming Company implements a comprehensive quality assurance protocol spanning the entire production chain - from raw material inspection to final performance validation of Glass-Fiber Reinforced PA66 Thermal Profiles.
NO. | Item | Unit | GB/T 23615.1-2017 |
1 | Density | g/cm³ | 1.3±0.05 |
2 | Linear expansion coefficient | K⁻¹ | 25±2.5 |
3 | DSC Melting Peak Temperature | °C | ≥255 |
4 | Testing for tensile cracks | - | No cracks |
5 | Shore hardness | - | 80±5 |
6 | Impact strength(Unnotched) | KJ/m² | ≥50 |
7 | Tensile strength(longitudinal) | MPa | ≥90 |
8 | Elasticity modulus | MPa | ≥4500 |
9 | Elongation at break | % | ≥3 |
10 | Tensile strength(transverse) | MPa | ≥90 |
11 | High temperature tensile strength(transverse) | MPa | ≥55 |
12 | Low temperature tensile strength(transverse) | MPa | ≥90 |
13 | Water resistance tensile strength(transverse) | MPa | ≥85 |
14 | Aging resistance tensile strength(transverse) | MPa | ≥60 |
The polyamide nylon 66 thermal insulation strip is manufactured using co-extrusion technology.
