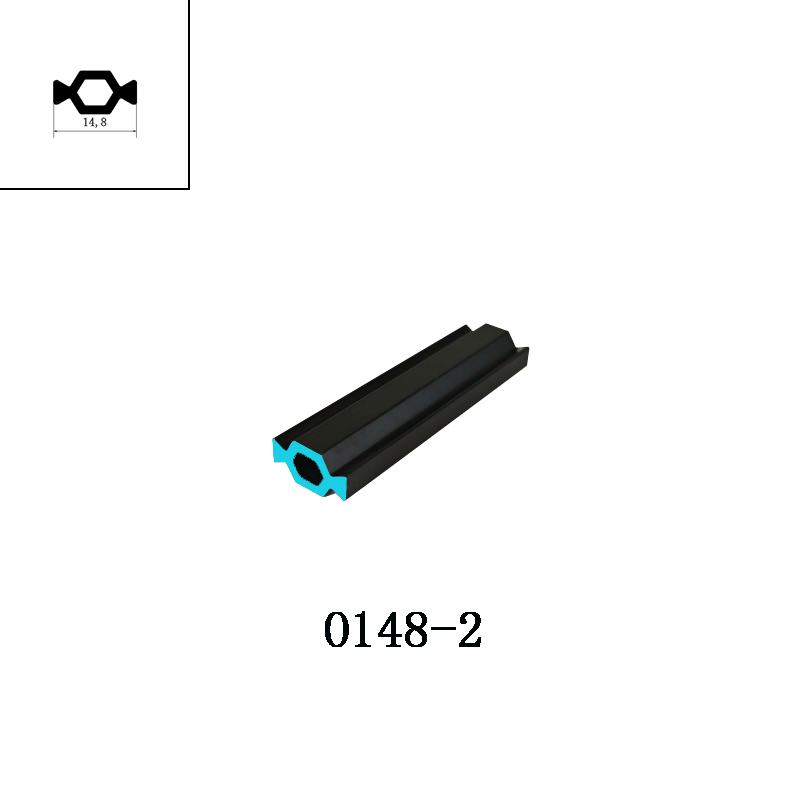

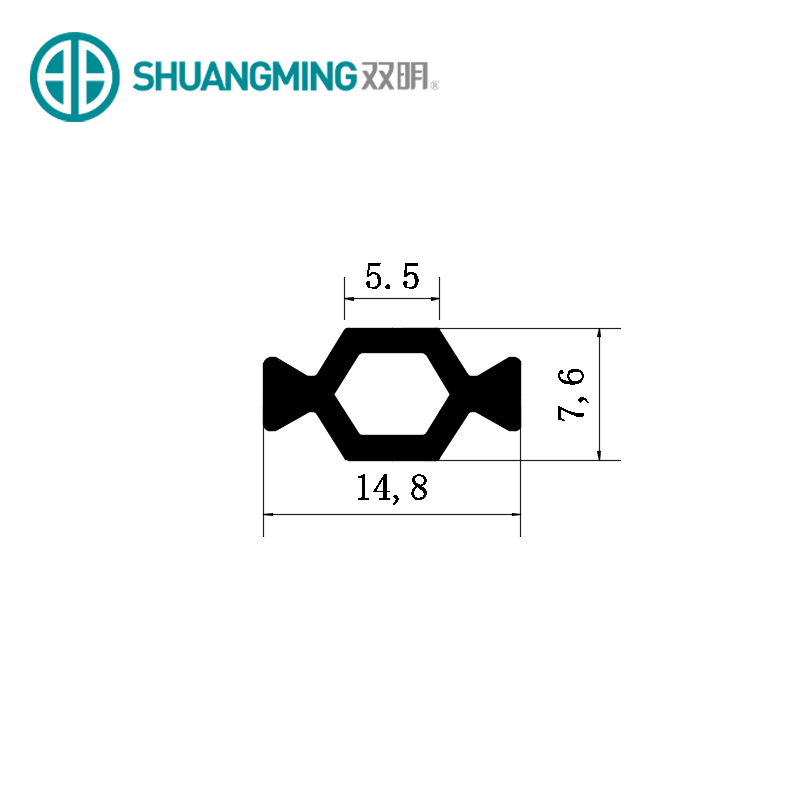

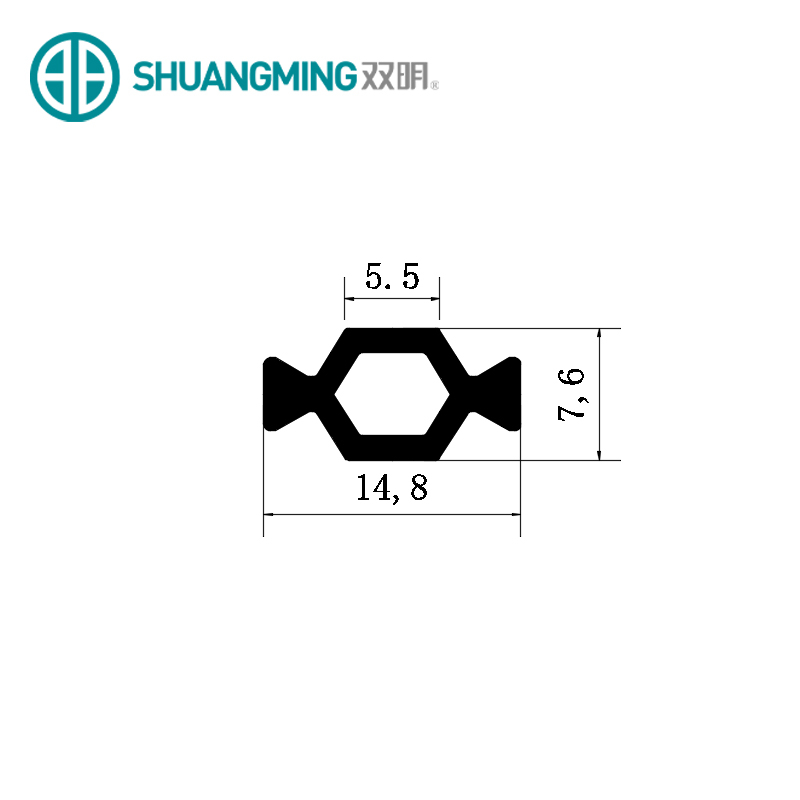

Model NO. | SM-O148-2 | Origin | Jiangyin, China |
Material | Nylon 66 GF25 | Material Properties | High Temp Resistance （≥220 °C） |
Application | for Thermal Break Aluminum Profile | Technical Performance | GB/T 23615.1-2017 |

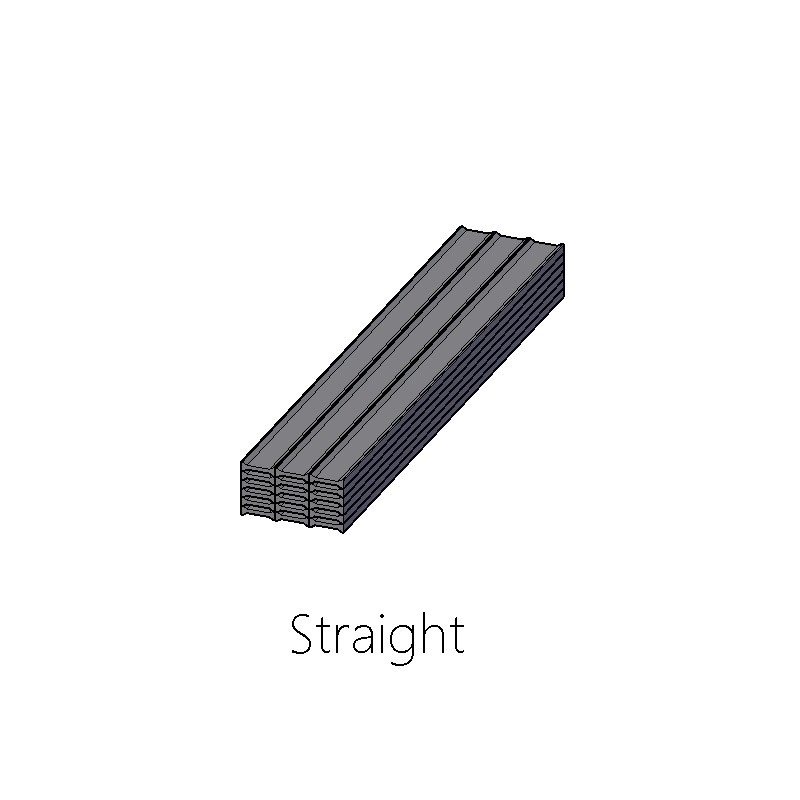

Markets Served | Windows & Doors | Transport Package | Roll or Linear |
Customized Laser Printing | Trademark | Shuangming | |
Life | More Than 40 Years | HS Code | 3926909090 |

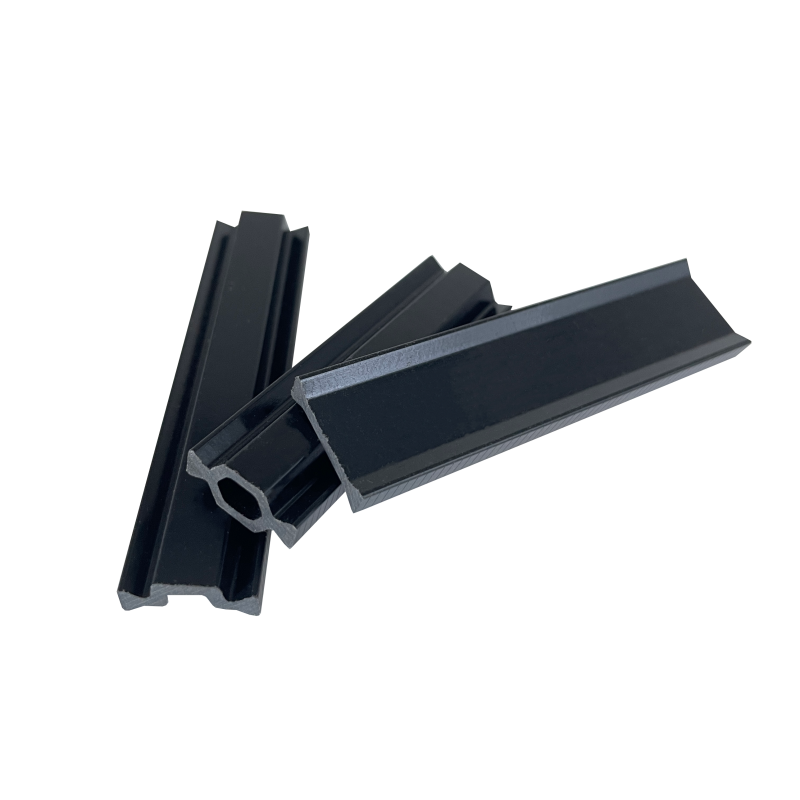

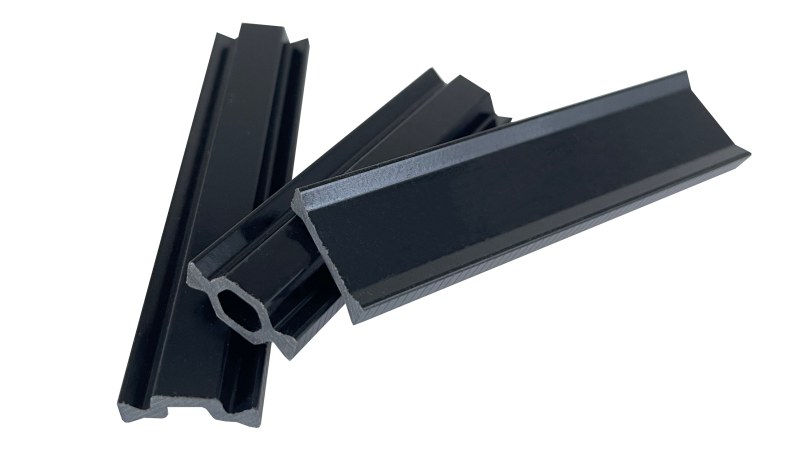

The Heat-Resistant Polyamide Spacer Bars with a cavity can provide better thermal insulation.
Nylon 66 GF25 Insulation Strips are engineered to provide superior performance in architectural applications, combining exceptional strength and advanced insulation properties. Crafted with high-strength Nylon 66 GF25 insulation strips, these strips deliver enhanced mechanical properties, including superior durability Nylon 66 GF25 insulation strips, and resistance to wear and tear. Their thermal insulating Nylon 66 GF25 insulation strips properties make them ideal for use in energy-efficient construction, effectively reducing heat transfer to maintain optimal indoor temperatures and improve overall energy performance.
Despite their higher unit cost compared to standard nylon alternatives, these abrasion-resistant Nylon 66 GF25 insulation strips offer a significant long-term advantage. The sustainable Nylon 66 GF25 insulation strips are designed for extended service life and minimal maintenance requirements, leading to 20%-40% savings in total lifecycle costs. This cost-performance advantage makes them an exceptional choice for projects where long-term durability and low maintenance are critical.
Additionally, the customizable Nylon 66 GF25 insulation strips allow for flexible solutions tailored to specific project needs, providing an ideal fit for a wide range of applications in both residential and commercial buildings. Their durability and sustainability make them a preferred solution for architects and builders aiming to optimize performance and cost-efficiency.
High-quality polyamide granule raw materials are the foundation for producing high-performance U-Channel Polyamide Insulation Profiles.
Compared to other plastic materials, nylon thermal barrier strips may have higher initial costs, but when considering their overall service life, the cost is 20%-40% lower than that of other plastics.
Nylon 66 GF25 Insulation Strips offer excellent aging and corrosion resistance, which can reduce long-term window maintenance costs and extend the service life of both the windows and the building.
Windows equipped with 25% Glass-Filled PA66 Insulation Strips are an essential requirement for energy-efficient and eco-friendly buildings.
The use of PA66 + 25% Fiberglass Thermal Breaks contributes to a quieter, more comfortable, and energy-efficient living environment.
Thermal Break Strips for Aluminum Windows produced by Shuangming Company comply with the GB/T 23615.1-2017 standard and can meet the performance requirements of modern construction.

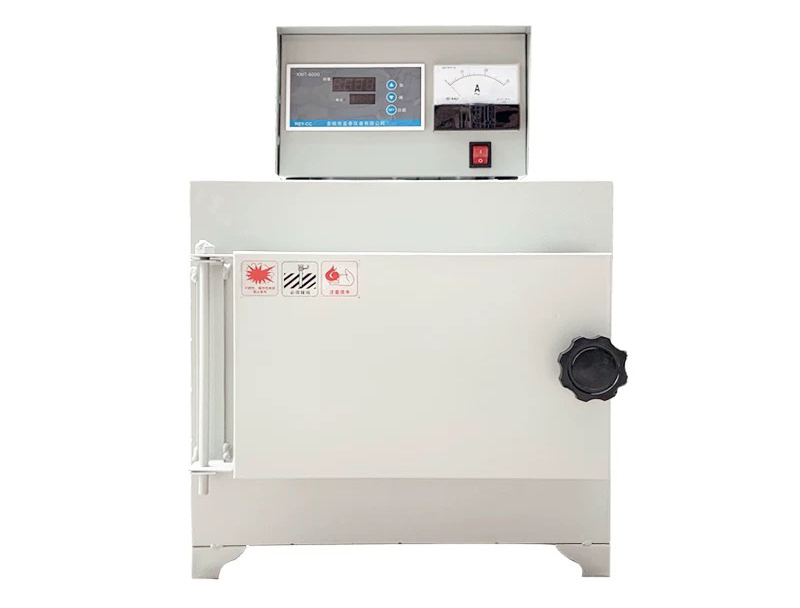

Shuangming Company Ash Content Testing Equipment for Raw Materials to Heat Blocking Polyamide Strips.
NO. | Item | Unit | GB/T 23615.1-2017 |
1 | Density | g/cm³ | 1.3±0.05 |
2 | Linear expansion coefficient | K⁻¹ | 25±2.5 |
3 | DSC Melting Peak Temperature | °C | ≥255 |
4 | Testing for tensile cracks | - | No cracks |
5 | Shore hardness | - | 80±5 |
6 | Impact strength(Unnotched) | KJ/m² | ≥50 |
7 | Tensile strength(longitudinal) | MPa | ≥90 |
8 | Elasticity modulus | MPa | ≥4500 |
9 | Elongation at break | % | ≥3 |
10 | Tensile strength(transverse) | MPa | ≥90 |
11 | High temperature tensile strength(transverse) | MPa | ≥55 |
12 | Low temperature tensile strength(transverse) | MPa | ≥90 |
13 | Water resistance tensile strength(transverse) | MPa | ≥85 |
14 | Aging resistance tensile strength(transverse) | MPa | ≥60 |
Shuangming Company PA66GF25 Thermal Barrier Strip Production Line
