Model NO. | SM-CU280 | Material Properties | High Temp Resistance （≥220 °C） |
Material | PA66GF25 | Customized | Customized |
Application | for Thermal Break Aluminum Profile | Color | Single Color（Black） |
Markets Served | Windows & Doors | Technical Performance | GB/T 23615.1-2009 |

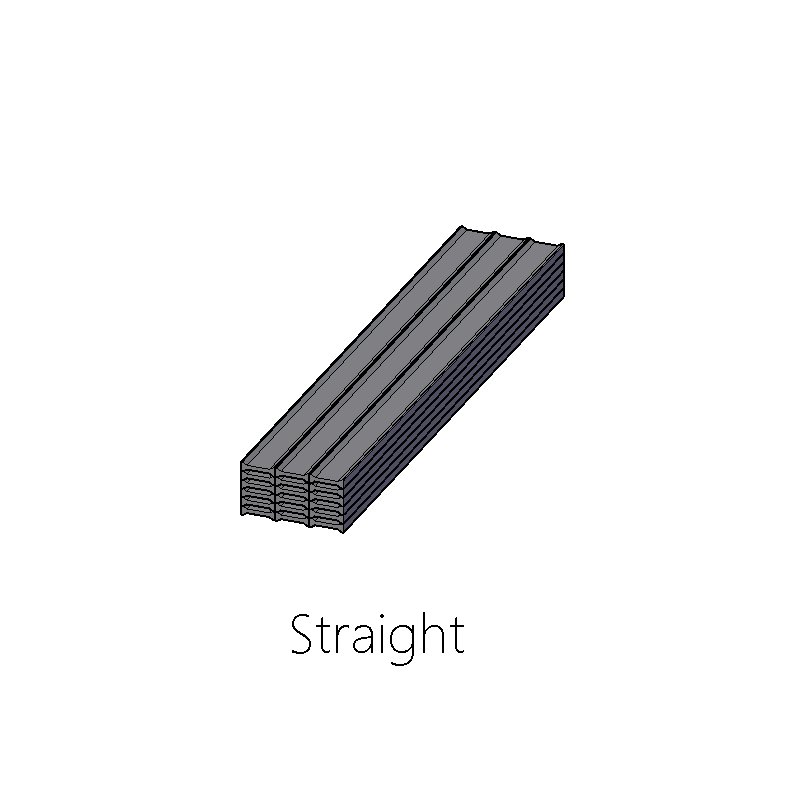

Customized Laser Printing | Transport Package | Straight | |
Forming Way | Extrusion | Trademark | Shuangming |
Windows equipped with PA66GF25 Window Insulation Bars demonstrate superior sound insulation performance compared to standard windows.
Shuangming Plastic offers high-strength PA66GF25 insulation profiles designed for superior thermal stability and durability. These glass-filled PA66GF25 insulation profiles feature excellent fiber-reinforced PA66GF25 insulation profiles that deliver outstanding strength and resilience, making them ideal for demanding industrial applications. Manufactured using advanced thermoplastic PA66GF25 insulation profiles, these profiles are engineered to withstand extreme temperatures, ensuring long-term performance and reliability.Our heat-resistant PA66GF25 insulation profiles are specifically designed for high-temperature environments, providing optimal protection and energy efficiency. Additionally, they are PA66GF25 energy-saving insulation profiles, helping reduce energy consumption while meeting environmental regulations. Fully compliant with ROHS and REACH standards, these profiles are crafted with a halogen-free flame-retardant formula and emit low VOCs during production, ensuring they meet the stringent environmental construction standards of both the EU and North America.
The application of PA66GF25 insulation profiles for Curtain Walls in doors and windows significantly enhances residential comfort and living conditions for occupants.
The high-temperature resistance(220°C) of PA66GF25 Heat Insulation Bars allows for secondary processing during window fabrication, minimizing material waste.
PA66GF25 Glass-Fiber Reinforced Nylon Strips exhibit exceptional corrosion resistance, weather resistance, high-temperature tolerance, and alkali resistance, delivering extended service life that effectively reduces total window ownership costs.
Diverse profile designs and dimensional specifications enable the production of PA66GF25 Thermal Insulation Profiles tailored to various application scenarios.
Compared to aluminum alloy windows, those incorporating Noise Reduction Thermal Barrier Strips demonstrate superior acoustic performance, making them suitable for a wider range of application scenarios.
Windows with thermal break strips deliver superior insulation performance, significantly reducing household electricity consumption during both summer and winter seasons.

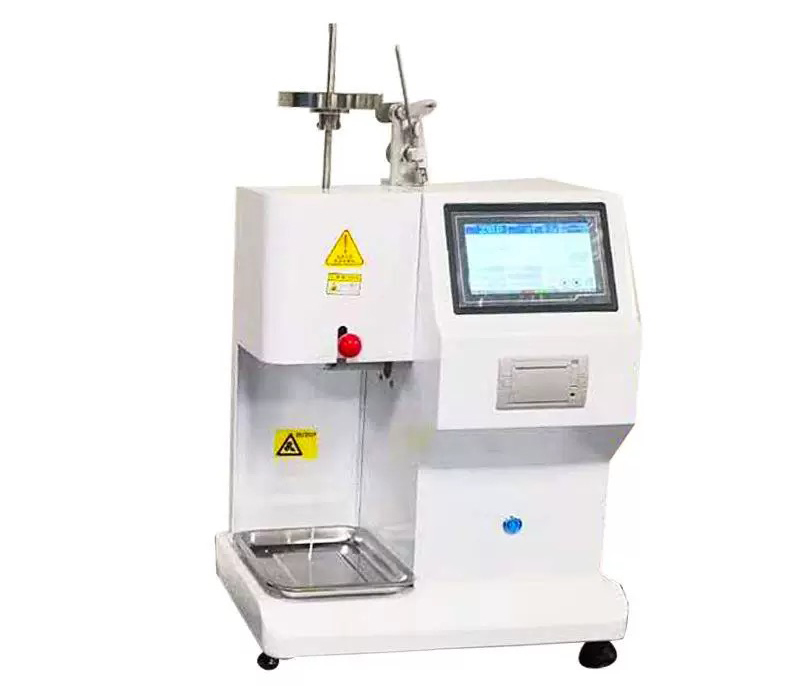

Melting index testing from raw materials to PA66GF25 Low Thermal Conductivity Strips finished products
NO. | Item | Unit | GB/T 23615.1-2009 | SM-Technical specification |
1 | Density | g/cm³ | 1.3±0.05 | 1.28-1.35 |
2 | Linear expansion coefficient | K⁻¹ | (2.3-3.5)×10⁻⁵ | (2.3-3.5)×10⁻⁵ |
3 | Vicat softening temperature | °C | ≥230 | ≥240 |
4 | Melting point(0.45MPa) | °C | ≥240 | ≥255 |
5 | Testing for tensile cracks | - | No cracks | No cracks |
6 | Shore hardness | - | 80±5 | 80-85 |
7 | Impact strength(Unnotched) | KJ/m² | ≥35 | ≥40 |
8 | Tensile strength(longitudinal) | MPa | ≥80 | ≥84 |
9 | Elasticity modulus | MPa | ≥4500 | ≥4600 |
10 | Elongation at break | % | ≥2.5 | ≥4 |
11 | Tensile strength(transverse) | MPa | ≥70 | ≥80 |
12 | High temperature tensile strength(transverse) | MPa | ≥45 | ≥50 |
13 | Low temperature tensile strength(transverse) | MPa | ≥80 | ≥85 |
14 | Water resistance tensile strength(transverse) | MPa | ≥35 | ≥45 |
15 | Aging resistance tensile strength(transverse) | MPa | ≥50 | ≥60 |

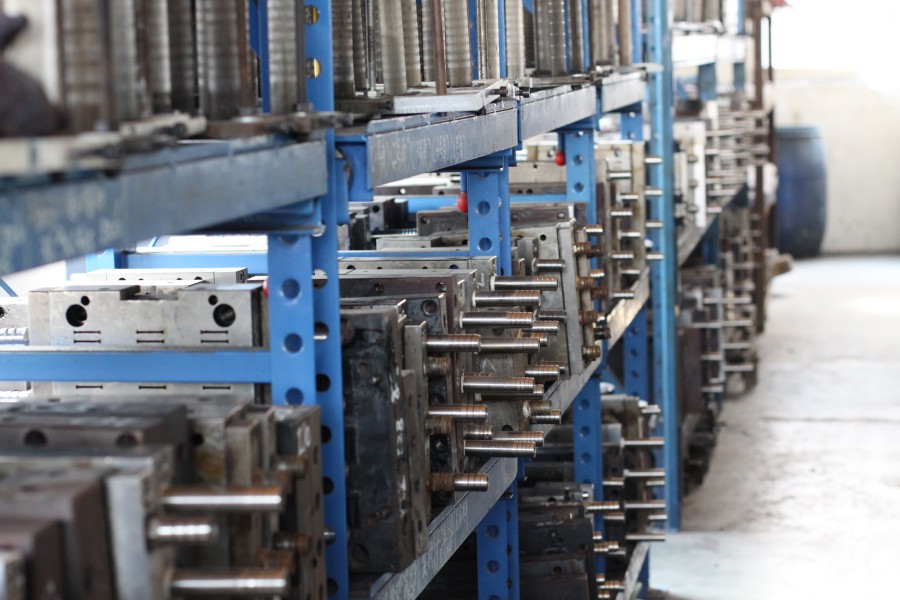

PA66GF25 Insulation Profile Extrusion Die of Shuangming Company.
