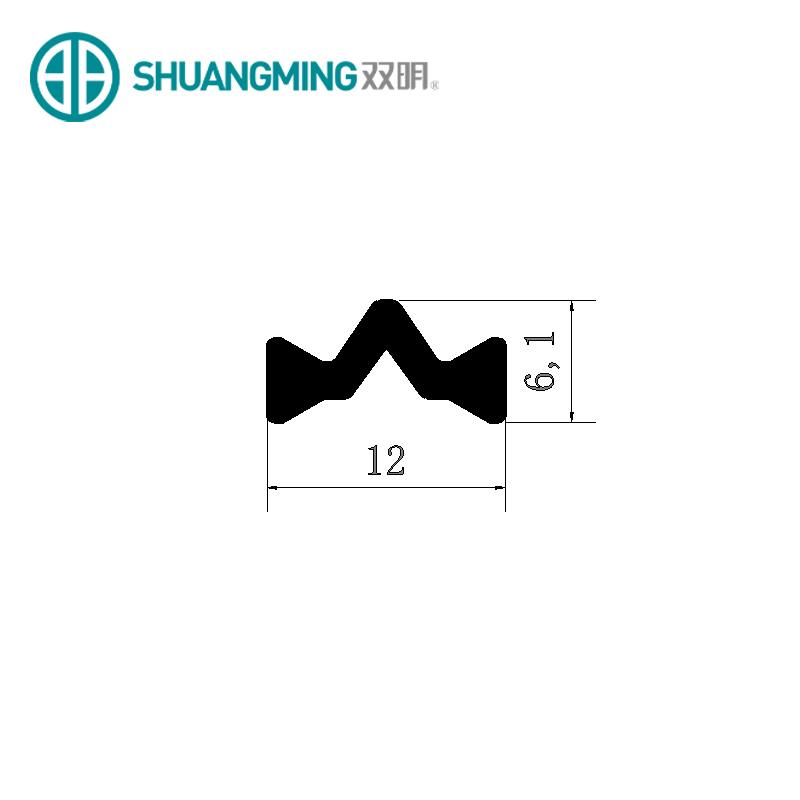

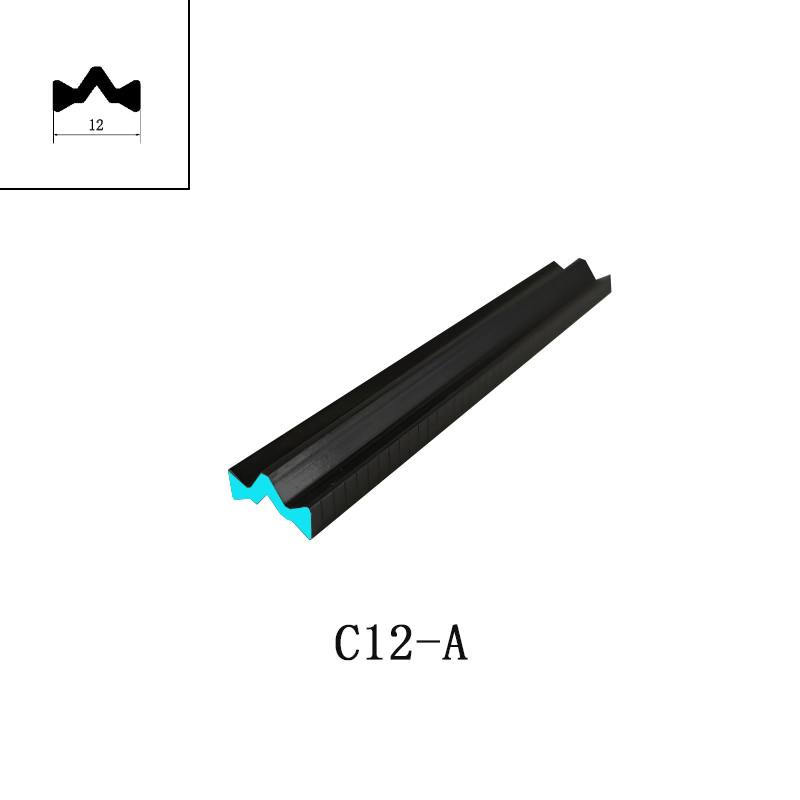

Model NO. | SM-C120-A | Material Properties | High Temp Resistance （≥220 °C） |
Material | PA66GF25 | Customized | Customized |
Application | for Thermal Break Aluminum Profile | Color | Single Color（Black） |
Markets Served | Windows & Doors | Technical Performance | GB/T 23615.1-2009 |
Customized Laser Printing | Transport Package | Roll or Linear | |
Forming Way | Extrusion | Trademark | Shuangming |

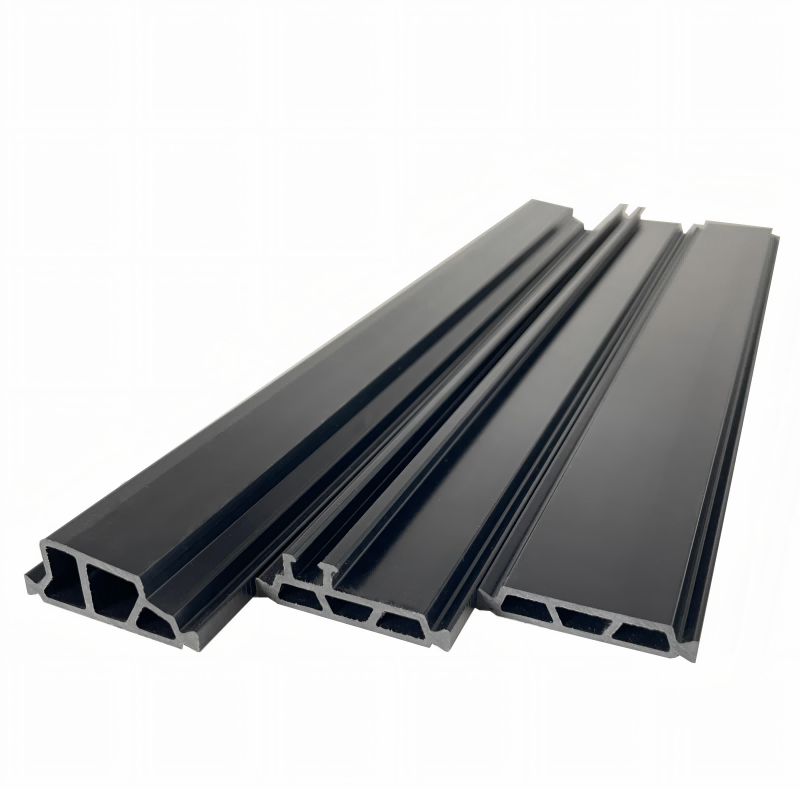

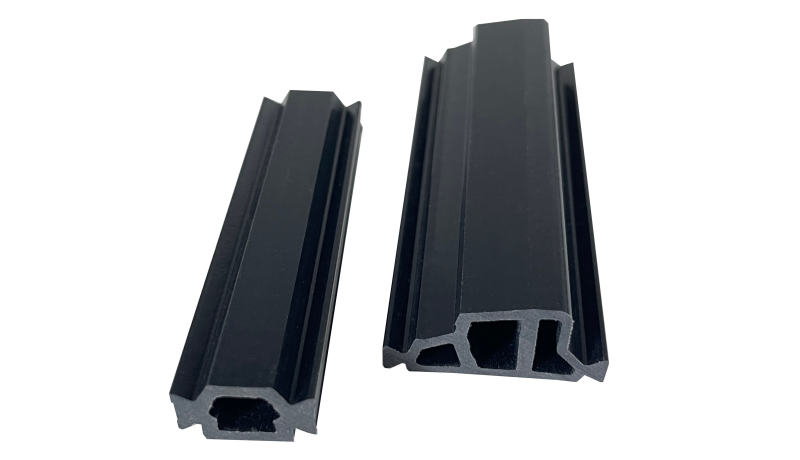

PA66GF25 Glass-Fiber Reinforced Nylon Strips with a cavity can provide better thermal insulation.
At Shuangming Plastic, we are committed to delivering cutting-edge solutions for thermal management and energy efficiency. Our PA66GF25 Insulation Profiles are a premier choice for combining durability, performance, and sustainability in construction and manufacturing projects.
Our High-Strength PA66GF25 Insulation Profiles are crafted using advanced glass-filled polyamide PA66GF25 Insulation Profiles, renowned for its exceptional thermal resistance and durability. The integration of 25% glass fiber in the material provides unmatched fiber-reinforced strength PA66GF25 Insulation Profiles, ensuring long-lasting performance under demanding conditions. These thermoplastic PA66GF25 Insulation Profiles are designed to offer excellent dimensional stability and maintain their functionality even in extreme environments.
Engineered for versatility, these heat-resistant PA66GF25 Insulation Profiles are ideal for use in building materials, window and door frame systems, and industrial applications where thermal insulation is critical. Their durable construction PA66GF25 Insulation Profiles makes them a perfect fit for both modern architectural designs and retrofitting projects, offering reliable solutions to reduce energy loss and enhance thermal efficiency.
By choosing Shuangming Plastic’s PA66GF25 Insulation Profiles, you are investing in a product that combines state-of-the-art materials with practical, high-performance solutions. Our products are not only designed to meet rigorous industry standards but also to contribute to a more sustainable and energy-efficient future.
Let Shuangming Plastic provide you with the innovation and quality you need for your next project. Choose PA66GF25 Insulation Profiles for superior performance and long-term value.
PA66GF25 Insulation Profiles for Curtain Walls uses nylon 66 as its base material, reinforced with 25% glass fiber.
Noise Reduction Thermal Barrier Strips demonstrate exceptional weather resistance, capable of withstanding prolonged exposure to UV radiation, rain, snow, humidity, and other environmental factors while maintaining optimal thermal insulation and structural performance over decades of service.
PA66GF25 Thermal Bridging Strips serve as an effective insulating barrier that prevents direct metal-to-metal contact between aluminum and other metals, thereby eliminating galvanic corrosion risks and significantly extending fenestration system service life.
PA66GF25 Insulating Glazing Bars offer customizable colors and profiles to seamlessly integrate with fenestration designs, maintaining both technical performance and aesthetic appeal.
PA66GF25 Fibre Glass Insulation Strips are available in various thicknesses and widths to precisely match different profile series, enabling customized solutions for diverse architectural requirements regarding thermal insulation, structural strength, and performance optimization.
Fire-Retardant Nylon Insulation Bars exhibit inherent flame-retardant properties that inhibit combustion and flame spread, significantly enhancing the fire safety performance of fenestration systems.

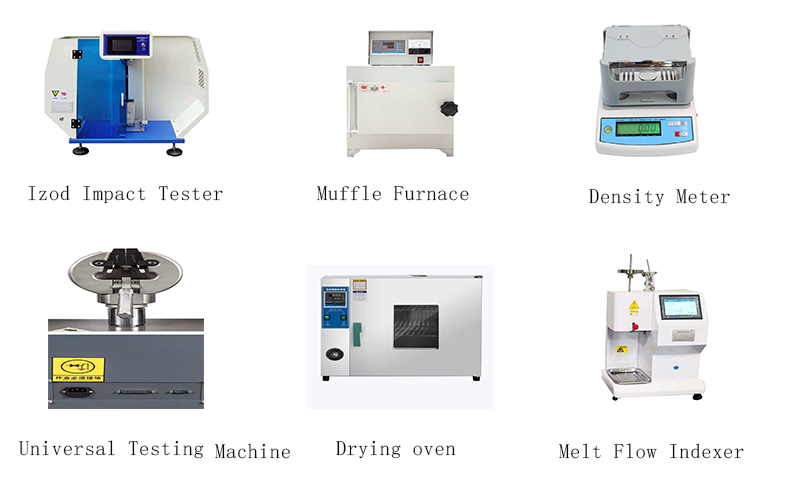

Shuangming Company has a comprehensive quality inspection system covering the entire production process from raw materials to finished Glass-Filled Polyamide Insulation Strips.
NO. | Item | Unit | GB/T 23615.1-2009 | SM-Technical specification |
1 | Density | g/cm³ | 1.3±0.05 | 1.28-1.35 |
2 | Linear expansion coefficient | K⁻¹ | (2.3-3.5)×10⁻⁵ | (2.3-3.5)×10⁻⁵ |
3 | Vicat softening temperature | °C | ≥230 | ≥240 |
4 | Melting point(0.45MPa) | °C | ≥240 | ≥255 |
5 | Testing for tensile cracks | - | No cracks | No cracks |
6 | Shore hardness | - | 80±5 | 80-85 |
7 | Impact strength(Unnotched) | KJ/m² | ≥35 | ≥40 |
8 | Tensile strength(longitudinal) | MPa | ≥80 | ≥84 |
9 | Elasticity modulus | MPa | ≥4500 | ≥4600 |
10 | Elongation at break | % | ≥2.5 | ≥4 |
11 | Tensile strength(transverse) | MPa | ≥70 | ≥80 |
12 | High temperature tensile strength(transverse) | MPa | ≥45 | ≥50 |
13 | Low temperature tensile strength(transverse) | MPa | ≥80 | ≥85 |
14 | Water resistance tensile strength(transverse) | MPa | ≥35 | ≥45 |
15 | Aging resistance tensile strength(transverse) | MPa | ≥50 | ≥60 |

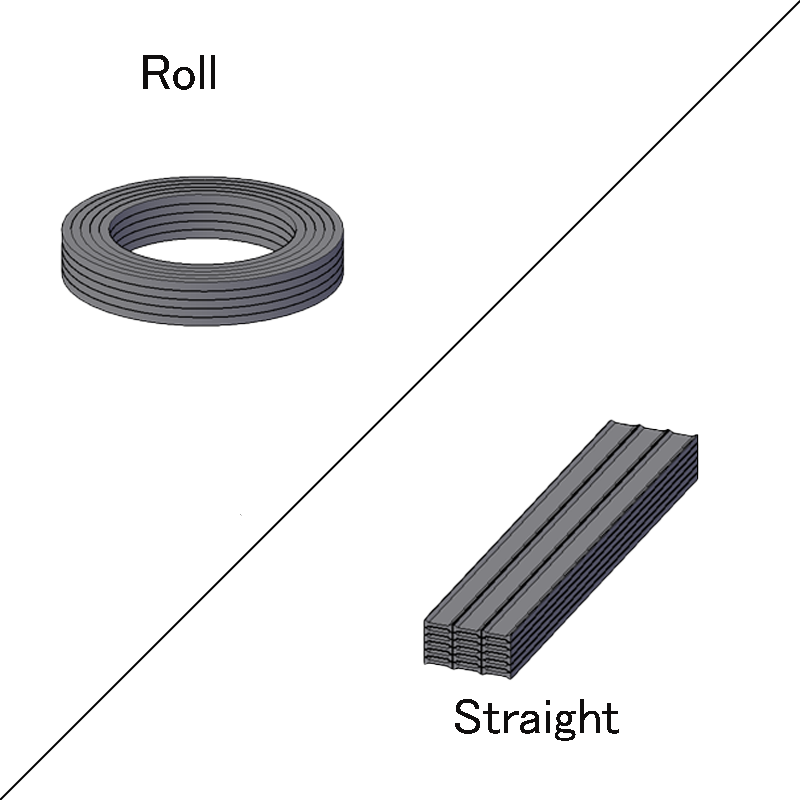

Polyamide nylon 66 thermal insulation strips can be supplied in coil (reel) packaging or straight-length packaging.
