Aluminium frames offer superior durability for modern architecture. However, they conduct heat rapidly. Extreme climates quickly expose this vulnerability. Sub-zero winters pull indoor heat outside. High-radiation desert environments push extreme heat inside. We must address this thermal conductivity to maintain building performance.
You cannot view the thermal break strip as a simple energy-saving feature. Instead, it serves as a critical structural bridge. This component prevents internal frame condensation. It stops severe thermal bowing under heavy sun exposure. It also prevents massive HVAC efficiency losses. Architects and builders need robust solutions to protect interior environments.
This guide provides a clear, evidence-based framework for industry professionals. We will equip architects, builders, and procurement teams with essential knowledge. You will learn how to evaluate various materials. You will discover how to specify the right thermal barrier technology specifically designed for high-demand environments.
Material matters most: Polyamide 66 reinforced with 25% fiberglass (PA66-GF25) is the industry standard for extreme climates because its expansion coefficient matches aluminium.
Size impacts performance: Wider thermal strips lower the U-value but require specialized structural design to maintain wind-load resistance.
Assembly methods differ: Rolled-in thermal struts offer superior mechanical stability in extreme temperature gradients compared to traditional pour-and-debridge methods.
Compliance is non-negotiable: Shortlist suppliers based on verifiable shear testing and regional compliance standards (e.g., NFRC, AAMA, or EN).
Failing to specify the correct thermal barrier causes massive business problems. Poor insulation elevates the operational carbon footprint of any building. HVAC systems work continuously to offset heat transfer through the metal frames. This constant energy draw sharply increases monthly utility bills. Interior condensation creates even worse physical damage. Moisture accumulates on the interior metal surfaces during winter. This condensation often leads to severe mold growth. Building owners then face expensive mold remediation projects. Window manufacturers also suffer from frequent warranty claims due to frame deterioration.
Extreme temperature gradients put intense physical stress on building materials. Picture a scenario where exterior temperatures drop to -20°C. Meanwhile, the interior environment remains at a comfortable +22°C. This 42-degree difference creates immense strain. Physics dictates how materials react to these conditions. Metal and low-grade plastics expand and contract at completely different rates. This discrepancy causes severe structural shear stress over time. If the plastic barrier shrinks faster than the aluminium, the window loses its structural integrity. The frame will eventually warp or fail entirely under wind load.
A successful thermal break system must achieve two goals simultaneously. First, it must deliver highly localized insulation. This localized barrier ensures a low U-factor across the entire window assembly. Second, it must guarantee long-term structural integrity. You cannot sacrifice physical strength to achieve better insulation. The system must securely hold the inner and outer metal extrusions together. Incorporating high-quality Thermal Break Strips For Aluminium Windows ensures this vital balance.

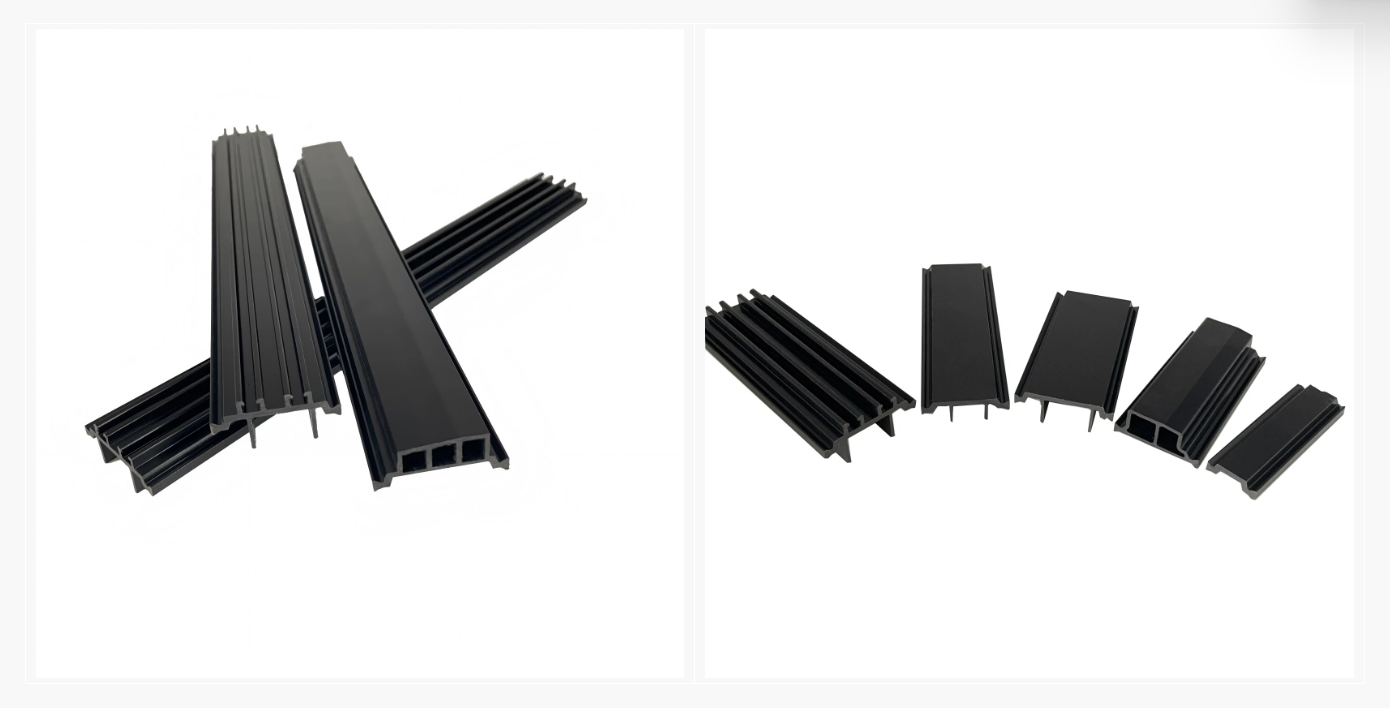

Fiberglass-reinforced polyamide represents the absolute industry benchmark for extreme climates. Specifically, Polyamide 66 reinforced with 25% fiberglass (PA66-GF25) dominates high-end commercial applications. This material features a remarkably high melting point. It handles intense desert sun exposure without softening. It also boasts incredible tensile strength. Most importantly, its coefficient of linear thermal expansion (CLTE) perfectly mirrors aluminium. When the sun heats the window, both the metal and the polyamide expand together. When temperatures plunge, they contract at the same rate. This synchronization prevents the stress fractures commonly seen in inferior assemblies.
Specifying cheaper alternatives poses significant risks. PVC strips appeal to budget-conscious developers. However, PVC fails miserably in extreme climates. The material becomes highly brittle in severe cold. A single hard freeze can cause PVC barriers to snap under standard wind loads. Conversely, extreme heat causes PVC to soften and warp. This warping ruins the airtight seal of the window frame. Once the seal breaks, water penetrates the building envelope. You should avoid standard resins and PVC whenever climate extremes exist.
Traditional polyurethane resin barriers utilize a pour-and-debridge method. Manufacturers pour liquid resin into a frame channel. They then cut away the metal bridge once the resin cures. Polyurethane offers a very high insulation value. It blocks heat transfer exceptionally well. However, this material faces distinct limitations regarding structural rigidity. High wind-load scenarios place tremendous sheer force on the frame. Extreme heat can weaken the chemical bond of the resin. Over time, the inner and outer frames may shift independently. This shifting compromises the overall stability of the window unit.
The chart below outlines material properties to guide your specification process.
Material Type | Thermal Insulation | Structural Rigidity | Extreme Climate Suitability |
|---|---|---|---|
PA66-GF25 (Polyamide) | Excellent | Outstanding | Highly Recommended |
Standard PVC | Moderate | Poor (Brittle in cold) | Not Recommended |
Polyurethane (Resin) | Outstanding | Moderate (Weakens in heat) | Conditional Use Only |
Strip width directly dictates the thermal transmittance of the window frame. We measure this transmittance as the U-value. A lower U-value means better insulation. A standard 14.8mm strip provides basic thermal separation. However, extreme climates demand much wider profiles. Manufacturers routinely utilize 24mm or even 35.3mm strips for sub-zero environments. The wider the strip, the further the cold exterior metal sits from the warm interior metal. This increased distance dramatically slows heat transfer.
Cavity design also plays a crucial role in managing temperatures. We must evaluate multi-cavity geometries against solid strips.
Solid Strips: These work well for narrower gaps. They provide strong structural support but offer limited insulation value.
Hollow Chambers: Multi-cavity geometries feature intricate internal air pockets. These hollow designs manage convection currents within the frame perfectly.
Foam-Filled Chambers: Some advanced strips feature polyurethane foam inserted inside the hollow polyamide chambers. This stops all internal air circulation entirely.
Structural shear strength determines whether a window survives a storm. Manufacturers create composite profiles through a specific mechanical process. First, they knurl the aluminium cavity. Knurling cuts small teeth into the metal channel. Next, they insert the polyamide strips. Finally, heavy machinery rolls the metal tight against the plastic. This knurling and rolling process directly dictates the assembly's strength. High-rise buildings face intense lateral wind loads. Villa projects in coastal zones endure brutal hurricane-force winds. The composite profile must resist these lateral forces without slipping. If the mechanical bond fails, the window frame collapses.
Internal drainage depends heavily on the geometry of the chosen Thermal Barrier Strips. Proper design mitigates the risk of interior "sweating". Sweating occurs when warm indoor air hits a cold aluminium surface. The water vapor condenses into liquid droplets. High-quality strip geometries incorporate precise angles. These angles guide any accidental water infiltration toward designated drainage weep holes. They also push the dew point further outside the building envelope. This precise engineering keeps the interior frame edge dry and mold-free all year.
The industry uses two distinct technical categories to describe insulation methods. Many professionals use the terms interchangeably, but they differ significantly. "Thermal Break" usually refers to the liquid pour-and-debridge method. Factories pour liquid polyurethane resin into a designated frame channel. After curing, a saw removes the bottom metal bridge. This separates the two halves. Conversely, a "Thermal Strut" utilizes mechanically rolled-in rigid polyamide strips. Machinery crimps the metal permanently around the pre-formed plastic struts.
You should strongly advocate for the thermal strut method in areas with extreme temperature fluctuations. Struts offer a massive aesthetic and practical advantage. They allow manufacturers to utilize different finishes on interior and exterior extrusions prior to assembly. You can specify a highly durable, UV-resistant anodized finish for the exterior facing the harsh sun. Simultaneously, you can apply a warm wood-grain powder coat to the interior extrusion. The factory paints or anodizes the metal pieces separately. They roll the thermal strut in afterward. Pour-and-debridge systems require finishing the entire frame as one piece. This makes dual-color applications extremely difficult and expensive.
Maintenance and lifecycle longevity heavily favor thermal struts under severe conditions. Mechanically rolled struts handle extreme UV exposure exceptionally well. The 25% fiberglass reinforcement prevents degradation from sunlight. They also survive decades of brutal freeze-thaw cycles. Water expands when it freezes. In a pour-and-debridge system, micro-cracks in the resin can trap moisture. Winter freezes then force these cracks open, slowly destroying the bond. Rigid polyamide struts avoid this chemical degradation entirely. They maintain their mechanical grip through decades of harsh weather variations.
Buyers must demand verifiable testing and certification standards from all suppliers. You cannot rely on marketing claims alone. The American Architectural Manufacturers Association (AAMA) provides strict guidelines. Request AAMA TIR-A8 documentation to verify structural performance. This standard tests the composite shear strength of the assembled window. For European markets, demand EN 14024 compliance. This standard rigorously tests the mechanical connections at extreme high and low temperatures. Additionally, you should require National Fenestration Rating Council (NFRC) thermal ratings. These ratings prove the actual U-value of the entire window assembly.
Watch out for significant red flags during the procurement process. Never trust suppliers who cannot provide composite shear test data. If they lack these testing documents, their assembly process likely fails industry standards. Another major red flag involves material substitution. Dishonest suppliers sometimes substitute pure PA66 with recycled, non-reinforced plastics. Recycled plastics lack the precise expansion coefficient of virgin PA66-GF25. They will eventually cause the window frame to warp or fail. Always demand exact material composition data before signing any contracts.
Use this specific checklist to guide your next procurement cycle:
Request detailed spec sheets proving the exact material composition of the thermal barrier strips. Look specifically for PA66-GF25.
Verify U-value simulations tailored for the specific intended climate zone. Ensure the data matches your local weather extremes.
Confirm the manufacturer's official warranty regarding thermal bowing and delamination. Ensure it covers extreme temperature variations.
Standard aluminium windows remain completely insufficient for extreme climates without proper insulation. They conduct heat too quickly, ruining interior comfort. Meticulously specified thermal barrier technology solves this inherent flaw completely.
Specifying PA66-GF25 struts with appropriate widths provides the most reliable outcome. This material precisely matches the expansion rate of aluminium. It delivers an optimal balance of both thermal insulation and long-term structural performance.
Consult with an engineering or technical sales team before finalizing your blueprints. Audit your current window specifications carefully. Request a custom thermal modeling analysis for your next project to guarantee maximum energy efficiency and durability.
A: Freezing climates typically require a minimum strip width of 24mm to prevent interior condensation. Extremely cold regions often demand 35.3mm widths or larger. The exact minimum depends heavily on your overall NFRC requirements and specific U-value targets.
A: Yes, inferior plastics degrade quickly. Standard PVC becomes brittle and cracks under long-term UV exposure and freeze-thaw cycles. However, fiberglass-reinforced polyamide (PA66-GF25) offers exceptional UV resistance. It withstands decades of severe weather exposure without losing its structural integrity.
A: Polyamide strut systems perfectly facilitate dual-color finishing. Manufacturers can anodize the exterior metal for heat deflection and powder-coat the interior metal for aesthetics separately. They mechanically roll the frame together afterward. Traditional pour-and-debridge systems make this process much more difficult.
