PA66GF25 Thermal Barrier Strips

In the realm of modern construction and manufacturing, the quest for thermal efficiency and energy conservation has become paramount. This is where our Polyamide Insulation Strips (PA66GF25) emerge as a crucial solution. These strips are crafted from a specialized polyamide material, PA66GF25, which is renowned for its excellent thermal insulation properties. By incorporating 25% glass fiber reinforcement, these strips not only offer superior thermal resistance but also boast remarkable mechanical strength and dimensional stability.

Availability:

Quantity:



Inquire Add to Basket

PA66GF25 Thermal Barrier Strips High Strength PA66GF25 Thermal Barrier Strips Wear Resistance PA66GF25 Thermal Barrier Strips Eco-friendly Material PA66GF25 Thermal Barrier Strips Aging Resistance Material PA66GF25 Thermal Barrier Strips Low Water Absorption Material PA66GF25 Thermal Barrier Strips Customizable Material PA66GF25 Thermal Barrier Strips

Product Description

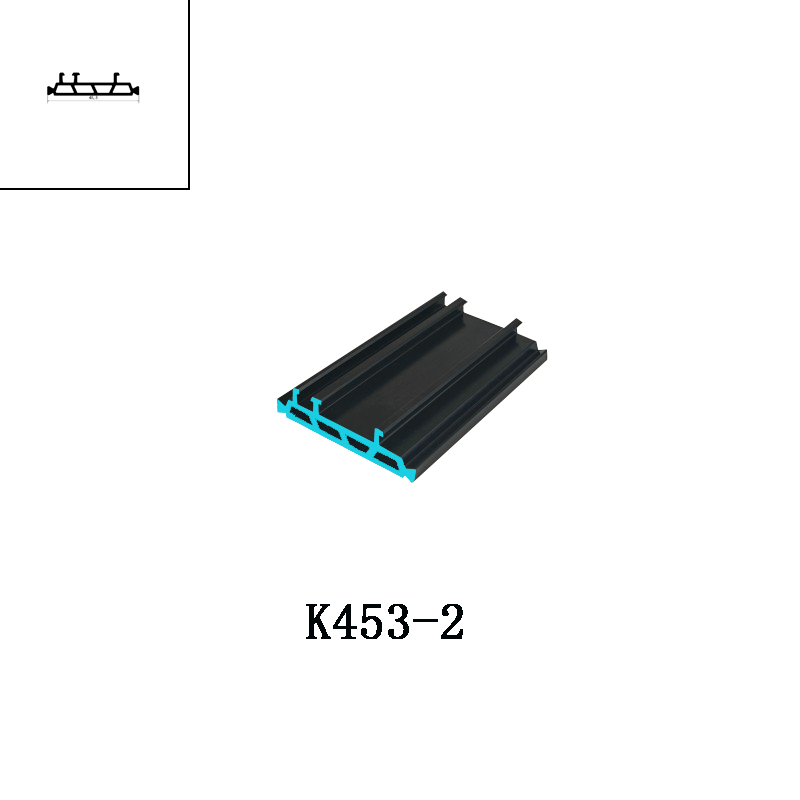

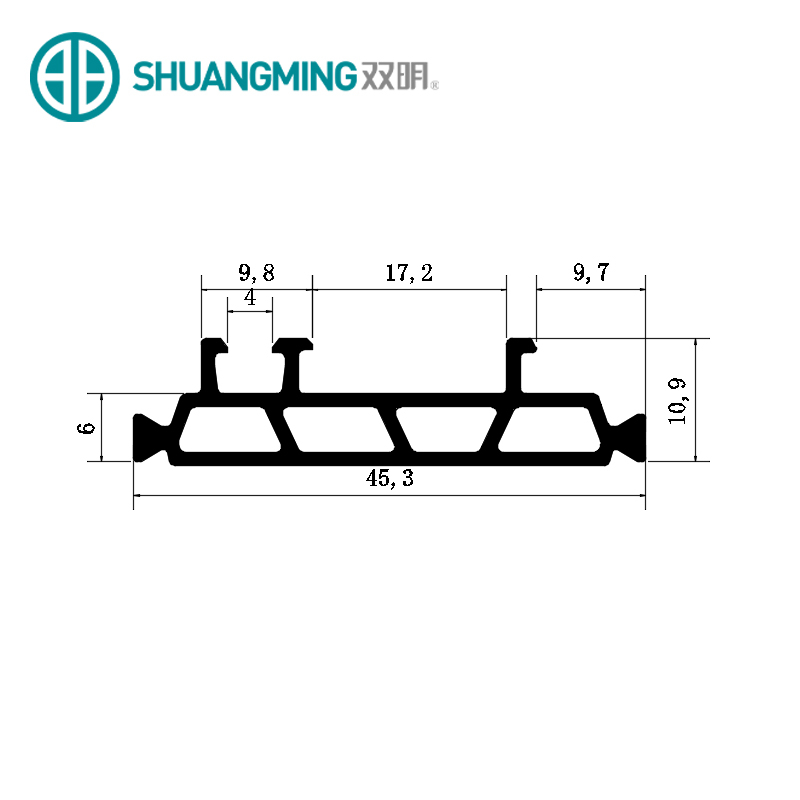

Model NO.	SM-K453-2	Customized	Customized
Material	Polyamide66 Reinforced by 25%Glass Fiber	Color	Single Color（Black）
Application	for Thermal Break Aluminum Profile	Raw Material	PA66 GF25 Granules
Markets Served	Windows & Doors	Technical Performance	GB/T 23615.1-2009
Print	Customized Laser Printing	Transport Package	Roll or Linear
Material Properties	High Temp Resistance （≥220 °C）	HS Code	3926909090

Factory-direct PA66GF25 Insulation Profiles, made from imported German raw materials, with strict quality inspection to ensure stable and reliable product quality.

Product Introduction

In the realm of modern construction and manufacturing, the quest for thermal efficiency and energy conservation has become paramount. This is where our High Strength PA66GF25 Thermal Barrier Strips emerge as a crucial solution. Crafted from a specialized polyamide material, PA66GF25 is renowned for its excellent thermal insulation properties. By incorporating 25% glass fiber reinforcement, these strips not only offer superior thermal resistance but also boast remarkable mechanical strength and dimensional stability.

Our Wear Resistance PA66GF25 Thermal Barrier Strips are designed for various applications where thermal insulation is critical. They are particularly effective in creating thermal breaks in building structures, preventing heat transfer between different sections and thereby enhancing overall energy efficiency. With Eco-friendly Material PA66GF25 Thermal Barrier Strips, you can contribute to sustainable construction practices while maintaining high performance.

These strips also feature Aging Resistance Material PA66GF25 Thermal Barrier Strips, ensuring long-term durability even in harsh conditions. Their Low Water Absorption Material PA66GF25 Thermal Barrier Strips quality makes them suitable for both residential and industrial settings. Additionally, our Customizable Material PA66GF25 Thermal Barrier Strips allow for tailored solutions to meet specific project requirements.

Our commitment to quality ensures that each strip meets stringent industry standards. Whether you're aiming to reduce energy consumption in your building or looking to enhance the thermal performance of your industrial equipment, these PA66GF25 Insulation Profiles are an indispensable component of your thermal management strategy.

PA66GF25 Thermal Barrier Strips, reinforced with 25% glass fiber, feature high strength and anti-deformation properties, suitable for various broken bridge aluminum doors and windows.

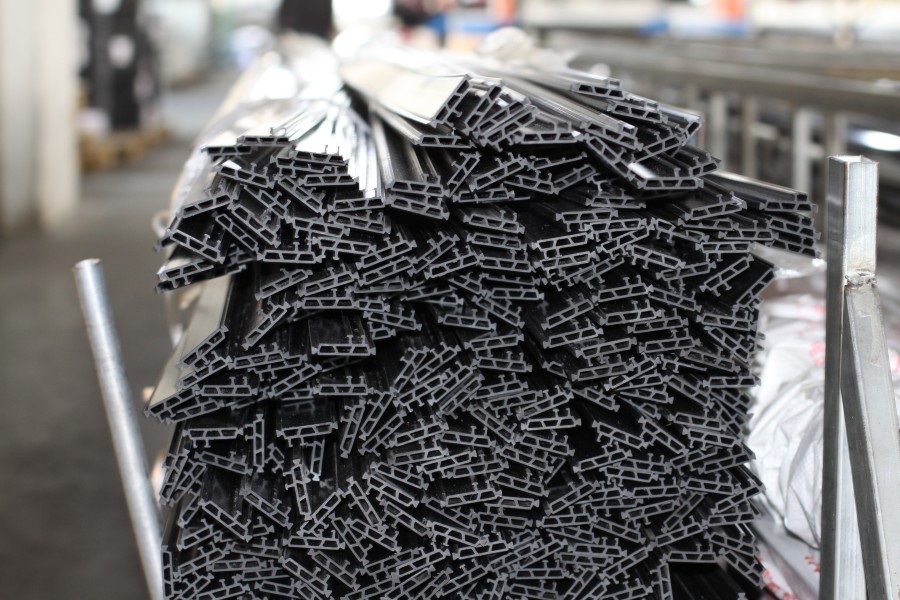

车间10

Product Advantage

ISO 9001/14001 & RoHS certified, Noise Reduction Thermal Barrier Strips‌ are eco-friendly and non-toxic.
Superior UV resistance: PA66GF25 Thermal Bridging Strips‌ last 30+ years outdoors, outperforming PVC materials.
Windows with PA66GF25 Insulating Glazing Bars‌ achieve 30dB noise reduction for peaceful interiors.
Mechanical strength of PA66GF25 Fibre Glass Insulation Strips‌ exceeds 120MPa, twice as strong as standard nylon.
Multi-chamber design in Hollow-Chamber Insulation Strips‌ blocks thermal bridging, optimizing insulation.

Specialized in manufacturing PA66GF25 Heat Insulation Bars for 20 years, equipped with 20 automated production lines, supporting customized production.

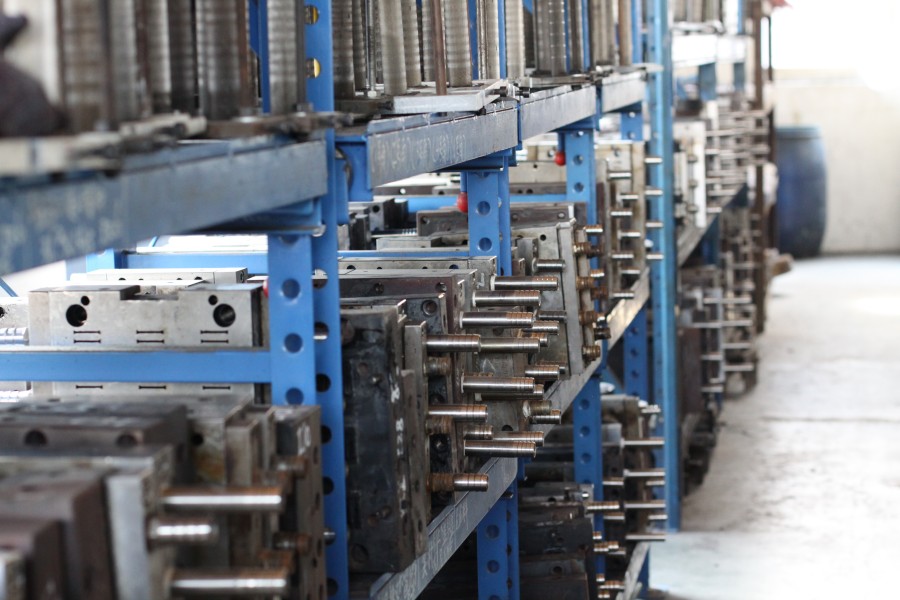

车间9

Technical Parameters

NO.	Item	Unit	GB/T 23615.1-2009	SM-Technical specification
1	Density	g/cm³	1.3±0.05	1.28-1.35
2	Linear expansion coefficient	K⁻¹	(2.3-3.5)×10⁻⁵	(2.3-3.5)×10⁻⁵
3	Vicat softening temperature	°C	≥230	≥240
4	Melting point(0.45MPa)	°C	≥240	≥255
5	Testing for tensile cracks	-	No cracks	No cracks
6	Shore hardness	-	80±5	80-85
7	Impact strength(Unnotched)	KJ/m²	≥35	≥40
8	Tensile strength(longitudinal)	MPa	≥80	≥84
9	Elasticity modulus	MPa	≥4500	≥4600
10	Elongation at break	%	≥2.5	≥4
11	Tensile strength(transverse)	MPa	≥70	≥80
12	High temperature tensile strength(transverse)	MPa	≥45	≥50
13	Low temperature tensile strength(transverse)	MPa	≥80	≥85
14	Water resistance tensile strength(transverse)	MPa	≥35	≥45
15	Aging resistance tensile strength(transverse)	MPa	≥50	≥60

Weather-resistant PA66GF25 Glass-Fiber Reinforced Nylon Strips, resistant to UV rays, rain, and snow, extending the service life of doors and windows.

FAQ

Q: How is the dimensional accuracy of Window/Door Thermal Break Strips for Aluminum Frames guaranteed?

A: We use high - precision molds and advanced equipment, with random inspections during production to ensure dimensional tolerances are within ±0.05mm.

Q: How is the quality of raw materials for Thermal Insulation Profiles for Curtain Walls controlled?

A: Raw materials come from high - quality suppliers and are strictly inspected upon entry to ensure stable and reliable quality.

Q: What certifications can you provide for Polyamide Heat Barriers in Consumer Appliances?

A: Can provide ISO9001 quality certification, ISO14001 environmental certification and other relevant certificates.

Q: How long is the production cycle for Low Thermal Conductivity Polyamide Strips?

A: 7 - 10 days for normal orders, 15 - 20 days for large orders.
