Procuring components for high-rise building envelopes carries immense structural and environmental stakes. A single miscalculation in thermal barrier selection can lead to systemic facade failure, code non-compliance, or massive energy penalties. Procurement and engineering teams must balance increasingly stringent energy codes, which require lower U-values, with the structural demands of high-rise building envelopes, including wind load, dead load, and thermal expansion.
To navigate these challenges, buyers need a rigorous, evidence-based evaluation framework. This guide provides actionable steps to vet Thermal Break Strips, validate manufacturer claims, and mitigate risk before signing off on high-volume production runs. You will learn how to assess material properties, verify structural integrity, and ensure long-term performance across complex facade systems.
Material Selection Dictates Performance: The choice between Polyamide 66 (PA66) and Polyurethane (PU) fundamentally alters both the thermal conductivity and structural shear strength of the curtain wall mullion.
Structural Integrity Precedes Thermal Efficiency: A thermal break must first handle the dead load of the glazing pocket and wind loads; thermal performance is irrelevant if the composite profile deflects or fails under stress.
Pre-Order Validation is Mandatory: Relying on standard product sheets is insufficient; buyers must demand project-specific thermal modeling, physical mock-ups, and batch-consistency testing.
Total Cost Extends Beyond the Unit Price: Factoring in custom extrusion lead times, supply chain reliability, and long-term energy compliance is critical for accurate vendor shortlisting.
A successful curtain wall installation relies on strict baseline requirements. The facade must withstand environmental pressures while maintaining a comfortable interior climate. Thermal Break Strips for Curtain Walls sit at the intersection of these criteria. They act as the primary barrier between the exterior face plate and the interior structural mullion, interrupting the conductive path of the aluminum framing.
The evaluation process must align with specific project targets. Whether aiming for LEED certification, passive house standards, or local energy code compliance, the thermal barrier is a critical component. Buyers must define these performance metrics early to ensure the selected strips meet the necessary thermal resistance and structural load capacities.
Structural Stability: The system must resist wind loads, seismic activity, and the dead load of the glass without excessive deflection.
Moisture Management: The design must prevent water infiltration and manage internal condensation through proper drainage paths.
Thermal Isolation: The barrier must effectively separate the exterior and interior climates to minimize heat transfer and meet energy codes.
The positioning of the thermal break strip relative to the glazing pocket and the structural rail of the mullion dictates the efficiency of the system. Maintaining a continuous thermal line across the entire building envelope ensures the strip aligns precisely with the insulating glass unit (IGU) spacers. This alignment prevents local thermal bridging, which occurs when highly conductive materials bypass the thermal barrier.
Misalignment between the face plate connection, the thermal break, and the interior glazing cavity degrades the overall thermal performance of the assembly. When the thermal line is broken, heat transfers rapidly through the aluminum, negating the benefits of the insulated glass and the thermal break itself. Precision in design and extrusion is necessary to maintain this continuous barrier.
Alignment Scenario | Thermal Performance Impact | Condensation Risk |
|---|---|---|
Perfect Alignment with IGU Spacer | Optimal U-factor, minimal heat transfer | Very Low |
Slight Offset (Under 5mm) | Minor degradation in U-factor | Low to Moderate |
Severe Misalignment (Bypassed Barrier) | Significant heat loss, thermal bridging | High (Visible moisture on interior frames) |
Specifying inadequate thermal breaks in bulk orders has severe real-world consequences. Low-quality strips lead to thermal bridging, which significantly lowers the interior surface temperature of the framing. This temperature drop causes interior condensation, leading to mold growth and the degradation of adjacent interior finishes. The resulting moisture damage requires expensive remediation and disrupts building operations.
Structural risks are equally concerning. Using non-composite or poorly extruded strips that fail to maintain shear strength over time leads to mullion deflection. When the thermal break cannot transfer loads effectively between the interior and exterior profiles, the framing system flexes under wind loads. This excessive movement can cause glazing seal failure, water infiltration, and even glass breakage.

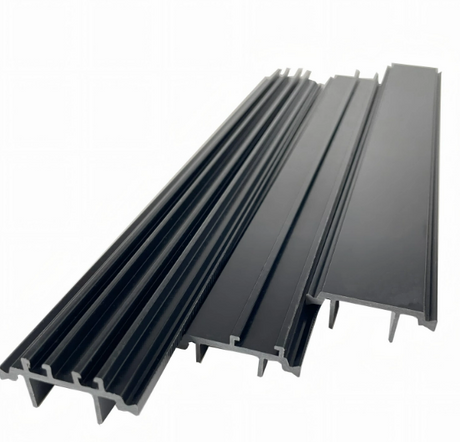

The two dominant materials used in thermal break strips are Polyamide 66 (PA66) and Polyurethane (PU). PA66 is often reinforced with 25% fiberglass, giving it high structural strength and a thermal expansion coefficient nearly identical to aluminum. This compatibility makes PA66 highly suitable for complex, structural curtain wall systems where dimensional stability under temperature fluctuations is required.
Polyurethane (PU) systems, often referred to as pour-and-debridge, offer excellent thermal resistance. However, PU has limitations in structural shear capacity compared to PA66. In heavy-duty, high-rise curtain wall applications, the thermal barrier must transfer significant wind and dead loads. PA66 strips, mechanically crimped into the aluminum profiles, provide the necessary shear strength that PU systems often lack in demanding environments.
Material Property | Polyamide 66 (PA66 GF25) | Polyurethane (PU) |
|---|---|---|
Structural Shear Strength | High (Suitable for heavy loads) | Low to Moderate |
Thermal Expansion Coefficient | Matches Aluminum | Differs from Aluminum |
Thermal Conductivity | Low | Very Low |
Manufacturing Method | Extruded and Crimped | Poured and Debridged |
Understanding the distinction between composite and non-composite systems is vital for engineering teams. In composite systems, the aluminum profiles and the thermal break strip act as a unified structural unit to resist bending. The mechanical bond between the strip and the aluminum allows the entire assembly to share the load, increasing the overall stiffness of the mullion.
In non-composite systems, the interior and exterior aluminum profiles act independently, with the thermal break transferring little to no shear stress. The choice of thermal break affects the moment of inertia of the combined mullion profile. A composite system allows for a shallower aluminum extrusion depth because the unified profile is stiffer, saving material and reducing the overall weight of the facade.
There is a technical distinction between thermally improved and thermally broken profiles. A thermally improved profile features a minor thermal barrier, often just a thin cut or a small piece of insulating material. This is generally insufficient for modern curtain walls. A thermally broken profile features a complete physical separation of interior and exterior aluminum profiles with a low-conductivity material, creating a substantial barrier to heat flow.
Thermally improved profiles may be acceptable in mild climates or low-spec projects where energy codes are lenient. However, fully thermally broken systems are mandatory for extreme climates and high-performance facades. When evaluating options, buyers must mandate fully thermally broken systems to meet stringent modern energy standards and prevent condensation on interior surfaces.
Evaluating the thermal conductivity (k-value) of the strip material itself is the first step in assessing thermal performance. The k-value measures how easily heat passes through the material. The relationship between the width and depth of the thermal break strip and the overall U-factor of the curtain wall assembly is direct. Wider strips generally provide better thermal resistance, lowering the U-factor of the entire system.
Buyers must know how to interpret manufacturer thermal data. Requesting NFRC (National Fenestration Rating Council) or equivalent regional standard test reports is necessary. These reports provide standardized, third-party verified data on the thermal performance of the assembly, ensuring the manufacturer's claims are accurate and comparable to other products on the market.
Evaluating composite shear strength involves determining how well the thermal break strip transfers loads between the exterior pressure plate and the interior mullion. This transfer is critical for maintaining the structural integrity of the facade under wind loads. The strip must resist sliding or shearing within the aluminum pocket.
Mechanical locking mechanisms are essential for preventing slippage. The knurling of the aluminum pocket and the specific geometry of the polyamide strip create a mechanical interlock when crimped together. This interlock ensures the composite profile acts as a single structural unit, capable of withstanding high wind loads without deflecting excessively.
The dead load of heavy glazing units puts rotational and shear stress on the thermal break cavity. The thermal break and its corresponding glass support brackets, or setting block chairs, must withstand the total glass weight without rotational deformation or creep. If the thermal break deforms under the sustained weight of the glass, the entire glazing system can fail.
Calculating the total structural load on the frame requires a formulaic approach based on the area of the glass, the glass thickness, and the material density factor. This load distributes across the composite thermal break. Buyers must verify that the selected strip and the aluminum extrusion design can handle this calculated load over the lifespan of the building without structural degradation.
Differential thermal expansion between the aluminum framing and the thermal break material poses a significant risk. Building envelopes experience extreme temperature variations, causing materials to expand and contract. If the thermal break expands at a different rate than the aluminum, it creates internal stress within the composite profile.
Matching the coefficient of linear thermal expansion is critical. PA66 has an expansion coefficient very close to that of aluminum. This compatibility prevents warping, stress fractures, or the loss of structural integrity over decades of temperature cycling. Evaluating this property ensures the facade remains stable and weather-tight over time.
Before committing to bulk manufacturing, buyers should mandate finite element analysis (FEA) and thermal modeling based on the specific extrusion profiles. Software like THERM simulates heat transfer through the complex geometry of the curtain wall assembly, identifying potential thermal bridges and allowing for design optimization before physical production begins.
AAMA (American Architectural Manufacturers Association) or European (EN) standard laboratory mock-up testing is necessary for verifying air, water, and structural performance. These tests subject a full-scale section of the curtain wall to simulated extreme weather conditions, ensuring the thermal break and the entire assembly perform as designed under real-world stresses.
Finite Element Analysis (FEA): Simulates structural stress distribution across the composite profile.
THERM Modeling: Identifies thermal bridges and calculates the overall U-factor of the assembly.
AAMA Mock-Up Testing: Verifies air infiltration, water penetration, and structural performance under simulated weather conditions.
Practical testing methods for evaluating prototype frames include assessing interior surface temperatures under controlled exterior temperature drops. The Condensation Resistance Factor (CRF) must be calculated and verified to ensure the selected thermal break strips will perform in the project's specific climate zone without allowing moisture to form on the interior framing.
The Surface Temperature Touch Test and infrared (IR) thermography on mock-up frames physically verify thermal performance. Under cold exterior exposure, the interior frame surface should remain close to room temperature. IR thermography visually demonstrates the absence of thermal bridges, proving the effectiveness of the thermal break strip.
Auditing the manufacturer’s facility before placing a bulk order is a critical step in vendor evaluation. Key QA/QC indicators include automated extrusion monitoring, which ensures consistent dimensional accuracy of the strips. Raw material sourcing transparency is also vital; buyers should verify the percentage of virgin versus recycled PA66 used in production, as high recycled content can compromise structural strength.
In-house shear testing protocols, such as AAMA TIR-A8, must be conducted for every production batch. This testing ensures that the mechanical bond between the thermal break and the aluminum meets the required shear strength specifications consistently across the entire order, preventing weak links in the facade system.
Specifying wider, multi-cavity thermal break strips generally incurs a higher initial material investment compared to standard strips. However, these advanced profiles offer superior thermal resistance. The decision requires analyzing the trade-offs between the immediate procurement budget and the long-term performance of the building envelope.
Premium thermal breaks contribute to HVAC downsizing, easier energy code compliance, and a long-term carbon footprint reduction for the building owner. By significantly lowering the U-factor of the facade, the building requires less energy for heating and cooling, providing substantial operational efficiency over the lifespan of the structure.
Logistical risks are inherent in bulk orders, particularly when custom extrusion dies are required for specific curtain wall profiles. Custom dies take time to design, test, and manufacture, adding weeks or months to the procurement schedule. Buyers must factor these lead times into the overall project timeline to avoid construction delays.
Evaluating supplier capacity, redundancy, and historical lead-time accuracy is essential. A supplier with multiple extrusion lines and a proven track record of on-time delivery reduces the risk of supply chain disruptions. Reliable delivery of thermal break strips keeps the fabrication and installation phases of the curtain wall on schedule.
Request physical samples of the thermal break strips from potential suppliers to verify material quality and dimensional accuracy.
Initiate project-specific thermal modeling with your facade consultant to validate the U-factor and condensation resistance of the proposed assembly.
Demand comprehensive batch-testing documentation, including shear strength and material composition reports, before finalizing any bulk order.
Audit the manufacturer's facility to ensure they have automated extrusion monitoring and robust in-house quality control procedures.
A: Verify quality by requesting third-party thermal and structural test reports like NFRC and AAMA. Demand batch-specific shear testing data and audit the manufacturer's facility for automated extrusion monitoring and raw material transparency.
A: PA66 offers high structural shear strength and matches the thermal expansion of aluminum, making it ideal for high-rise curtain walls. PU provides excellent thermal resistance but generally has lower structural shear capacity.
A: Aligning the thermal break strip with the insulating glass unit spacers creates a continuous barrier. Misalignment causes thermal bridging, allowing heat to bypass the barrier and reducing the overall energy efficiency of the facade.
A: A high-quality thermal break keeps the interior aluminum framing closer to room temperature, even in cold weather. This prevents the surface temperature from dropping below the dew point, thereby stopping condensation and mold growth.
A: In a composite system, the thermal break strip is mechanically locked into the aluminum profiles, allowing the entire assembly to act as a unified structural unit. This increases the stiffness and wind load resistance of the mullion.
