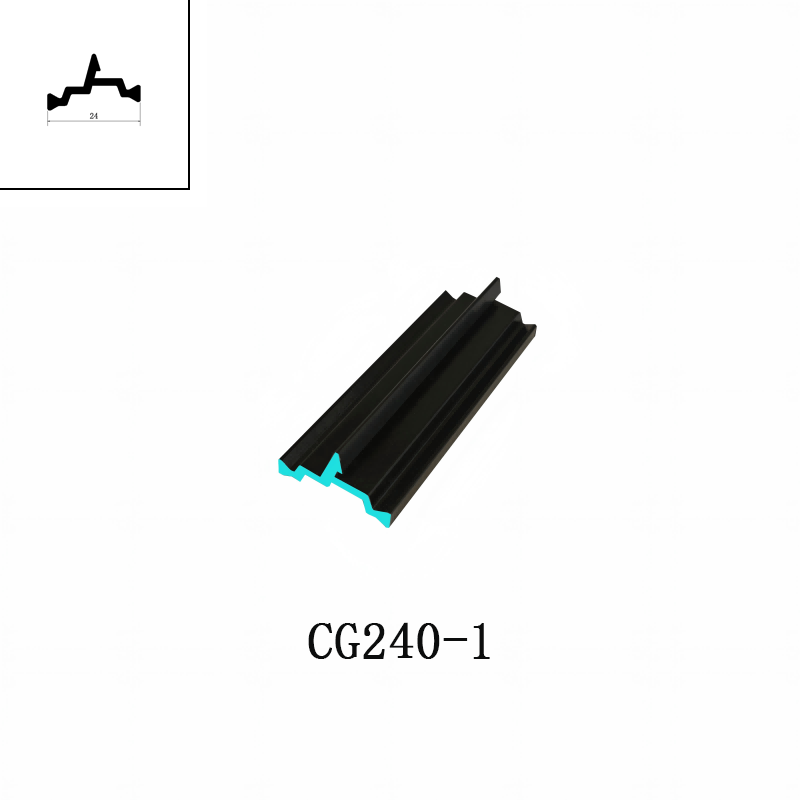

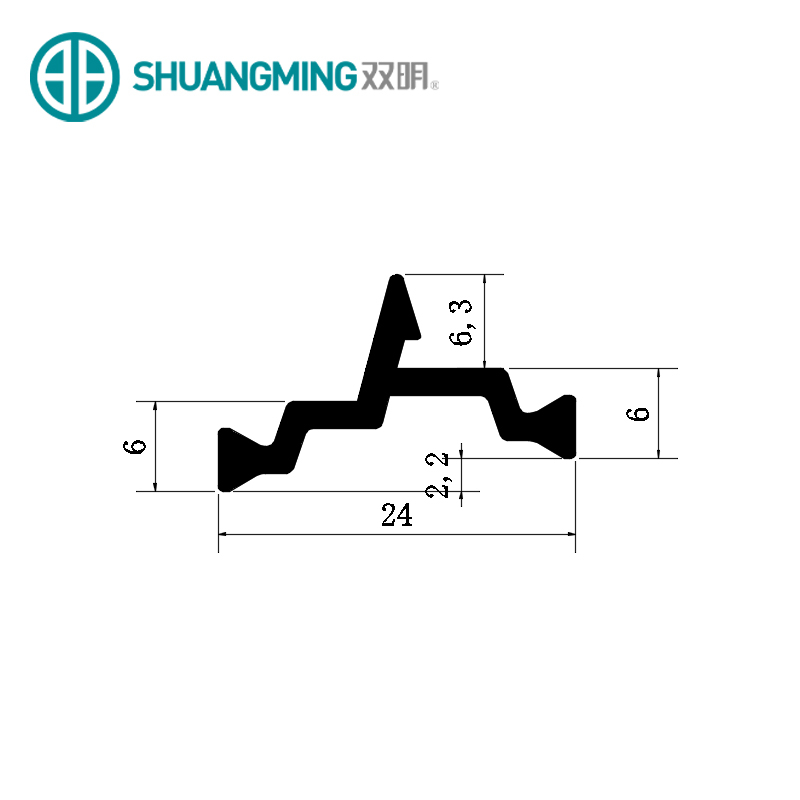

Model NO. | SM-CG240-1 | Customized | Customized |
Material | Polyamide66 Reinforced by 25%Glass Fiber | Color | Single Color（Black） |
Application | for Thermal Break Aluminum Profile | Raw Material | PA66 GF25 Granules |
Markets Served | Windows & Doors | Technical Performance | GB/T 23615.1-2009 |
Customized Laser Printing | Transport Package | Roll or Linear | |
Material Properties | High Temp Resistance （≥220 °C） | HS Code | 3926909090 |
With 3000h QUV aging resistance, Weatherproof Thermal Break Strips guarantee 50-year durability in harsh climates.
Engineered for excellence, Shuangming Plastic's High Quality PA66GF25 Low Thermal Conductivity Strips deliver unmatched reliability in demanding industrial environments. Reinforced with 25% glass fiber, these strips combine Superior Bending Strength PA66GF25 Low Thermal Conductivity Strips with Excellent Insulation Performance PA66GF25 Low Thermal Conductivity Strips, making them ideal for electrical and thermal management applications.
Our advanced material ensures High Dimensional Stability PA66GF25 Low Thermal Conductivity Strips, resisting warping under stress while maintaining precision tolerances. The Self-Lubricating Surface PA66GF25 Low Thermal Conductivity Strips reduces friction, extending component lifespan in high-movement systems. Additionally, the UV Resistant PA66GF25 Low Thermal Conductivity Strips provide long-term durability even in outdoor or high-exposure settings.
PA66GF25 Low Thermal Conductivity Strips blend 65% PA66 resin with 25% fiberglass reinforcement. With heat deflection temperature ≥220°C and linear expansion coefficient matching aluminum ((2.3-3.5)×10⁻⁵/K), they guarantee zero deformation from -40℃ to 120℃.
Building insulation strips PA66GF25 meet international fire resistance standards, offering enhanced fire safety by slowing fire spread.
Insulation strips for thermal break aluminum doors and windows also provide acoustic insulation, reducing noise transmission for quieter indoor spaces.
Insulation strips for aluminum alloy doors and windows have a service life exceeding 50 years under normal conditions, minimizing replacement and maintenance costs.
Building doors and windows insulation strips adhere well to aluminum, stainless steel, and other materials for stable and sealed structures.
Curtain wall insulation strips PA66GF25 comply with international building codes and safety standards for reliable quality assurance.
Certified PA66GF25 Thermal Barrier Strips cut thermal transfer by 533x (0.3W/(m·K) vs aluminum). With ≥82MPa transverse tensile strength and GB/T 23615.1 compliance, they eliminate structural failure risks.
NO. | Item | Unit | GB/T 23615.1-2009 | SM-Technical specification |
1 | Density | g/cm³ | 1.3±0.05 | 1.28-1.35 |
2 | Linear expansion coefficient | K⁻¹ | (2.3-3.5)×10⁻⁵ | (2.3-3.5)×10⁻⁵ |
3 | Vicat softening temperature | °C | ≥230 | ≥240 |
4 | Melting point(0.45MPa) | °C | ≥240 | ≥255 |
5 | Testing for tensile cracks | - | No cracks | No cracks |
6 | Shore hardness | - | 80±5 | 80-85 |
7 | Impact strength(Unnotched) | KJ/m² | ≥35 | ≥40 |
8 | Tensile strength(longitudinal) | MPa | ≥80 | ≥84 |
9 | Elasticity modulus | MPa | ≥4500 | ≥4600 |
10 | Elongation at break | % | ≥2.5 | ≥4 |
11 | Tensile strength(transverse) | MPa | ≥70 | ≥80 |
12 | High temperature tensile strength(transverse) | MPa | ≥45 | ≥50 |
13 | Low temperature tensile strength(transverse) | MPa | ≥80 | ≥85 |
14 | Water resistance tensile strength(transverse) | MPa | ≥35 | ≥45 |
15 | Aging resistance tensile strength(transverse) | MPa | ≥50 | ≥60 |

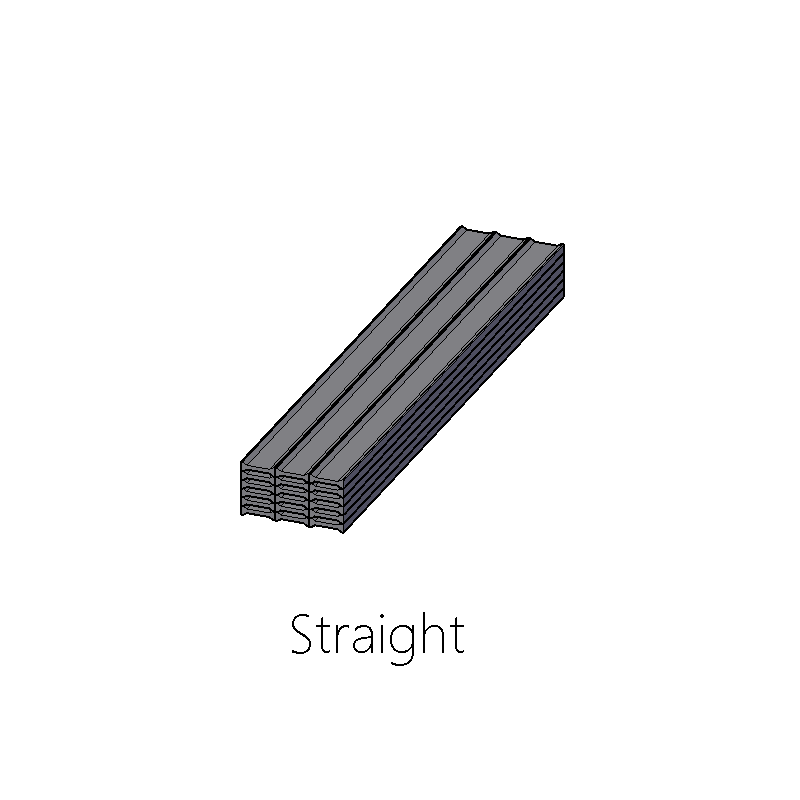

PA66GF25 Heat Insulation Bars enable 6m custom length/coil packaging with ±0.05mm precision. German roll-forming technology ensures seamless aluminum integration, resisting hydrolysis/UV degradation for 40+ years.
