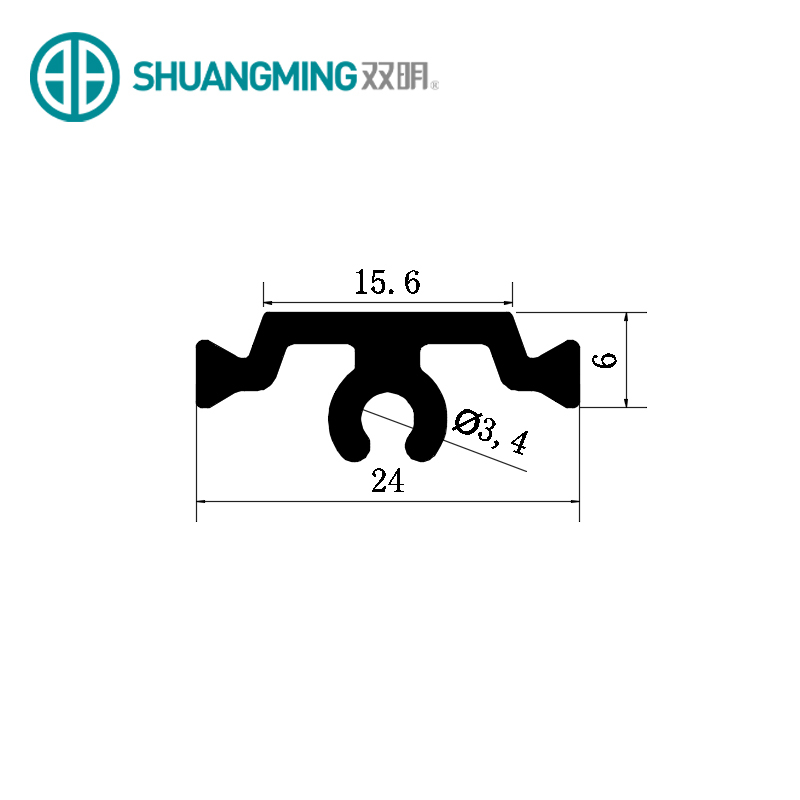

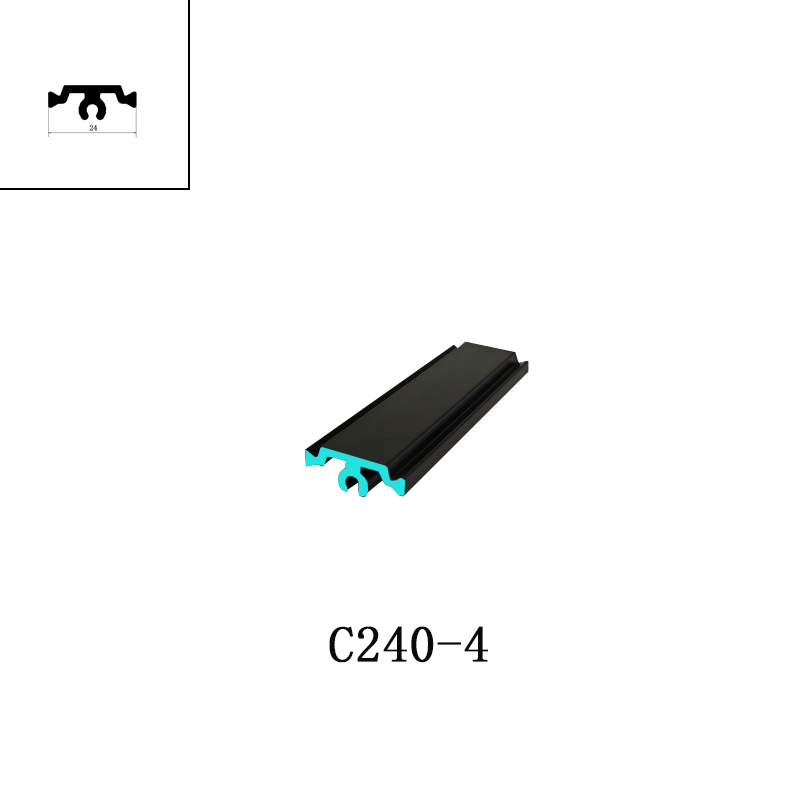

Model NO. | SM-C240-4 | Customized | Customized |
Material | Polyamide66 Reinforced by 25%Glass Fiber | Color | Single Color（Black） |
Application | for Thermal Break Aluminum Profile | Raw Material | PA66 GF25 Granules |
Markets Served | Windows & Doors | Technical Performance | GB/T 23615.1-2009 |

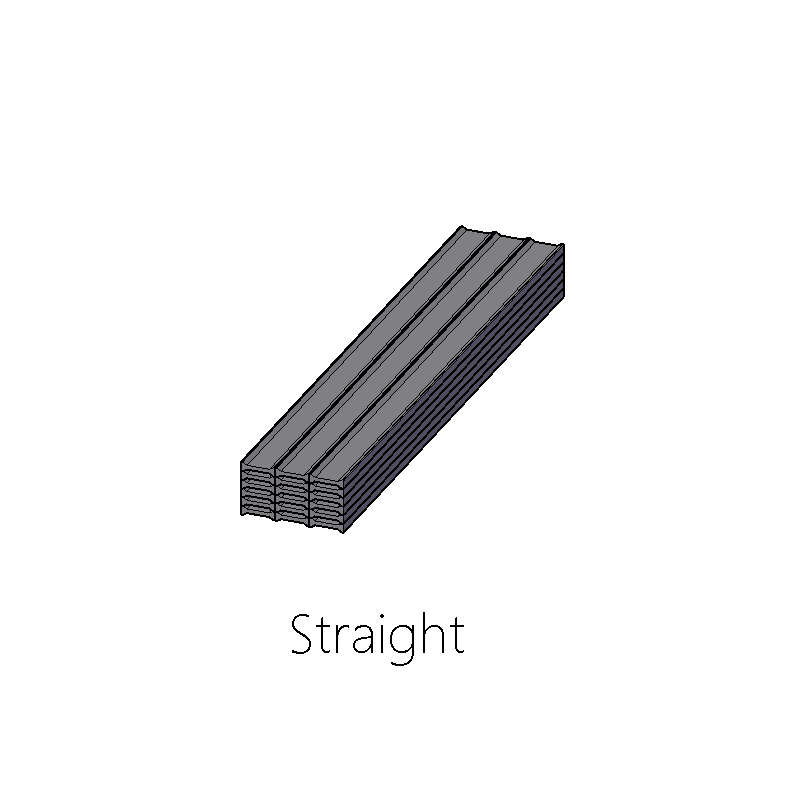

Customized Laser Printing | Transport Package | Roll or Linear | |
Material Properties | High Temp Resistance （≥220 °C） | HS Code | 3926909090 |
Our PA66GF25 Thermal Barrier Strips are made from imported raw materials and go through multiple precision processing steps to ensure excellent heat resistance and aging resistance.
Shuangming Plastic’s 25% Glass-Filled PA66 Insulation Strips are engineered to offer exceptional performance under demanding conditions. Thermal-stable 25% Glass-Filled PA66 Insulation Strips, ensuring reliable performance even in high-temperature environments. Designed with Flame-retardant 25% Glass-Filled PA66 Insulation Strips, they provide an extra layer of safety and protection against fire hazards. Their Electrical-insulating 25% Glass-Filled PA66 Insulation Strips nature makes them perfect for use in electrical applications, preventing short circuits and electrical malfunctions.
These strips also boast Moisture-resistant 25% Glass-Filled PA66 Insulation Strips qualities, safeguarding against moisture-induced damage and ensuring long-lasting durability. The High-dielectric 25% Glass-Filled PA66 Insulation Strips properties of the strips offer excellent insulation, making them ideal for various industrial uses. Additionally, the UV-resistant 25% Glass-Filled PA66 Insulation Strips composition ensures that the strips maintain their integrity even when exposed to harsh outdoor environments.
Whether you're working with high-voltage equipment or need a reliable solution for temperature-sensitive applications, Shuangming Plastic’s 25% Glass-Filled PA66 Insulation Strips provide the durability, safety, and efficiency your projects demand.
This PA66GF25 Heat Insulation Bars is an ideal choice for high - end energy saving - windows and doors, effectively reducing heat transfer between indoor and outdoor environments and enhancing building energy efficiency.
from -40°C to 120°C without deformation.
2. With 0.3W/(m·K) thermal conductivity, SGS test report for insulation strips boost window energy efficiency by 40%.
3. UV-resistant and anti-corrosion properties ensure 30+ years service life for polyamide barrier strips.
4.±0.05mm tolerance guarantees seamless assembly with polyamide insulation strips, eliminating air leakage.
5.Zero VOC emissions and REACH certification make PA66GF25 thermal break strips ideal for healthcare facilities.
Choosing our PA66GF25 Glass-Fiber Reinforced Nylon Strips means choosing high quality and reliability, adding core competitiveness to your window and door projects.
NO. | Item | Unit | GB/T 23615.1-2009 | SM-Technical specification |
1 | Density | g/cm³ | 1.3±0.05 | 1.28-1.35 |
2 | Linear expansion coefficient | K⁻¹ | (2.3-3.5)×10⁻⁵ | (2.3-3.5)×10⁻⁵ |
3 | Vicat softening temperature | °C | ≥230 | ≥240 |
4 | Melting point(0.45MPa) | °C | ≥240 | ≥255 |
5 | Testing for tensile cracks | - | No cracks | No cracks |
6 | Shore hardness | - | 80±5 | 80-85 |
7 | Impact strength(Unnotched) | KJ/m² | ≥35 | ≥40 |
8 | Tensile strength(longitudinal) | MPa | ≥80 | ≥84 |
9 | Elasticity modulus | MPa | ≥4500 | ≥4600 |
10 | Elongation at break | % | ≥2.5 | ≥4 |
11 | Tensile strength(transverse) | MPa | ≥70 | ≥80 |
12 | High temperature tensile strength(transverse) | MPa | ≥45 | ≥50 |
13 | Low temperature tensile strength(transverse) | MPa | ≥80 | ≥85 |
14 | Water resistance tensile strength(transverse) | MPa | ≥35 | ≥45 |
15 | Aging resistance tensile strength(transverse) | MPa | ≥50 | ≥60 |

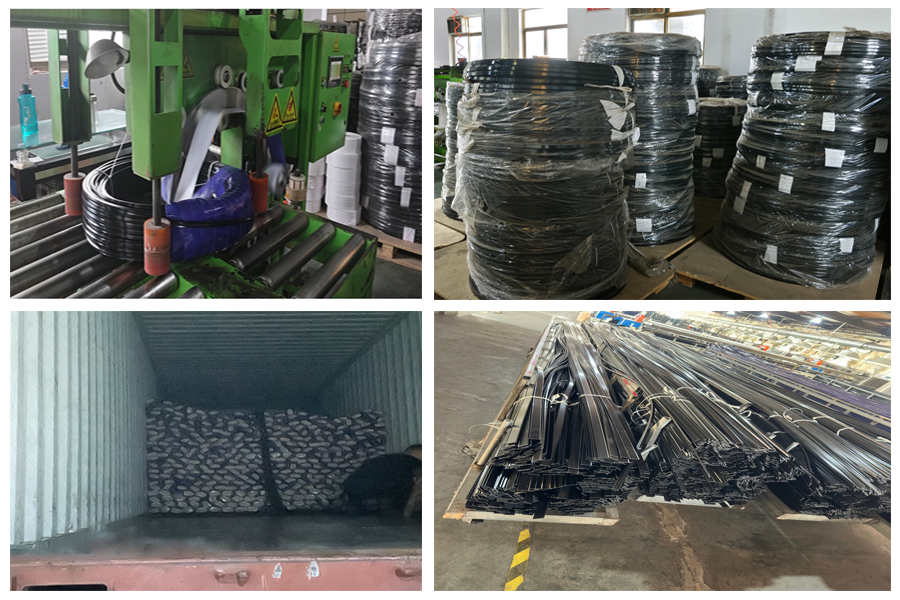

Our factory has large - scale production capacity and can quickly respond to orders for PA66GF25 Thermal Insulation Profiles, providing timely delivery services.
