PA66GF25 Strips Compliant with ISO 9001

The advancement of thermal solutions in the construction industry is significantly propelled by innovations like our EN 14024 Certified Thermal Break Profiles. These strips represent a forward-thinking approach to addressing thermal challenges in building projects.

Availability:

Quantity:



Inquire Add to Basket

PA66GF25 Strips Compliant ISO 9001 High-strength PA66GF25 strips compliant with ISO 9001 Industrial-grade PA66GF25 strips compliant with ISO 9001 Custom-sized PA66GF25 strips compliant with ISO 9001 Thermal-resistant PA66GF25 strips compliant with ISO 9001 Automotive PA66GF25 strips compliant with ISO 9001 Efficient PA66GF25 strips compliant with ISO 9001

Product Description

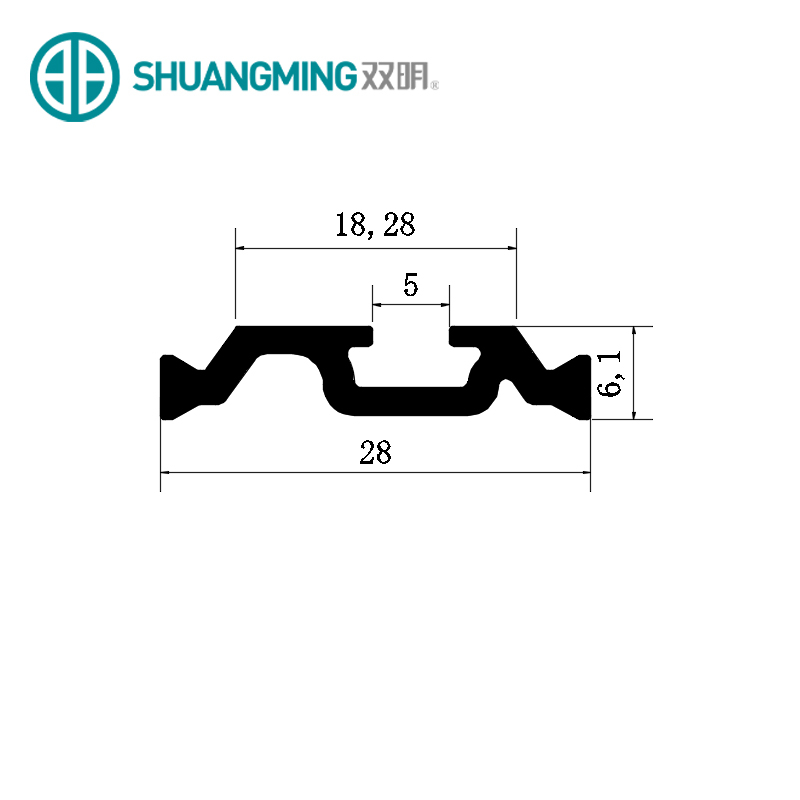

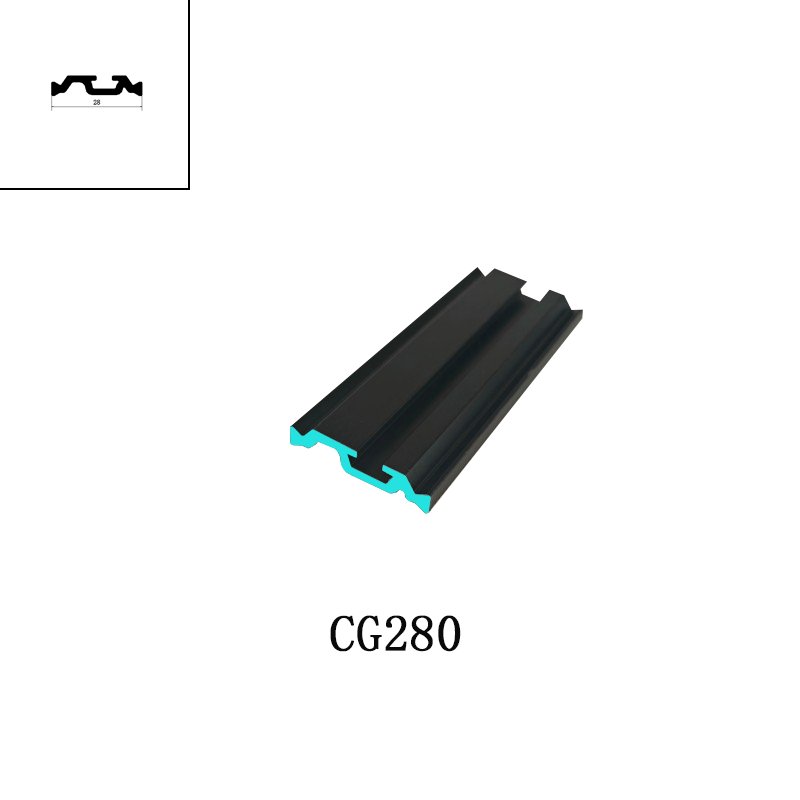

Model NO.	SM-CG280	Customized	Customized
Material	Polyamide66 Reinforced by 25%Glass Fiber	Color	Single Color（Black）
Application	for Thermal Break Aluminum Profile	Raw Material	PA66 GF25 Granules
Markets Served	Windows & Doors	Technical Performance	GB/T 23615.1-2009
Print	Customized Laser Printing	Transport Package	Roll or Linear
Material Properties	High Temp Resistance （≥220 °C）	HS Code	3926909090

UL94 V-0 flame class, RoHS 3.0 compliant, Glass-Fiber Reinforced PA66 Thermal Profiles is fully recyclable, 43 % lower CO₂ than PVC.

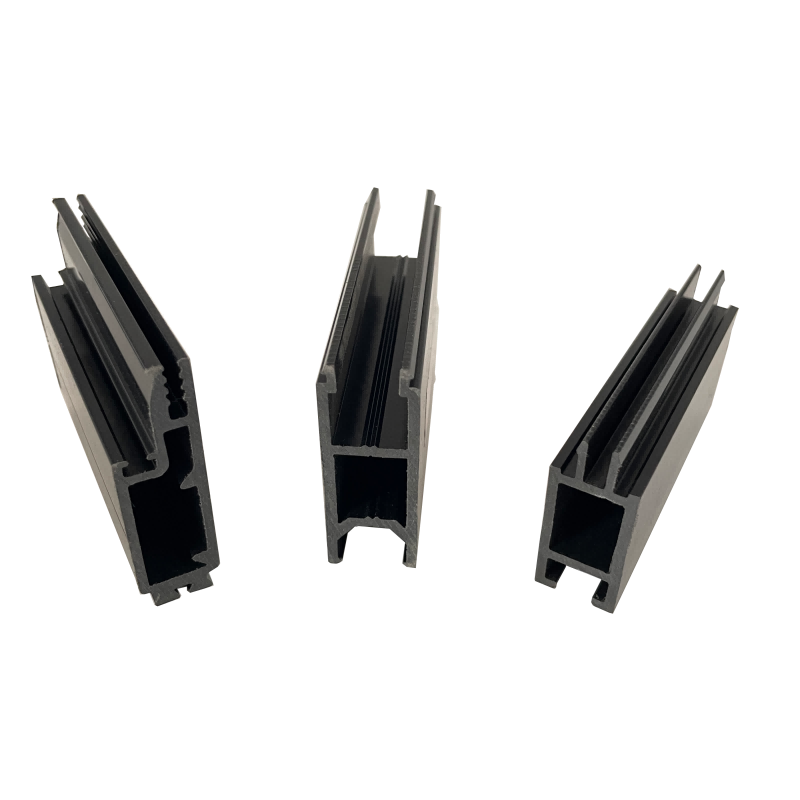

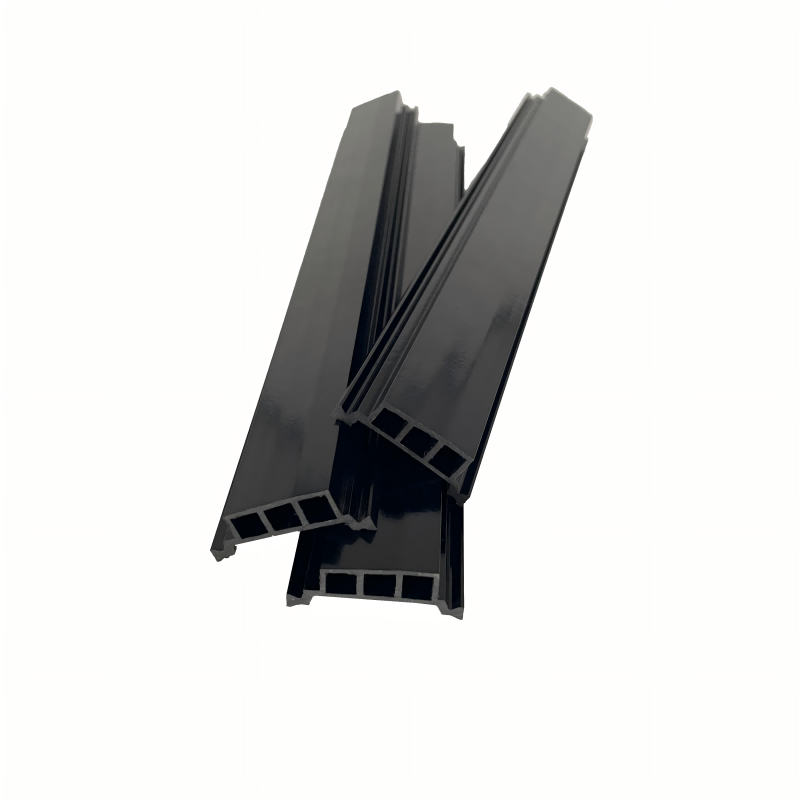

30(1) 16(1)

Product Introduction

The development of advanced thermal solutions in the construction industry is greatly enhanced by our range of PA66GF25 strips, all compliant with ISO 9001 standards. These high-strength PA66GF25 strips are engineered for durability and reliability, making them ideal for various applications requiring robust thermal management. Our industrial-grade PA66GF25 strips, also compliant with ISO 9001, deliver exceptional performance in demanding environments, ensuring long-lasting thermal resistance. For projects with specific requirements, we offer custom-sized PA66GF25 strips compliant with ISO 9001, providing tailored solutions that fit seamlessly into diverse construction details. The thermal-resistant PA66GF25 strips are specially designed to withstand high temperatures, making them suitable for both construction and automotive industries. Whether you need automotive-grade PA66GF25 strips compliant with ISO 9001 or efficient solutions for energy conservation, our products meet the highest quality standards. Easy to install and compatible with standard construction practices, these strips effectively serve as thermal breaks, reducing heat transfer and enhancing building energy efficiency. Our RoHS-compliant PA66GF25 insulation strips are not just products—they are a vital step toward achieving superior thermal performance and sustainability in modern building projects.

Corona-treated PA66GF25 Window Insulation Bars grips roll-coat adhesive instantly, 3-second positioning, 5× faster assembly.

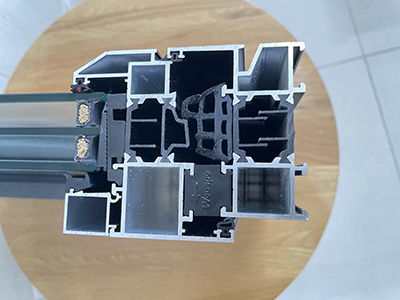

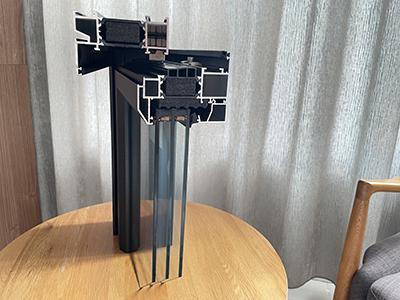

微信图片_20250612133436 微信图片_20250612133442

Product Advantage

Polyamide insulation strips with PA66GF25 material offer exceptional thermal insulation, reducing heat transfer to boost energy efficiency and cut energy use.
The PA66 insulation strip's 25% glass fiber reinforcement boosts tensile strength and stability, resisting deformation under stress.
PA66GF25 insulation strip perform stably from -40°C to +120°C, ensuring reliable insulation in diverse climates.
The polyamide material provides excellent chemical resistance, making the PA66 nylon insulation strip suitable for harsh industrial settings.
Glass fiber reinforced nylon insulation strip offer superior electrical insulation to prevent arc flashes and leakage currents in equipment.

Homogeneous glass-fiber dispersion gives Weatherproof Thermal Break Strips a fiber-free surface; perfect for anodized color matching and seamless curtain-wall joints.

新版1 新版2

Technical Parameters

NO.	Item	Unit	GB/T 23615.1-2009	SM-Technical specification
1	Density	g/cm³	1.3±0.05	1.28-1.35
2	Linear expansion coefficient	K⁻¹	(2.3-3.5)×10⁻⁵	(2.3-3.5)×10⁻⁵
3	Vicat softening temperature	°C	≥230	≥240
4	Melting point(0.45MPa)	°C	≥240	≥255
5	Testing for tensile cracks	-	No cracks	No cracks
6	Shore hardness	-	80±5	80-85
7	Impact strength(Unnotched)	KJ/m²	≥35	≥40
8	Tensile strength(longitudinal)	MPa	≥80	≥84
9	Elasticity modulus	MPa	≥4500	≥4600
10	Elongation at break	%	≥2.5	≥4
11	Tensile strength(transverse)	MPa	≥70	≥80
12	High temperature tensile strength(transverse)	MPa	≥45	≥50
13	Low temperature tensile strength(transverse)	MPa	≥80	≥85
14	Water resistance tensile strength(transverse)	MPa	≥35	≥45
15	Aging resistance tensile strength(transverse)	MPa	≥50	≥60

Noise Reduction Thermal Barrier Strips has excellent thermal insulation performance with a low thermal conductivity, effectively preventing heat transfer.

FAQ

Q: What is the bonding strength between Low Thermal Conductivity Polyamide Strips and aluminum?

A: Fire-Retardant Nylon Insulation Bars bond strongly with aluminum. After special process treatment, the two are closely combined and not easily separated, ensuring the stability and safety of windows and doors.

Q: Are UV-Resistant Polyamide Insulation Strips prone to water absorption?

A: Fibre Glass Polyamide Insulation feature a low water absorption rate of only 0.1% - 0.3%. They are not likely to absorb water and expand or deform in humid environments and can maintain good performance.

Q: What is the mechanical strength of Insulating Glazing Bars?

A:U-Channel Polyamide Insulation Profiles have high mechanical strength, with tensile strength reaching 120MPa - 150MPa. They can withstand various stresses that windows and doors encounter during use.

Q: What is the production process for Weatherproof Thermal Break Strips?

A:Our company uses advanced injection molding and extrusion processes to manufacture Noise Reduction Thermal Barrier Strips, ensuring the stability of product quality and performance.
