Is Thermal Break Strips Worth It?

Builders face a challenging dilemma today. Integrating thermal break strips often means adding thousands of dollars to upfront framing costs. You might wonder if this extra expense is truly justified. Building codes like IECC and ASHRAE 90.1 grow stricter every year. Meanwhile, HVAC operational costs continue climbing. Eliminating thermal bridging is no longer an optional luxury. However, you must ask if a dedicated barrier remains the most cost-effective solution. We need to evaluate the true return on investment. This means moving beyond theoretical R-values. We must look closely at real-world implementation risks. We also need to examine structural demands and systemic building envelope performance. Poorly planned insulation upgrades can fail miserably. By understanding the physics of heat transfer, you can make smarter construction choices. This guide breaks down the financial and physical realities. You will learn exactly when and how to implement these thermal solutions for maximum impact.

Key Takeaways

• ROI depends on timing: Implementing thermal break strips during the initial framing stage yields a high ROI; retrofitting severely degrades cost-effectiveness.

• Hidden vulnerabilities: Small structural elements (e.g., steel z-girts covering 10% of a wall) can reduce effective R-values by up to 50% without thermal breaks.

• Systemic risks over isolated fixes: Poor airtightness and "diagonal heat transfer" can render expensive thermal breaks ineffective.

• Beyond energy savings: Secondary benefits like condensation control, mold prevention, and qualifying for 179D tax deductions often justify the initial expenditure.

The Core Problem: Unmasking the "Wall Delta" and Thermal Bridging

Modern building envelopes suffer from a persistent issue known as the "Wall Delta." This term describes a specific, measurable difference. It is the temperature gap between indoor and outdoor surfaces caused by structural thermal highways. Metal studs, wood framing, aluminum extrusions, and concrete balconies act as fast lanes for heat. They pull warm air out during winter. They draw hot air in during summer. You can clearly see this energy bleed on a thermal imaging camera. Red and blue temperature gradients map out every hidden stud behind your drywall. This constant energy loss directly drains your budget.

You might think small structural connections matter very little. Industry modeling realities prove otherwise. Highly conductive materials usually make up only 3% to 10% of a building’s exterior area. However, they can account for a staggering 30% to 50% of total heat loss. For example, steel Z-girts might only cover one-tenth of your wall space. Without properly installed thermal break strips, they can slash your wall's effective R-value by half. A concrete balcony slab protruding from a high-rise represents only 3% of the facade. Yet, it can drain massive amounts of interior heat. Small uninsulated areas cause disproportionate financial damage.

Many contractors attempt to solve this by upgrading their cavity insulation. They pack wall cavities with higher R-value blown-in fiberglass or dense-pack cellulose. Unfortunately, this strategy fails to stop structural heat transfer. Insulation sits between the studs. It does nothing to slow the energy traveling directly through the structural skeleton itself. Heat follows the path of least resistance. It simply bypasses the thick cavity insulation. It travels straight through the highly conductive steel framing. You cannot solve a structural conduction problem using cavity insulation alone. You must physically sever the conductive pathway.

Quantifying the ROI of Thermal Break Strips

You must map specific material features to concrete financial outcomes. Cutting the conduction path fundamentally lowers your peak HVAC load requirements. When you install effective thermal break strips, your building retains heat better. This allows engineers to specify smaller, less expensive mechanical heating and cooling equipment. You save significant money upfront on HVAC sizing. Additionally, cutting thermal highways eliminates drafty "cold spots" inside rooms. Occupants experience consistent, uniform comfort. They stop turning up the thermostat to compensate for cold walls. These immediate load reductions generate reliable, ongoing monthly savings.

Moisture management provides another critical financial safeguard. We must position condensation control as a major liability shield. When a cold structural stud meets warm interior air, moisture condenses. Water droplets form inside the wall cavity. Over time, this trapped moisture destroys drywall and rots wood framing. It also creates a perfect breeding ground for toxic black mold. Integrating quality barriers keeps interior surface temperatures well above the dew point. This active prevention stops internal wall condensation entirely. It mitigates massive legal liabilities regarding mold. It also extends the physical lifecycle of your entire building assembly.

We must also look at compliance and modern financial incentives. Green building standards dictate future asset values. The initial investment unlocks substantial corporate and commercial benefits. Consider the following direct financial levers:

• Meeting stringent AIA 2030 commitments and Net Zero carbon emission targets.

• Earning valuable LEED certification credits specifically for Indoor Environmental Quality.

• Leveraging the Section 179D commercial buildings energy-efficiency tax deduction.

Federal tax deductions like 179D can directly offset your initial material costs. They reward developers who exceed baseline ASHRAE 90.1 energy standards. An upfront investment in proper structural separation pays for itself through immediate tax breaks and elevated property valuations.

Material Categories: Matching the Strip to the Application

Not all insulation materials perform the same under pressure. You must evaluate solutions based on structural load, climate severity, and installation flexibility. Selecting the wrong material can compromise your structural integrity or worsen heat loss. Let us examine the three primary categories used in commercial and residential framing.

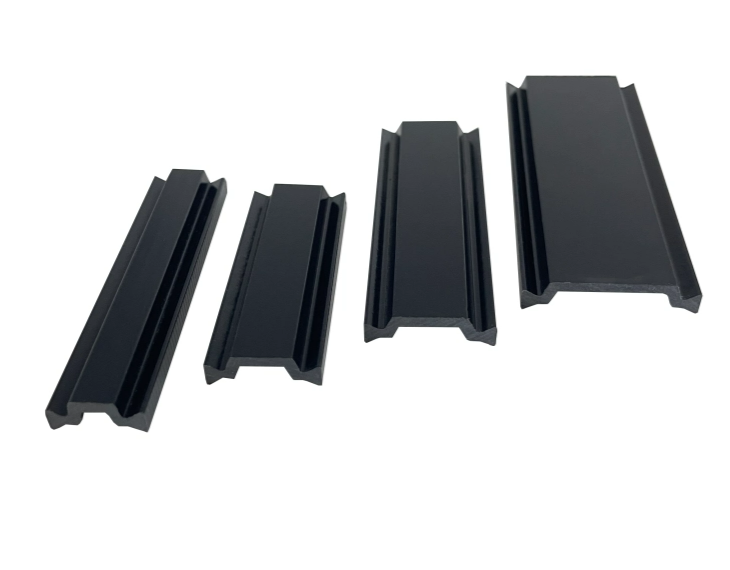

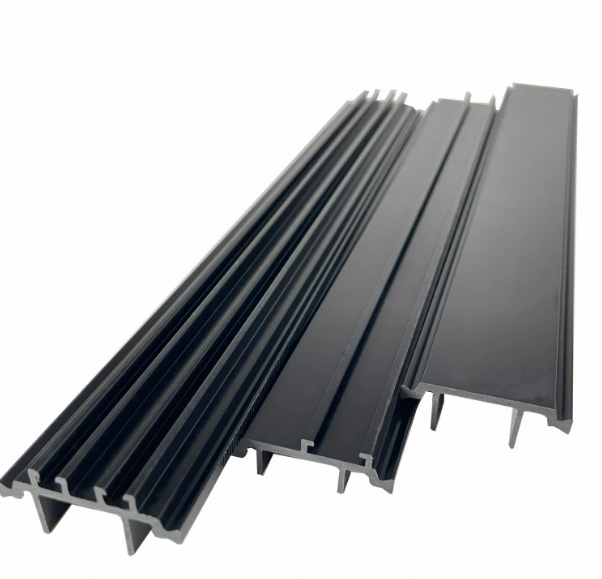

Polyamide (PA66) is an advanced engineering plastic. Manufacturers often reinforce it with fiberglass. We highly recommend Polyamide for load-bearing structures. It withstands severe climates and massive mechanical stress. It offers exceptional structural permanence. It maintains steel-to-steel and concrete-to-concrete connections without shrinking or degrading over time. If you are building a heavy commercial facade, PA66 delivers the necessary strength.

Polyurethane acts as a highly flexible poured solution. The pour-and-debridge method involves injecting liquid polyurethane into an aluminum extrusion channel. Once it cures, the manufacturer cuts away the metal bridge. We position this as an ideal solution for complex retrofits. It works exceptionally well for specific, intricate window and door frames. It fills irregular gaps perfectly.

Extruded Polystyrene (XPS) self-adhesive tapes provide a different advantage. They prioritize ease of installation. Workers simply peel and stick the tape onto structural studs. This drastically reduces expensive labor costs. XPS features a closed-cell structure. It does not absorb water. This non-water-absorbing property makes XPS ideal for high-moisture coastal environments. It protects the framing against driving rain and heavy humidity.

Implementation Realities: When Do Thermal Break Strips Fail?

Even the best materials can fail if applied incorrectly. We must address common industry skepticism. Field tests sometimes show minimal improvement after adding insulation barriers. This happens due to the "diagonal heat transfer" risk. Heat flow is highly unpredictable. It does not simply travel in straight parallel lines. If you isolate one steel stud but leave an adjacent metal component exposed, heat bypasses the barrier. It travels laterally through the highly conductive flanking materials. This flanking transmission can completely bypass your thermal break strips. You must evaluate the building envelope holistically to prevent energy from finding a side door.

You also need to understand the minimum thickness threshold. Many builders use overly thin materials just to check a compliance box. This practice is dangerous. Thermal modeling evidence reveals a surprising fact. Breaks under 1-inch thick can sometimes worsen overall heat loss. A thin strip separates the metal components slightly. However, it requires longer fasteners or larger connection brackets to hold the assembly together. These larger metal connections expand the highly conductive surface area. If the insulating layer is too thin, the increased metal mass offsets any gained resistance. Always ensure your separating materials are adequately thick.

Finally, we must discuss airtightness versus conduction. Conduction is only one way a building loses energy. Air leaks bleed heat much faster than solid materials conduct it. An unsealed envelope will hemorrhage expensive conditioned air. You can install the most advanced Polyamide barriers available. However, if gaps exist around your window frames, you will lose money. Physical separation must be paired with rigorous air sealing. Use high-quality weather barriers and seal all joints. Only a truly airtight system allows these advanced materials to realize their stated ROI.

Decision Framework: Should You Make the Investment?

Weighing upfront costs against long-term performance requires a structured approach. Use this decision framework to determine if you should pull the trigger on this investment. We rely on clear shortlisting logic and strict go/no-go criteria. Consider these three critical factors before finalizing your building envelope design.

1. Assess the Project Phase: Timing dictates your return on investment. We highly recommend integrating these materials during the pre-construction or framing stage. Installation is cheap and seamless when the skeleton is exposed. Conversely, we deprioritize this investment if the structure is already built. Tearing off cladding to insert barriers destroys your budget. For existing buildings, adding exterior continuous insulation provides a much better alternative.

2. Conduct a Climate Zone Assessment: Geography matters immensely. These solutions are absolutely essential for extreme climates. If your region experiences aggressive winter-summer temperature swings, you need them. Coastal areas and alpine regions face harsh expansion, contraction, and aggressive dew points. Moderate climates with mild year-round temperatures see a slower return on investment. Evaluate your specific local weather data before committing.

3. Compare Alternative Strategies: Always weigh the opportunity costs. Suppose a contractor quotes you $5,000 for high-performance barriers. You must compare that quote against alternative methods. Could you achieve similar performance by applying vapor-permeable Rockwool exterior continuous insulation? Rockwool wraps the entire building in a warm blanket. It covers the studs from the outside. Run the thermal models. Sometimes, a hybrid approach yields the highest performance for the lowest price.

Your team should evaluate these points objectively. Do not buy materials simply because a code inspector suggested them. Understand the physics behind your specific wall assembly. Match the solution directly to your architectural constraints and budget limits.

Conclusion

The final verdict is clear. High-quality thermal break strips are absolutely worth the initial investment. However, this holds true only under specific conditions. You must integrate them early during the design and framing phase. You must size them correctly, ensuring they are at least 1 inch thick. Most importantly, you must treat them as one component of a holistic, airtight building envelope. Isolated fixes fail. Systemic planning succeeds.

Your next step should involve professional verification. Advise your design team to consult a certified building science engineer. Request localized thermal modeling for your specific project. Do this before selecting between Polyamide (PA66), XPS, or Polyurethane. A detailed energy model ensures total code compliance. It prevents costly trial-and-error mistakes. It guarantees you maximize your return on investment while delivering a superior, moisture-free building.

FAQ

Q: Do thermal break strips affect the structural integrity of the wall?

A: No. Modern materials like Polyamide (PA66) are heavily engineered specifically to bear high structural loads. They maintain incredible structural permanence. You can safely use them in heavy commercial facades without compromising your critical steel-to-steel or concrete-to-concrete connections. They stop heat flow without sacrificing physical strength.

Q: Can I add thermal break strips to an existing building?

A: It is possible, but it is highly labor-intensive and costly. Tearing down walls to access the frame destroys budgets. For retrofits, alternative methods are usually more viable. We recommend using exterior continuous insulation. You can also use targeted polyurethane pour-and-debridge applications specifically for upgrading fenestration.

Q: Will adding thermal break strips cause moisture to get trapped in the walls?

A: No. In fact, they actively prevent condensation. By keeping interior surfaces warmer than the dew point, they stop moisture from forming on the studs. However, you must pair them with appropriate vapor-permeable weather barriers, like Tyvek or Rockwool. This allows the overall wall assembly to dry properly.
