How to Install Thermal Break Strips for Improved Energy Efficiency？

You want your home to stay warm in winter and cool in summer without wasting energy. Installing Thermal Break Strips is one of the best ways to stop heat from slipping through the cracks. Did you know that thermal bridging can cause up to 25% of heat loss in your house? Take a look at how much energy you might be losing:

If you tackle these trouble spots, you can make your living spaces more comfortable and even lower your energy bills.

Key Takeaways

Thermal break strips stop heat from moving through metal frames. They help your home stay warm in winter and cool in summer. This also saves energy.

Picking the right material and size for your thermal break strips is important. It makes sure you get good insulation and long-lasting use. This matters most for aluminum windows and doors.

To install them right, clean the surfaces first. Measure everything carefully. Seal every gap to stop heat loss and air leaks.

Do not make mistakes like putting strips in the wrong place or not sticking them well. Do not forget to check for air leaks. This helps you save more energy and feel more comfortable.

Check your strips often. You can also add weatherstripping or heavy curtains. These easy steps help your home use less energy and stay quieter.

What Are Thermal Break Strips?

Thermal break strips are special materials. They help stop heat from moving through your home. You find them in places like metal window frames or walls. Experts say these strips block the path heat takes. When you put them between two metal pieces, they act as a barrier. This keeps warm air inside during winter. It also keeps cool air inside during summer. You use less energy to heat or cool your home. This helps you save money and helps the environment.

How They Work

You might wonder how these strips work. It is easy to understand. Heat moves through metal very fast. But thermal break strips use plastic or fiberglass. These materials do not let heat pass through easily. When you install them, they stop heat from moving straight through. This is called stopping “thermal bridging.” If you have aluminum windows or doors, these strips help a lot. Studies show thermal breaks in aluminum frames cut energy use by about 25%. Your home stays comfortable all year.

Key Benefits

Here are some reasons to use thermal break strips in your home:

Better insulation: They help keep rooms at the right temperature.

Lower energy bills: You do not need to use your heater or air conditioner as much.

Less noise: Some types, like sound proof thermal break strips, block outside sounds.

Custom fit: You can get customized size thermal break strips for any window or door.

Strong and durable: High strength thermal break strips last a long time, even in tough weather.

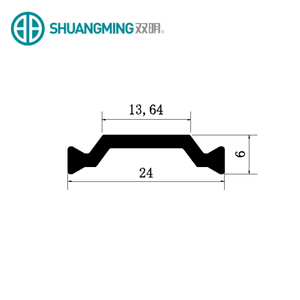

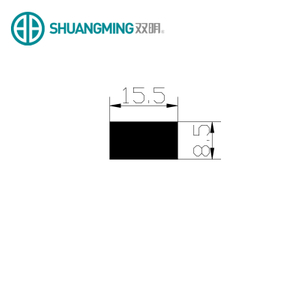

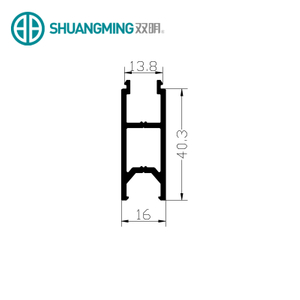

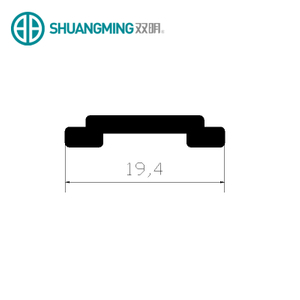

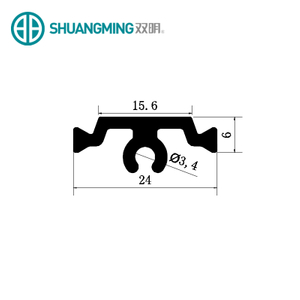

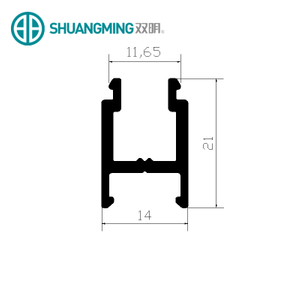

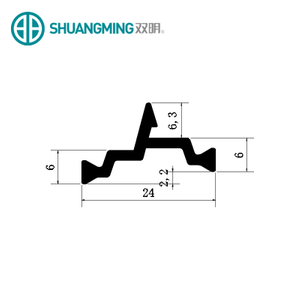

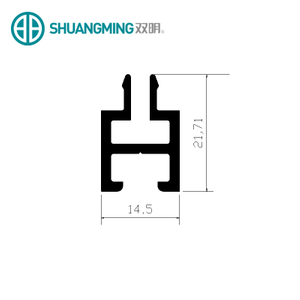

Here is a quick look at the main types you might see:

You can use thermal break strips for aluminum windows and curtain walls. They also help with noise insulation in buildings. No matter which type you pick, you will notice more comfort and energy savings.

Choosing Materials and Tools

Types and Applications

You want your home to feel nice and save energy. Most Thermal Break Strips use polyamide 66 with 25% glass fiber, called PA66GF25. This material is strong and works well with aluminum. It does not let heat move through easily. Its thermal conductivity is about 0.3 W/mK. This is much lower than aluminum. Some strips use polyurethane, like Pour & Debridge. These have even lower thermal conductivity, about 0.12 W/mK. PVC was used before, but it is not as strong or stable.

You can use these materials in many places. Thermal Break Strips work for Sliding Aluminum Door and Window, Aluminum Profile, and Noise Insulation of Building. Aluminum sliding doors and windows help block noise. The right material can make your home quieter. It can also lower sound by a few decibels.

Picking the right size and strength is important. The strip should fit your window or door frame. Some jobs need customized size thermal break strips. Others need high strength thermal break strips for heavy loads or bad weather. Always check the cavity width. Think about how much weight or stress the strip will handle.

Tip: Make each thermal barrier fit your window or door. This helps you save energy and stay comfortable.

Tools Needed

You do not need special tools for this job. Here is a simple list to help you:

Measuring tape to check frame width

Utility knife or fine-tooth saw to cut strips

Screwdriver or drill to remove and put back parts

Adhesive or self-adhesive backing to hold strips in place

Safety gloves and goggles to keep you safe

With the right materials and tools, you can put in Thermal Break Strips. Your home will feel better and your bills may go down.

Installing Thermal Break Strips

Preparation Steps

Before you start, you need to get your space ready. Good preparation makes the job easier and helps you get the best results. Here’s what you should do:

Measure the frames or surfaces where you plan to install the strips. Write down the sizes.

Clean the area. Remove dust, dirt, and old sealant. A clean surface helps the strips stick better.

Gather your tools and materials. Make sure you have your measuring tape, utility knife, adhesive, and safety gear.

If you work with metal framing, wrap the frame with insulation like BlueTex™. You can run it vertically or horizontally, depending on your frame spacing.

Use double-sided tape or self-tapping screws with washers to hold the insulation in place until you finish the job.

Overlap the insulation runs by a few inches. Secure the overlaps with screws and washers for a tight fit.

If you want, tape the seams on the outside. This step helps reduce moisture or condensation at the seams.

Tip: Always check that the insulation covers the whole area. Gaps can let heat escape and lower your energy savings.

Installation for New Construction

If you are building a new home or adding a new section, you can install Thermal Break Strips as part of the process. Here’s a simple guide:

Prepare the metal frame structure. Make sure it is clean and ready for insulation.

Wrap the frame members with insulation, such as BlueTex™, to cover all surfaces.

Overlap each run of insulation. This step keeps the thermal break continuous.

Cover the walls and roofline completely. Don’t leave any gaps.

Tape the seams if you want extra air sealing.

Install hat channels or spacers over the insulation. These create an airspace between the insulation and the exterior cladding.

Secure everything with tape or screws, as recommended by the manufacturer.

Add the exterior cladding, like metal, wood, or siding, using the right screws.

Finish with trim pieces around corners, ridges, doors, and windows.

You can use this method for aluminum windows, curtain walls, and sliding doors. When you install Thermal Break Strips during construction, you create a strong and lasting barrier against heat loss.

Retrofitting Existing Structures

You can also add Thermal Break Strips to homes or buildings that are already built. Here’s how you can do it:

Remove any old weatherstripping or damaged insulation from the frames.

Clean the surfaces well. Dirt or old glue can stop the new strips from sticking.

Measure and cut the strips to fit your windows, doors, or curtain walls.

Peel off the backing if you use self-adhesive strips. Press the strip firmly into place. For other types, use a strong adhesive or screws.

Make sure the strips line up with the frame edges. Avoid gaps or overlaps.

For sliding aluminum doors and windows, check that the strips do not block movement.

Press along the length of each strip to make sure it sticks well

Note: If you retrofit, you may need customized strips for odd shapes or sizes. High strength strips work best for heavy doors or high-traffic areas.

Ensuring Air Sealing

A good installation blocks heat and stops air leaks. Here’s how you can make sure your home stays sealed:

Check all seams and joints after you install the strips. Look for gaps or loose spots.

Use foil tape or sealant to cover any small openings.

For curtain walls or large aluminum profiles, run your hand along the frame. If you feel air, add more sealant or adjust the strip.

Make sure the strips form a continuous line around the window or door. This step keeps the thermal barrier strong.

Test your work by closing the window or door. If you feel a draft, check the strip alignment.

Remember: A continuous thermal barrier and tight air seal help you save energy and keep your home comfortable.

Common Mistakes to Avoid

When you install Thermal Break Strips, you want the best results. Some mistakes can make your hard work less effective. Let’s look at the most common issues and how you can avoid them.

Misalignment

If you do not line up the strips with the frame, you leave gaps. Heat and cold can sneak through these spaces. You might see this problem with Thermal Break Strips for Aluminum Windows or Curtain Walls. Always double-check your measurements. Cut each strip to fit snugly. Press the strip along the full length of the frame. If you rush, you might end up with crooked strips.

Tip: Use a straight edge or ruler when you place the strips. This helps you keep everything in line.

Poor Adhesion

Sometimes, strips do not stick well. This can happen if the surface is dirty or oily. You might notice this with Sound Proof Thermal Break Strips or Thermal Break Strips for Sliding Aluminum Door and Window. If the strip peels off, it cannot block heat or noise. Always clean the area first. Use the right adhesive for your strip type. Some strips have self-adhesive backing. Press firmly and hold for a few seconds.

Make sure the surface is dry.

Avoid touching the sticky side with your fingers.

Store strips in a cool, dry place before use.

Overlooking Air Leaks

You might miss small gaps around the frame. Even tiny leaks can let in drafts. This is important for Thermal Break Strips for Noise Insulation of Building and High Strength Thermal Break Strips. After you finish, run your hand along the edges. Feel for moving air. If you find a leak, seal it with extra tape or caulk.

Remember: Careful work now means more comfort and savings later. Take your time and check your work as you go.

Maximizing Efficiency

Inspection Tips

You want your Thermal Break Strips to work their best. Regular checks help you spot problems early. Start by looking at all the places you installed strips. Use your hand to feel for drafts around windows, doors, and curtain walls. If you feel cold air, you might have a gap.

Take a flashlight and shine it along the edges. Light sneaking through means you need to seal that spot. For Thermal Break Strips for Aluminum Windows or Curtain Walls, check if the strips stay in place. Press gently to see if they move. If you find loose strips, press them back or add more adhesive.

Tip: Make a checklist for each room. Mark spots that need fixing. This helps you stay organized and keeps your home energy efficient.

Additional Energy-Saving Steps

You can boost your home's comfort with a few extra steps. Add weatherstripping to doors for better sealing. Use heavy curtains to block drafts from windows. Place rugs near doors to stop cold air from sneaking in.

Try using Sound Proof Thermal Break Strips if you live in a noisy area. These strips help block outside noise and keep your rooms quiet. For large windows or sliding doors, use High Strength Thermal Break Strips for extra durability.

Here’s a quick table of ideas:

When to Call a Pro

Sometimes, you need expert help. If you have big projects like installing Thermal Break Strips for Sliding Aluminum Door and Window or Customized Size Thermal Break Strips, a pro can make sure everything fits right. Call a professional if you see water leaks, mold, or damage around your frames. They have special tools and know how to fix tough problems.

Don’t wait if you feel overwhelmed. A pro can save you time and make sure your Thermal Break Strips for Noise Insulation of Building work as they should. Your home will feel more comfortable, and you will see the savings on your energy bill.

You can make your home more comfortable and save money by installing Thermal Break Strips. These strips help lower your energy bills and reduce noise from outside. Take a walk around your house and look for spots where heat might escape. Try adding Thermal Break Strips yourself or ask a pro for help. When you follow these steps, you set yourself up for long-term savings. Why not start a small project today and share your results with friends?

FAQ

How do I know which Thermal Break Strip to choose for my windows?

You should measure your window frame and check the product label. Thermal Break Strips for Aluminum Windows work best for metal frames. If you need a special size, look for Customized Size Thermal Break Strips.

Can I install Thermal Break Strips myself?

Yes, you can! Most strips come with easy instructions. You just need basic tools and a little patience. Many DIYers install Thermal Break Strips for Sliding Aluminum Door and Window without trouble.

Will Thermal Break Strips help with noise?

Absolutely! Sound Proof Thermal Break Strips reduce outside noise. You will notice a quieter room, especially if you live near a busy street or school.

How long do Thermal Break Strips last?

High-quality strips, like High Strength Thermal Break Strips, can last for many years. You should check them once a year to make sure they stay in place and work well.

Where else can I use Thermal Break Strips in my home?

You can use them on curtain walls, aluminum profiles, and even for Noise Insulation of Building. These strips help anywhere you want to stop heat loss or block sound.
